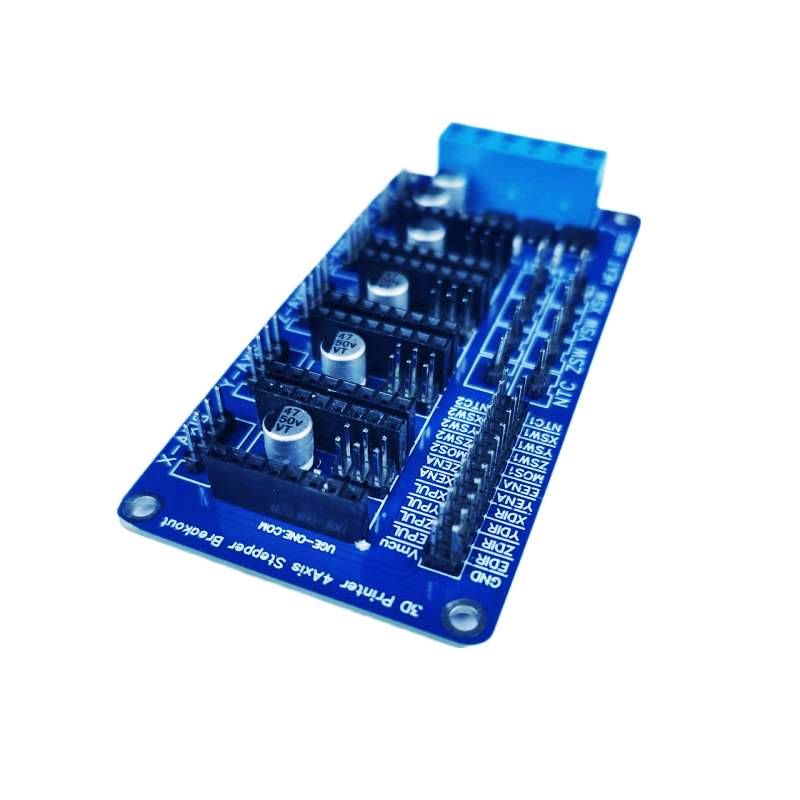

4 axis CNC and 3D Printer Ramps Breakout Driver Base Board

Description

4 axis CNC and 3D Printer Ramps Breakout Driver Base Board

This Product is Designed and Manufactured via UGE Electronics

Product Description:

This 4 axis CNC and 3D Printer Ramps Breakout Driver Base Board is designed for seamless integration with CNC machines and 3D printers, providing robust stepper driver compatibility and multiple power control features. Ideal for both hobbyists and professionals, the module simplifies wiring and expands the functionality of your projects.

Key Specifications:

1. 4-Axis Stepper Driver Compatibility:
   • Supports A4988, DRV8825, and other compatible stepper driver modules for X, Y, Z, and extruder axes.
   • 2.54mm standard headers for easy wiring to microcontrollers.
2. High-Current Heated Bed Control:
   • Includes 2 heated bed output ports, driven by high-current MOSFET transistors.
   • Suitable for up to 12V power supplies.
3. Fan Power Ports:
   • 2 fan ports, directly powered from the 12V supply.
   • Keeps your system cool during operation.
4. NTC Thermistor Inputs:
   • 2 thermistor input channels for temperature monitoring and control.
5. Limit Switch Inputs:
   • 3-axis limit switch headers for X, Y, and Z axes.
   • Ensure precise and safe operation.
6. Convenient Headers and Jumpers:
   • Standard 2.54mm pin headers for quick and easy connections to microcontrollers and other components.
   • Designed for fast wiring and modular setups.
7. Power Input:
   • Operates on a 12V DC supply, compatible with common 3D printer and CNC power sources.

This module is perfect for anyone building or upgrading a CNC machine or 3D printer, offering efficient wiring and flexible control for stepper drivers, heated beds, thermistors, fans, and limit switches. Let us know if you’d like further details!

 Special Reminder
     Pay Attention to the direction when installing, otherwise it may burn the driver or even the motherboard.
