4P SMD Tactile Switch push button YZA-041-1 3.2*4.2*2.5MM

Description

4P SMD Tactile Switch push button YZA-041-1 3.2*4.2*2.5MM

Product Description

The YZA-041-1 is a miniature surface-mount (SMD) tactile switch with 4 pins and a low profile (2.5 mm height). It is designed for applications like remote controls, portable electronics, or user input interfaces where space is limited.

Key Specifications & Features

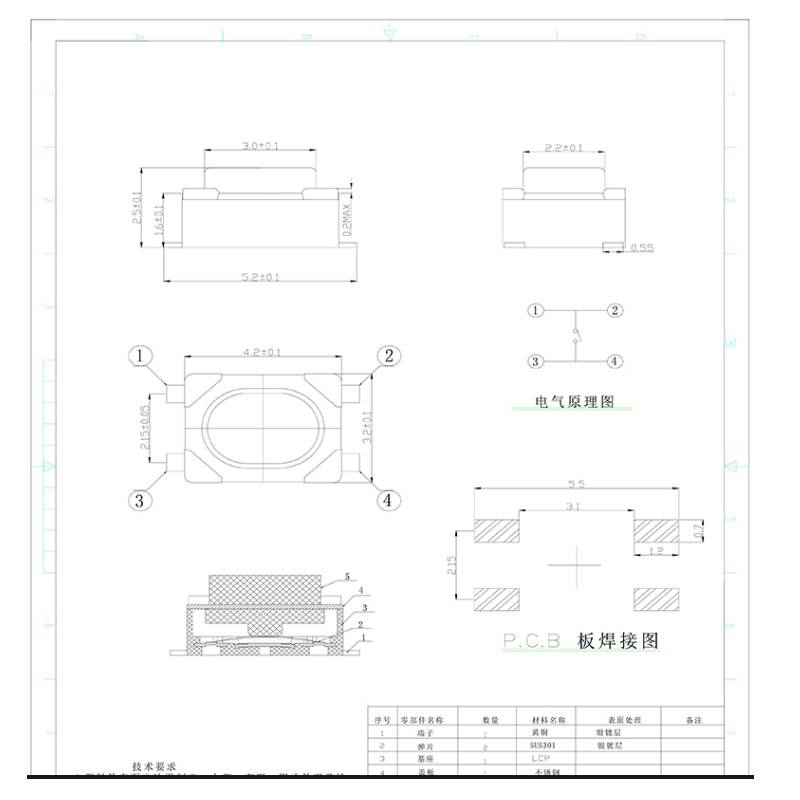

• Dimensions: 3.2 mm × 4.2 mm × 2.5 mm (footprint / body size)

• Electrical rating: DC 12 V, 0.5 A

• Contact resistance: ≤ 100 Ω

• Operation (actuation) force: ~ 160 gf

• Life expectancy: ~ 50,000 cycles

• Working (operating) temperature: –25 °C to +70 °C

• Insulation / protection level: IP00 (no ingress protection)

• Terminal type: SMD / PCB mount

• Rating: “Max current 0.5 A, Max voltage 12 V” for this series
