Description

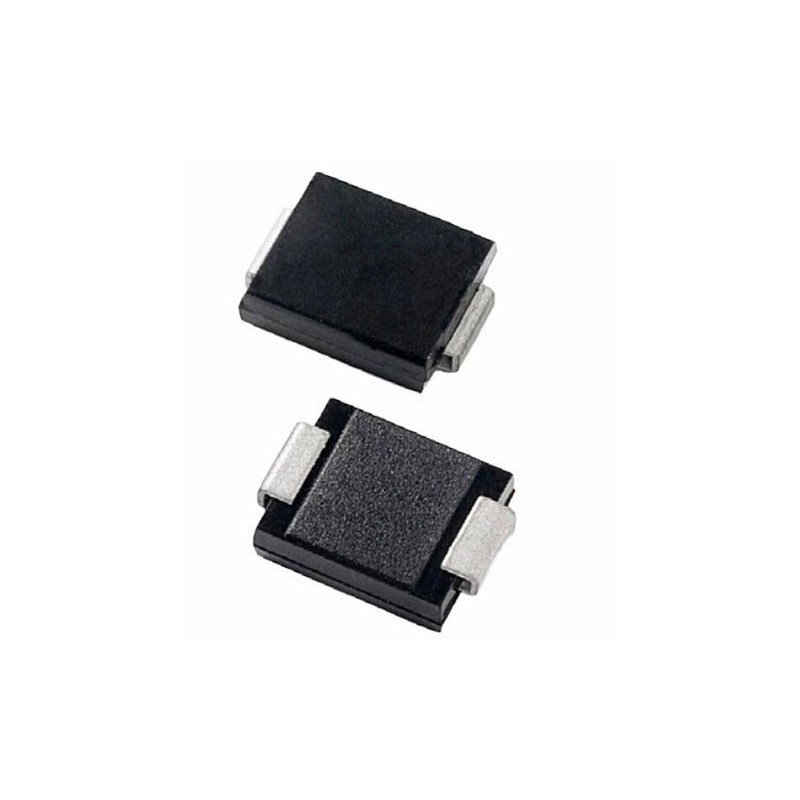

5.0SMDJ60A 60V 5000W Single TVS Diode
Product Overview
The 5.0SMDJ60A is a high-power unidirectional TVS (Transient Voltage Suppression) diode designed to protect sensitive electronic circuits from voltage spikes, lightning surges, ESD, and other transient overvoltage events. With a peak pulse power rating of 5000W, this device is ideal for industrial, telecom, automotive, and power supply protection applications.
Key Features
- Unidirectional TVS diode
- 5000W peak pulse power capability
- 60V reverse stand-off voltage
- Fast response time (<1 ps typical)
- Excellent clamping capability
- High surge current handling
- Low leakage current
- Surface-mount DO-214AB (SMC) package
- Glass passivated junction
- RoHS compliant
- Designed for ESD and surge protection
Technical Specifications
| Specification |
Details |
| Part Number |
5.0SMDJ60A |
| Product Type |
TVS Protection Diode |
| Configuration |
Unidirectional |
| Peak Pulse Power |
5000W |
| Reverse Stand-Off Voltage (VRWM) |
60V |
| Breakdown Voltage |
66.7V – 73.7V |
| Clamping Voltage |
96.8V |
| Peak Pulse Current (10/1000µs) |
51.7A |
| Peak Pulse Current (8/20µs) |
310A |
| Leakage Current |
5µA |
| Package Type |
DO-214AB (SMC) |
| Mounting Type |
Surface Mount (SMD/SMT) |
| Operating Temperature |
-55°C to +150°C |
| Polarity |
Unidirectional |
Applications
- Power supply protection
- Industrial electronics
- Telecom equipment
- RS-485 and communication interfaces
- Automotive electronics
- DC power lines
- Embedded systems
- Consumer electronics
- Surge and ESD protection circuits
Package Information
| Parameter |
Value |
| Package |
DO-214AB (SMC) |
| Mounting |
Surface Mount |
| Package Style |
SMC |
| Terminal Finish |
Solderable Terminals |
Advantages
- High surge absorption capability
- Protects against lightning and transient spikes
- Compact SMD package for space-saving PCB layouts
- Reliable high-speed protection
- Excellent long-term stability
Package Includes
- 1 × 5.0SMDJ60A 60V 5000W TVS Diode
Datasheet & Reference
Littelfuse Official Product Page
