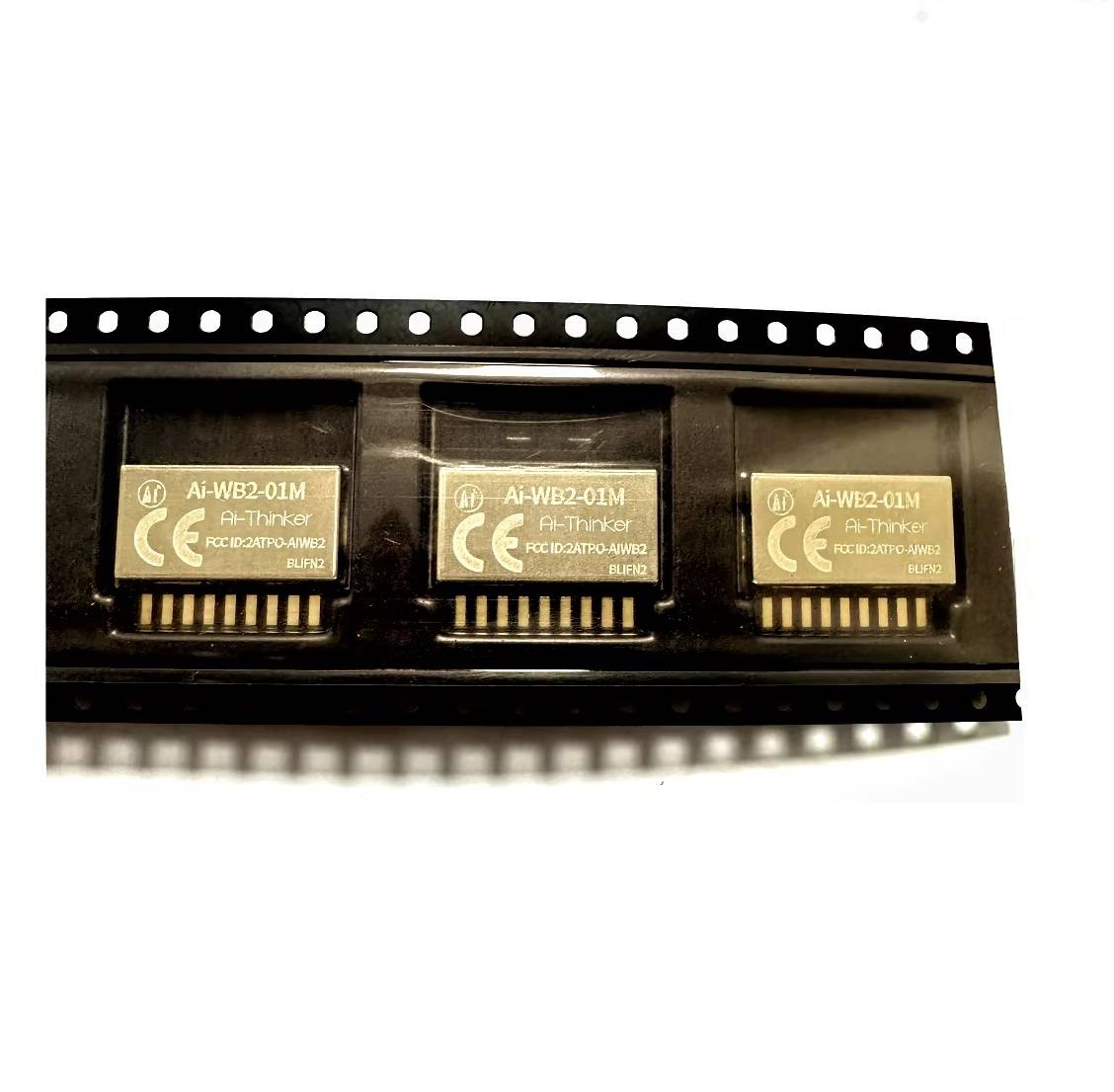

Ai-WB2-01M WiFi BLE5 serial port transparent transmission module

Description

Ai-WB2-01M WiFi BLE5 serial port transparent transmission module

Ai-WB2 modules share the following specifications:

• Wireless MCU – Bouffalo Lab BL602 32-bit RISC-V microcontroller @ up to 192 MHz with 276KB SRAM, 2.4 GHz WiFi 4 and Bluetooth 5.0 LE connectivity

• Storage – 2MB SPI flash
• WiFi range – Up to about 500 meters (typical)
• I/Os – SDIO, SPI, UART, I2C, IR receiver, PWM, ADC, DAC, and GPIO
• Power Supply – 2.7V to 3.6V > 500mA
• Power Consumption – 12μA in deep sleep mode
• Temperature Range – Operating: -40°C to 85°C; storage: -40°C to 125°C
• Datasheet

The company uploaded an SDK for the new modules and development kits on GitHub. That SDK is based on the official Bouffalo Lab bl_iot_sdk working on Windows and Linux
