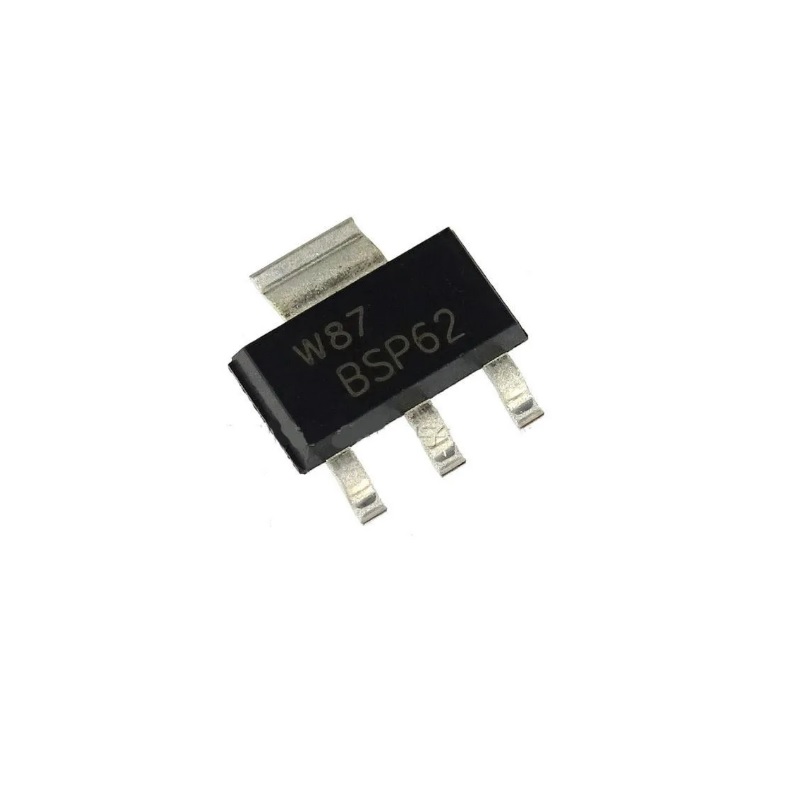

BSP62 PNP Darlington Transistor
Product Overview
The BSP62 is a PNP Darlington transistor designed for medium-power switching applications. It features high current gain, integrated resistor and diode protection, and comes in a compact SOT-223 surface-mount package suitable for industrial and general-purpose switching circuits.
Key Features
- PNP Darlington transistor
- High DC current gain (hFE)
- Integrated resistor and protection diode
- Low saturation voltage
- Compact SOT-223 package
- Suitable for medium-power switching
- Surface-mount device (SMD)
- High reliability and stable performance
Technical Specifications
| Specification |
Details |
| Part Number |
BSP62 |
| Transistor Type |
PNP Darlington |
| Package Type |
SOT-223 |
| Mounting Type |
Surface Mount |
| Collector-Emitter Voltage (VCEO) |
-80 V |
| Collector Current (IC) |
-0.5 A to -1 A |
| Peak Collector Current |
-2 A |
| DC Current Gain (hFE) |
1000 to 2000 |
| Power Dissipation |
1.25 W |
| Transition Frequency (fT) |
200 MHz (typ.) |
| Operating Temperature |
-65°C to +150°C |
| Polarity |
PNP |
Applications
- Relay drivers
- Solenoid drivers
- Lamp drivers
- Industrial switching circuits
- Motor control circuits
- Embedded systems
- General-purpose power switching
Package Information
| Parameter |
Value |
| Package |
SOT-223 |
| Pin Count |
4 Pins |
| Dimensions |
Approx. 6.5 × 3.5 × 1.65 mm |
| Package Style |
SC-73 / SOT-223 |
Advantages
- Very high current amplification
- Simplifies low-current control of higher-current loads
- Integrated protection components reduce external parts
- Good thermal performance with SOT-223 package
Package Includes
- 1 × BSP62 PNP Darlington Transistor (SOT-223)
Datasheet & Reference
Nexperia Product Page
BSP62 Datasheet PDF
