Name: D-sub 15 Female VGA Connector PCB Mount
SKU: O6-6-Dsub15-F-VGA
Price: 15.000 EGP
Availability: InStock

D-sub 15 Female VGA Connector PCB Mount

Model: Dsub15-F-VGA

SKU: O6-6-Dsub15-F-VGA

In Stock

EGP 15.000

In Stock

Description

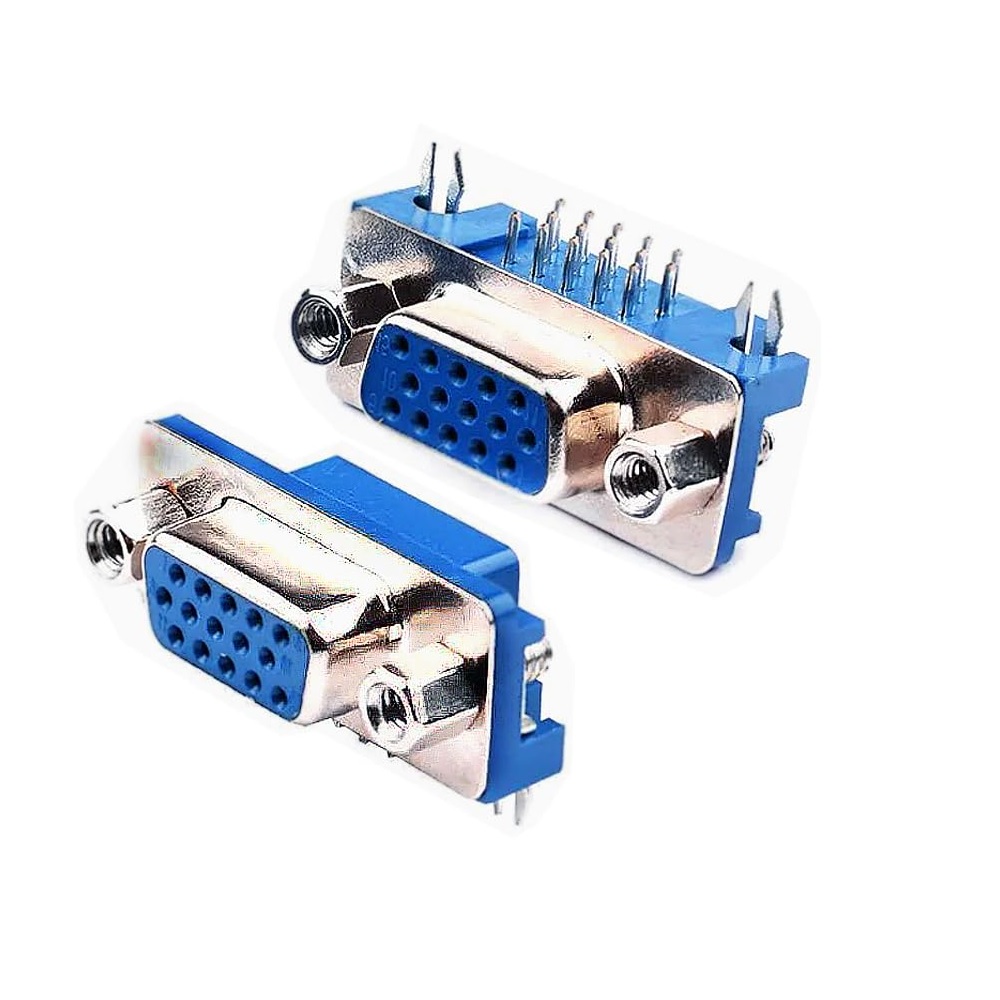

Here are the consolidated specifications for a standard D-Sub 15-pin Female (HD15) VGA PCB-Mounted Connector in Blue.

Parameter	Value	Notes
Connector Type	D-Sub, High Density (HD15)	Standard VGA connector
Gender	Female / Receptacle	Sockets for receiving pins
Number of Positions	15	Arranged in 3 rows
Mounting Type	PCB Mount / Through-Hole	Designed for direct soldering to a circuit board
Orientation	Right Angle	Pins bend 90° for board edge mounting
Housing Color	Blue	The industry-standard color for VGA ports

Parameter	Value	Notes
Current Rating	3 A	Typical rating for standard signal connectors
Voltage Rating	250 V	Common for this class of D-Sub
Contact Resistance	20 – 30 mΩ max
Insulation Resistance	1000 MΩ min
Dielectric Withstanding	500 V AC / 1 min
Operating Temperature	-55°C to +105°C	Industrial temperature range

Pin Layout: This is a High Density (HD15) connector, meaning the 15 pins are arranged in three rows (5 pins each) within the same shell size as a standard 9-pin D-Sub .
VGA Compatibility: This is the standard connector used for VGA (Video Graphics Array) signals, supporting resolutions up to SXGA .
Board Mounting: The right-angle design allows the connector to sit flush against the edge of a PCB, saving vertical space. Some variants include board locks or grounding tabs to secure the connector during soldering
