ESP32P4-M3-C6 16MB Flash 32MB PSRAM Wi-fi 6 Core Module

Description

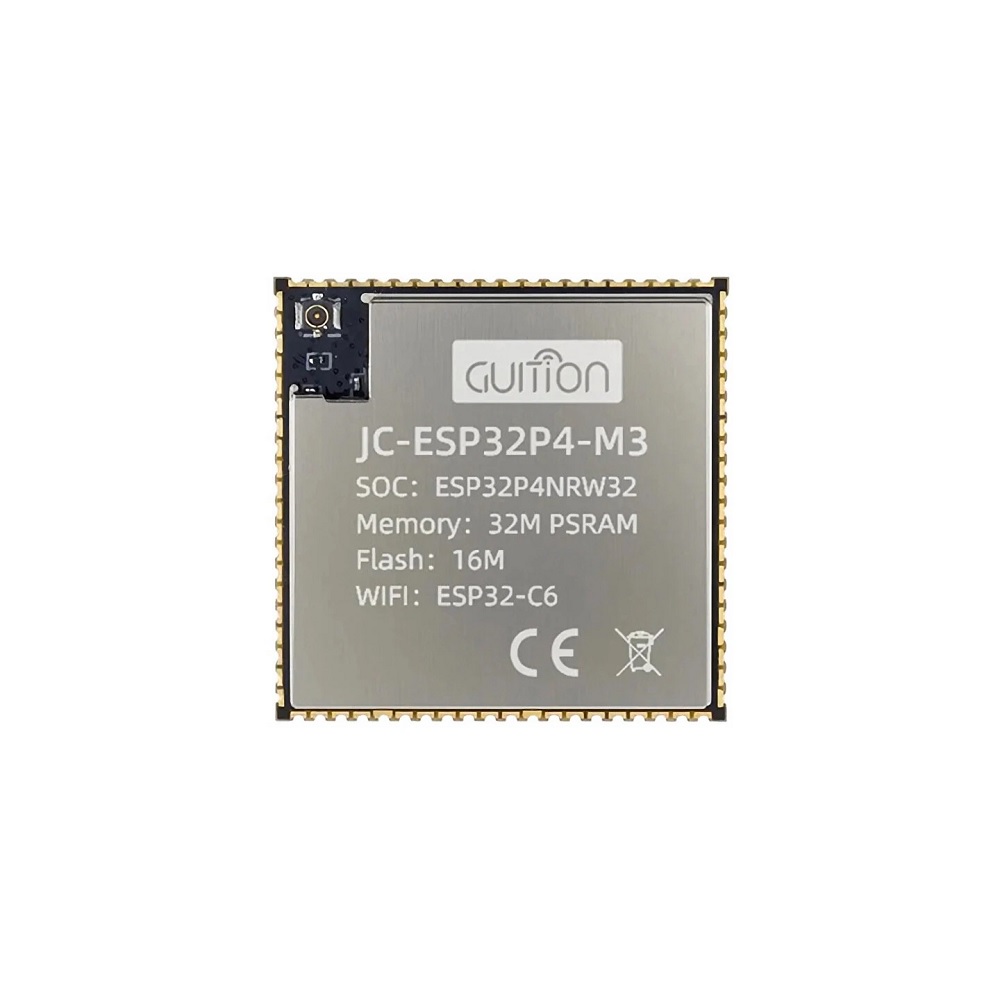

GUITION JC-ESP32P4-M3-C6 Core Module

The GUITION JC-ESP32P4-M3-C6 is a compact high-performance ESP32-P4 core module integrating an ESP32-P4 application processor with an ESP32-C6 wireless connectivity chip. It combines 16MB NOR Flash, 32MB PSRAM, Wi-Fi 6, and Bluetooth 5 with high-speed multimedia interfaces including MIPI-CSI, MIPI-DSI, and USB 2.0 OTG.

Technical Specifications

• Model: GUITION JC-ESP32P4-M3-C6
• Main MCU: ESP32-P4
• Wireless MCU: ESP32-C6
• CPU: Dual-core RISC-V processor
• Main Frequency: Up to 360 MHz
• PSRAM: 32MB, stacked in the chip package
• Flash: 16MB NOR Flash
• Operating Voltage: 3.3V
• Wireless: Wi-Fi 6 via ESP32-C6
• Bluetooth: Bluetooth 5
• ROM:
  • 128KB HP ROM
  • 16KB LP ROM
• SRAM:
  • 768KB HP L2MEM
  • 32KB LP SRAM
  • 8KB TCM

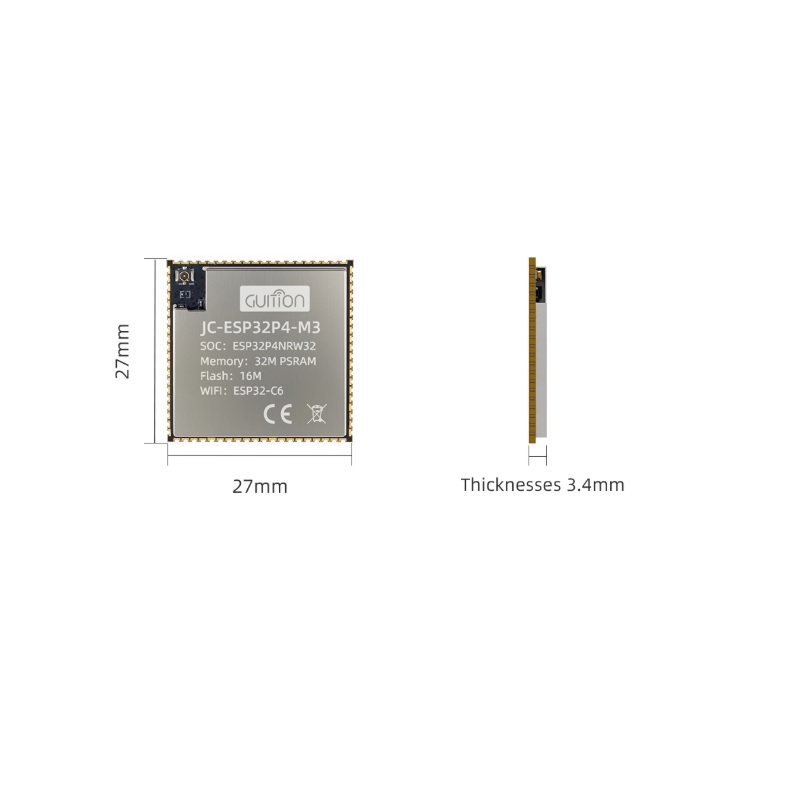

• Module Dimensions: 27 × 27 × 3.4 mm
• Operating Temperature: -20°C to +70°C

Interfaces

The module provides a wide range of interfaces for embedded, multimedia, and IoT applications:

• MIPI-CSI camera interface
• MIPI-DSI display interface
• USB 2.0 OTG
• SDIO 3.0
• SPI
• I2C
• I2S
• UART
• ADC
• LED PWM
• MCPWM
• RMT
• TWAI / CAN
• Additional ESP32-P4 peripheral interfaces

Multimedia Capabilities

The ESP32-P4 platform is designed for higher-performance multimedia applications and supports features including MIPI camera/display connectivity and H.264 video encoding. GUITION specifies support for displays up to 800 × 1280 resolution.

Security Features

The ESP32-P4 includes hardware security features such as:

• Digital signature peripheral
• Dedicated key management unit

These features can be used to implement secure embedded applications and protect sensitive operations.

Typical Applications

• Smart displays and HMI systems
• AI and multimedia devices
• Camera applications
• IoT gateways
• Industrial control interfaces
• Touchscreen controllers
• Smart-home devices
• Embedded Linux-like/high-performance MCU applications
• Wi-Fi 6 connected devices
• USB OTG applications

Compact Form Factor

With a 27 × 27 mm footprint and integrated 16MB Flash + 32MB PSRAM, the JC-ESP32P4-M3-C6 provides substantial processing and memory resources in a compact module suitable for integration into custom PCBs.
