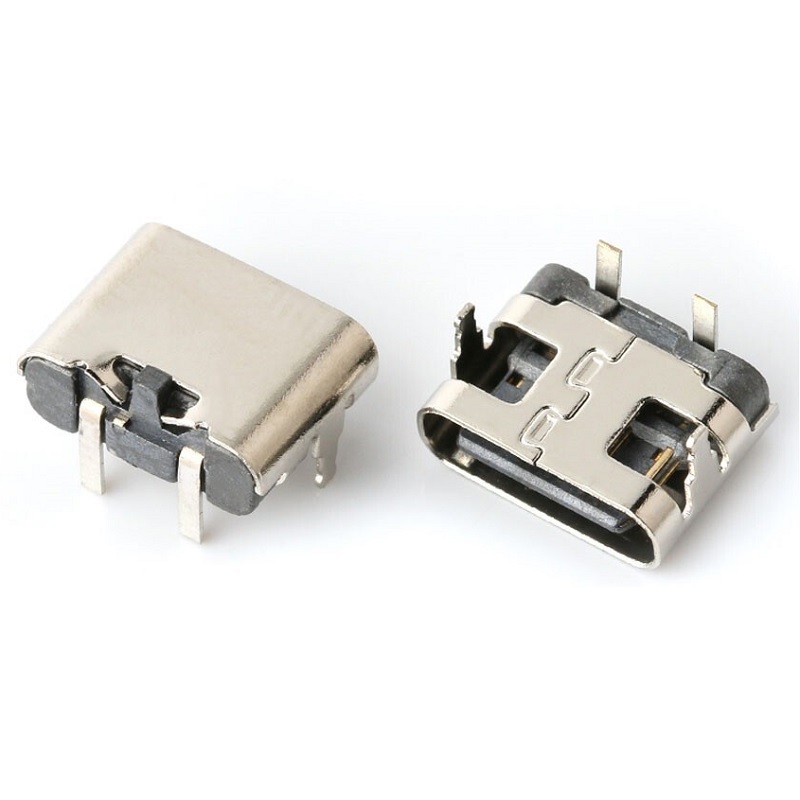

Female USB Type C Connector horizontal PCB Mount 2Pin

Description

Overview

This female USB Type-C connector is a compact, board-mount receptacle designed primarily for power and charging applications. Its horizontal orientation allows the connector to be mounted at the edge of a PCB for convenient access.

The 2-pin configuration provides power-only connectivity, making it a simple alternative to larger multi-pin USB Type-C connectors when USB data communication is not required.

Key Features

• Female USB Type-C receptacle
• 2-pin power-only configuration
• Horizontal PCB mounting
• Compact design
• Surface-mount/PCB-mount construction
• Supports reversible USB Type-C plug insertion
• Suitable for power input and charging applications
• Suitable for compact electronic projects and PCB designs

Technical Specifications

Important: Standard USB Type-C receptacles normally have multiple contacts, even when used for power-only applications. Some power-only connectors expose only two electrical connections externally, while internally the Type-C receptacle may use multiple VBUS/GND contacts. Therefore, the exact current and voltage ratings depend on the specific connector manufacturer and part number. Power-only Type-C receptacles are commonly available in horizontal PCB-mount versions.

Applications

• USB Type-C power input
• Battery charging ports
• DIY electronics projects
• Development boards
• IoT devices
• Embedded systems
• Portable electronics
• Power supply interfaces
• PCB-mounted charging connectors
• Replacement for conventional DC power connectors

What’s Included

• 1 × Female USB Type-C Horizontal PCB-Mount Connector

Notes

• This connector is intended for power/charging only and does not provide USB data communication.
• The connector accepts a standard reversible USB Type-C plug.
• Before PCB assembly, verify the footprint and mechanical dimensions against the exact connector you are using.
