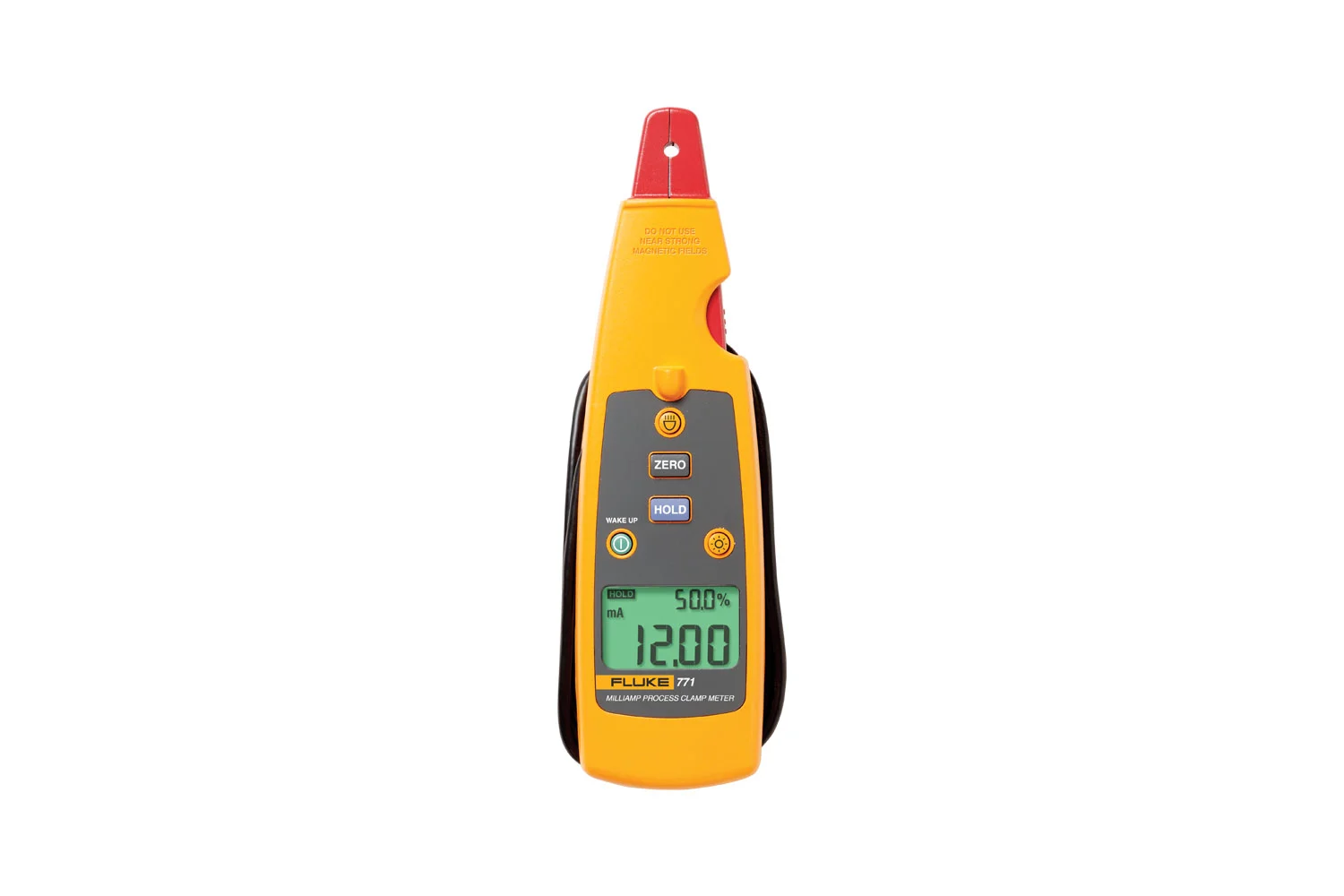

Fluke 771 Milliamp Process Clamp Meter

Model: Fluke 771
SKU: Tar-st-fluke771
In Stock
EGP 68,750.000 exc. vat
In Stock

Other people want this. 3 people have this in their carts right now.
Brand:Fluke

Description

Fluke 771 Milliamp Process Clamp Meter

The Fluke 771 delivers all the basic functionality you would expect in a milliamp clamp meter.

Fluke 771 Milliamp Process Clamp Meter



Fluke 771 Milliamp Process Clamp Meter

Save time by measuring 4-20 mA signals without breaking the loop

The Fluke 771 delivers all the basic functionality you would expect in a milliamp clamp meter. It measures 4-20 mA signals without “breaking the loop,” allowing you to measure low level DC current without having to take systems offline for troubleshooting, saving downtime and money. You can also use it to measure output signals from transmitters without breaking the loop when maintaining and troubleshooting process and automation equipment. This saves time and avoids disrupting critical processes so you can avoid expensive downtime. You can also measure 10 to 50 mA signals in older control systems using the 99.9 mA range.

Added convenience

Designed to make troubleshooting easier, the Fluke 771 includes a detachable clamp that can be attached to the wire you’re testing while you move the meter—connected by the extension cable—to a better viewing position. This is especially helpful for taking readings in tight locations. With the dual backlit display showing both the mA measurement and the percent of a 4 to 20 mA span you can quickly understand what your system is doing, and a built-in LED spotlight lets you illuminate hard to see wire in dark enclosures. You can also capture and display changing measurements using the Hold function making it easier to verify and record measurements

Specifications: Fluke 771 Milliamp Process Clamp Meter

Specifications
Diameter of measurable conductor0.177 in or 4.5 mm max
Operating temperature-10 to 50°C
Storage temperature-25 to 60°C
Operating humidity< 90% @ < 30°C, < 75% @ 30 to 55°C
Operating altitude0 to 2000 m
IP ratingIP 40
Size59 x 38 x 212 mm (2.32 x 1.5 x 8.35 in)
Weight260 G, (9.1 oz)
VibrationRandom 2 g, 5 to 500 Hz
Shock1 m drop test (except the jaw)
EMI/RFIMeets EN61326-1
For current measurement w/ JAW, add 1 mA to
specification for EMC field strengths of 1 V/m up to 3 V/m.
Temperature coefficient0.01% °C
(< 18°C or > 28°C)
Power, battery life(2) AA 1.5 V Alkaline, IEC LR6, 40 hours typical
WarrantyThree years for electronics
One year for cable and clamp assembly
Functional Specifications
mA measurement
(measured by clamp)
Resolution / range0 to 20.99 mA
Accuracy0.2% + 2 counts
Resolution / range21.0mA to 100.0 mA
Accuracy1% + 5 counts

Includes:

  • Soft Carrying Case
  • Users Manual
