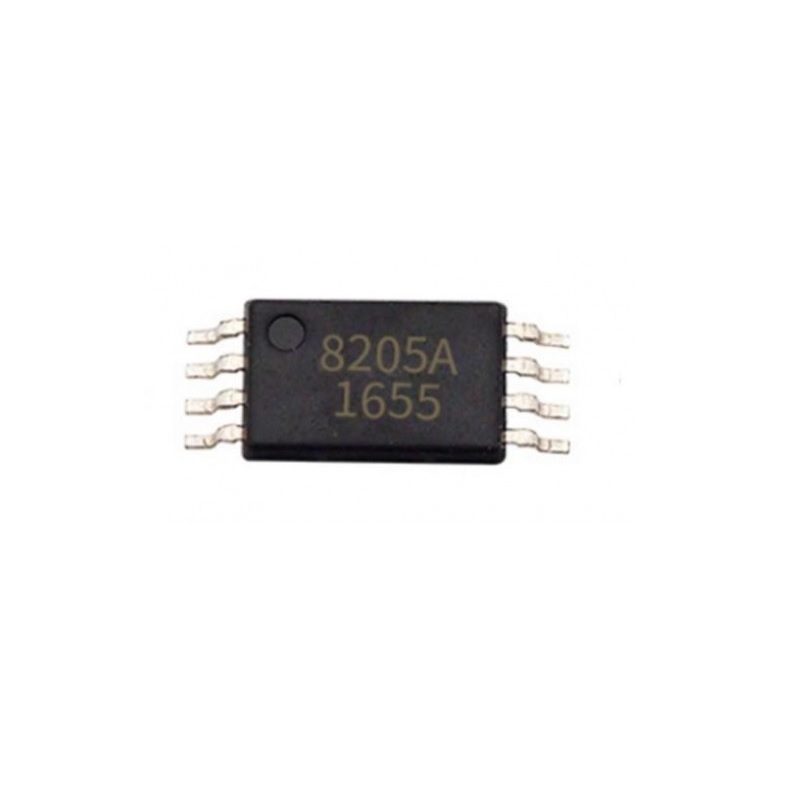

FS8205A lithium battery protection Dual Mosfet IC TSSOP8

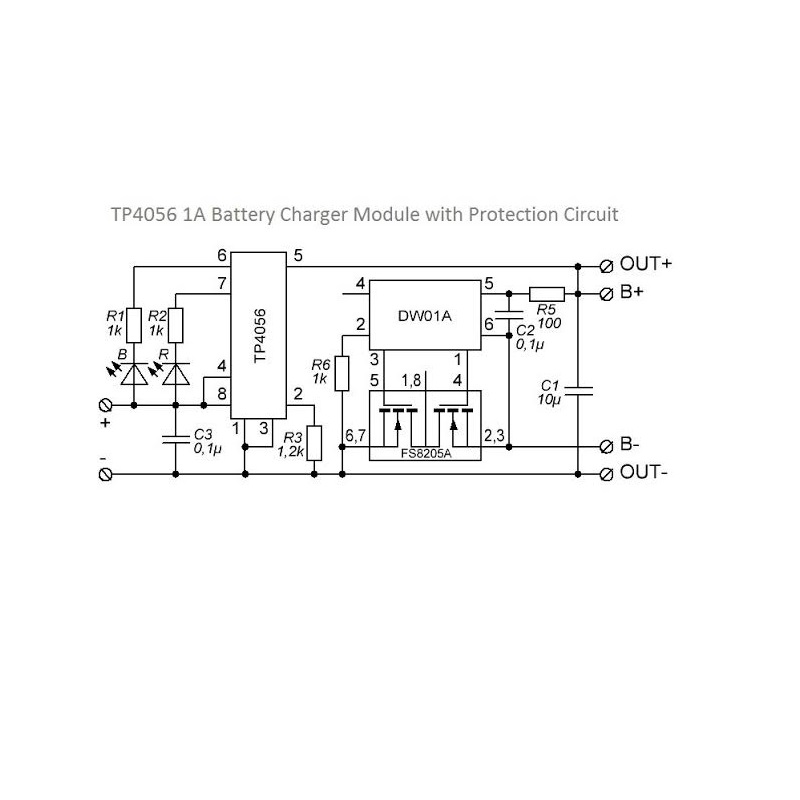

FS8205S CIRCUIT
FS8205A lithium battery protection Dual Mosfet IC TSSOP8 - Image 3

FS8205A lithium battery protection Dual Mosfet IC TSSOP8

Model: FS8205S
SKU: FS8205A
In Stock
EGP 15.000
In Stock
SKU: FS8205A Categories: , Tags: , , , , , , ,
Brand:Chinese

Description

The FS8205A Dual N-Channel MOSFET, which is commonly used for lithium battery protection circuits.

Key Specifications

Parameter Value Notes
Configuration Dual N-Channel, Common Drain Two MOSFETs in one package for battery protection
Drain-Source Voltage (V<sub>DSS</sub>) 20V Maximum voltage across the MOSFET
Continuous Drain Current (I<sub>D</sub>) 6A (at 25°C) / 4.8A (at 70°C) Current handling capability
Pulsed Drain Current (I<sub>DM</sub>) 24-30A Short duration current spikes
R<sub>DS(ON)</sub> @ V<sub>GS</sub>=4.5V 19.5-25mΩ (typ) On-resistance at standard gate voltage
R<sub>DS(ON)</sub> @ V<sub>GS</sub>=2.5V 25-38mΩ (typ) On-resistance at low gate voltage
Gate Threshold Voltage (V<sub>GS(th)</sub>) 0.5-1.2V (typ) Voltage to turn on the MOSFET
Power Dissipation (P<sub>D</sub>) 1.5W (at 25°C) Maximum power dissipation
Operating Temperature -55°C to +150°C Junction temperature range
Package TSSOP-8 8-pin plastic package

Application & Pinout Notes

The FS8205A is a dual N-channel enhancement mode MOSFET specifically designed for lithium battery protection and switching applications . Its common-drain configuration makes it ideal for pairing with battery protection ICs like the DW01 to create a complete protection circuit .

The TSSOP-8 pinout typically follows this common configuration :

  • Pin 1 & 8: Common Drain (D)

  • Pin 4: Gate 1 (G1)

  • Pin 5: Gate 2 (G2)

  • Pin 2 & 3: Source 1 (S1)

  • Pin 6 & 7: Source 2 (S2)

Additional information

Weight 0.005 kg

Brand

Chinese

Chinese
Chinese
