FT64E0A5-TRB Enhanced RISC 8-bit architecture Microcontroller

Description

Overview

The FT64E0A5-TRB is an enhanced 8-bit RISC microcontroller from Fremont Micro Devices (FMD), designed for cost-sensitive embedded applications requiring integrated analog, timing, PWM, communication, and control peripherals.

The device features up to 20 I/O pins, a 12-bit ADC, multiple PWM channels, SPI, I²C, and two USART interfaces, as well as an integrated operational amplifier. It supports operating voltages from approximately 1.9 V to 5.5 V and is housed in a compact TSSOP-20 package.

Key Features

• Enhanced 8-bit RISC CPU architecture
• 49 RISC instructions
• Supports 1T, 2T, and 4T instruction cycles
• Up to 16 MHz @ 1T
• Up to 20 pins
• 10K × 14-bit Program Memory
• 1 KB RAM
• 128 × 8-bit Data EEPROM
• 12-bit ADC
• Up to 7 PWM channels
• SPI interface
• I²C interface
• 2 × USART
• Integrated operational amplifier
• Multiple hardware timers
• Watchdog Timer
• Low-voltage reset and detection
• In-Circuit Programming (ISP)
• On-Chip Debugging (OCD)
• TSSOP-20 package

Technical Specifications

The FT64E0Ax family documentation specifies a 5.5 V maximum VDD and supports up to 20-pin versions; the FT64E0A5 is available in TSSOP-20.

ADC

The integrated ADC provides:

• 12-bit resolution
• Up to 7 + 1 + 1 channels
• Internal reference options
• External reference support
• Automatic threshold comparison
• ADC clock up to 2 MHz for the specified 12-bit accuracy

This makes the MCU suitable for applications requiring analog measurement and control.

PWM & Timers

The MCU provides up to 7 PWM channels with features including:

• Independent duty-cycle control
• Configurable polarity
• Capture/compare/PWM functionality
• Complementary PWM outputs
• Dead-time control
• Center-aligned and edge-aligned operation
• One-shot operation
• Automatic fault/brake functions

The integrated timers include a 16-bit Watchdog Timer, 16-bit Timer1, 16-bit Timer2, and 8-bit Timer4.

Communication Interfaces

The FT64E0A5 integrates several serial communication peripherals:

• SPI
• I²C
• USART1
• USART2

This allows the device to interface with sensors, displays, EEPROMs, motor-control peripherals, communication modules, and other digital devices.

Integrated Analog Features

In addition to the ADC, the device integrates an operational amplifier with offset calibration capability. The amplifier output can be routed to an I/O pin or ADC input, making the MCU suitable for basic analog signal-conditioning applications.

Power & Programming

The FT64E0A5 can operate from a wide supply range suitable for both low-voltage and 5 V embedded systems.

Programming & Debugging

The device supports:

• ISP (In-System Programming)
• On-Chip Debugging (OCD)
• Hardware breakpoints
• Single-step debugging
• Pause and resume debugging
• Soft reset

An appropriate FMD programming/debugging tool is required for development and programming.

Applications

• Embedded control systems
• Consumer electronics
• Sensor interfaces
• Motor control
• LED control
• Battery-powered devices
• Power management
• Industrial control
• Appliance control
• Analog measurement systems
• PWM-based applications
• Small robotics projects
• Low-cost custom electronics
• General-purpose MCU applications

What’s Included

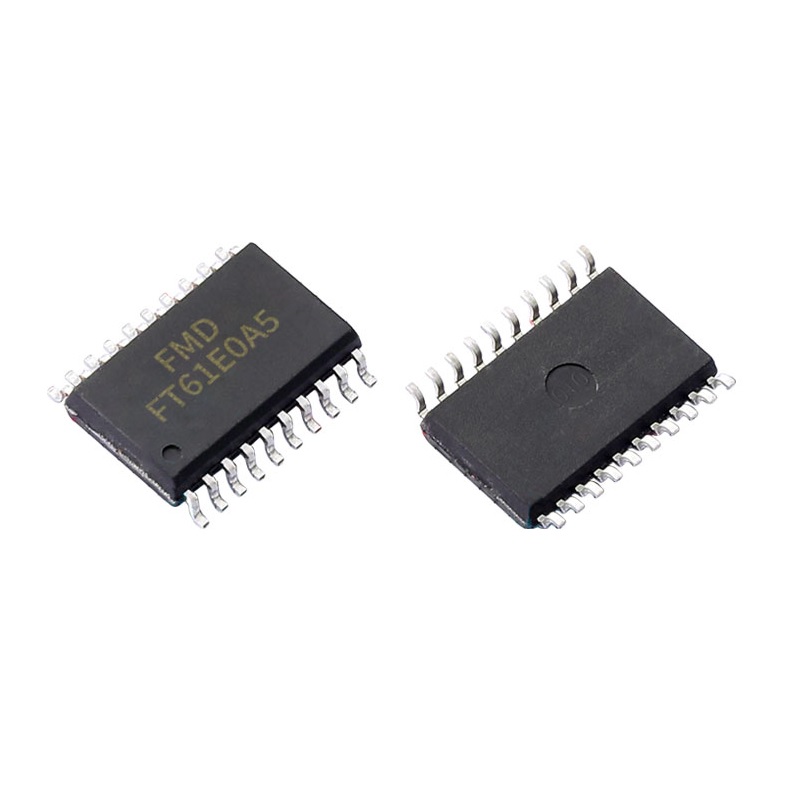

• 1 × FMD FT64E0A5-TRB 8-bit Microcontroller
• Package: TSSOP-20
• Surface-mount component

Notes

• FT64E0A5-TRB is the TSSOP-20 version of the FT64E0A5 device family.
• The FT64E0A5 belongs to FMD’s FT64E0Ax enhanced 8-bit RISC MCU family.
• The device includes EEPROM data memory, making it useful for applications that need non-volatile storage for calibration values, configuration parameters, or user settings.
• Actual available peripheral functions depend on pin multiplexing and the selected operating configuration; consult the manufacturer’s datasheet before final PCB design.
• This is an MCU IC only; no development board or programming/debugging tool is included.
