Description

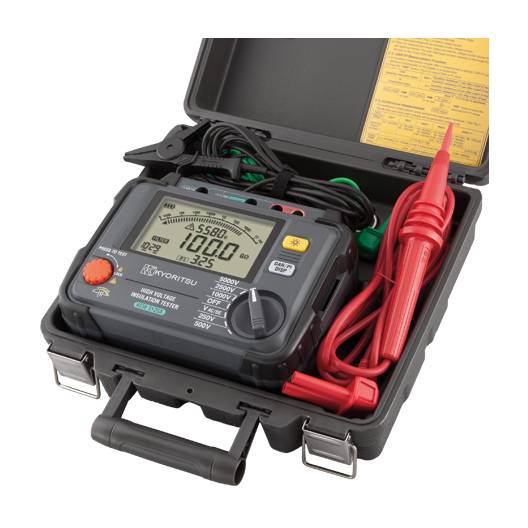

kyoritsu KEW 3125A
• Insulation Resistance up to 1TΩ
• Short-Circuit Current up to 1.5mA
• Wide Test Voltage from 250V to 5000V
• Diagnosis Function of PI and DAR
• Newly-designed alligator clip
• It comes with a tough hard case
• Filter function reduces noise interference for obtaining stable measurement
• Large display with Bar Graph indication and backlight
• Live voltage warning
• Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V
Insulation resistance
| Rated voltage |
250V |
500V |
1000V |
2500V |
5000V |
| Accuracy |
0.0 – 100.0MΩ |
0.0 – 99.9MΩ
80 – 1000M Ω |
0.0 – 99.9MΩ
80 – 999MΩ
0.80 – 2.00G Ω |
0.0 – 99.9MΩ
80 – 999MΩ
0.80 – 9.99GΩ
8.0 – 100.0GΩ |
0.0 – 99.9MΩ
80 – 999MΩ
0.80 – 9.99GΩ
8.0 – 99.9GΩ
80 – 1000GΩ |
| ±5%rdg±3dgt |
±5%rdg±3dgt |
±5%rdg±3dgt |
±5%rdg±3dgt |
±5%rdg±3dgt
±20%rdg
(100GΩ or more) |
| Short circuit current |
1.5mA |
| Output voltage |
|
|
| Accuracy |
±10% |
-10 – +20% |
0 – +20% |
| Monitor |
±10%rdg±20V |
Voltage measurement
| Measuring range |
AC: 30 – 600V (50/60Hz), DC: ±30 – ±600V |
| Accuracy |
±2%rdg±3dgt |
General
| Applicable standards |
IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2,
IEC 61010-031, IEC 61326-1, 2-2 |
| Power source |
DC12V : LR14/R14 × 8pcs |
| Dimensions |
177 (L) × 226 (W) × 100 (D) mm
300 (L) × 315 (W) × 125 (D) mm (Hard case) |
| Weight |
3125A: 1.9kg approx. (including batteries)
4kg approx. (including accessories) |
| Included Accessories |
7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m),
8019 (Hook type prod), 9180 (3025A Hard case), 9181 (3125A Hard case),
LR14 (Alkaline battery size C) × 8, Instruction manual |
| Optional Accessories |
7168A (Line probe with alligator clip: 3m),
7253 (Longer line probe with alligator clip: 15m),
8302 (Adaptor for recorder) |
Brand
KYORITSU
Kyoritsu Electrical Instrument
KYORITSU brand
