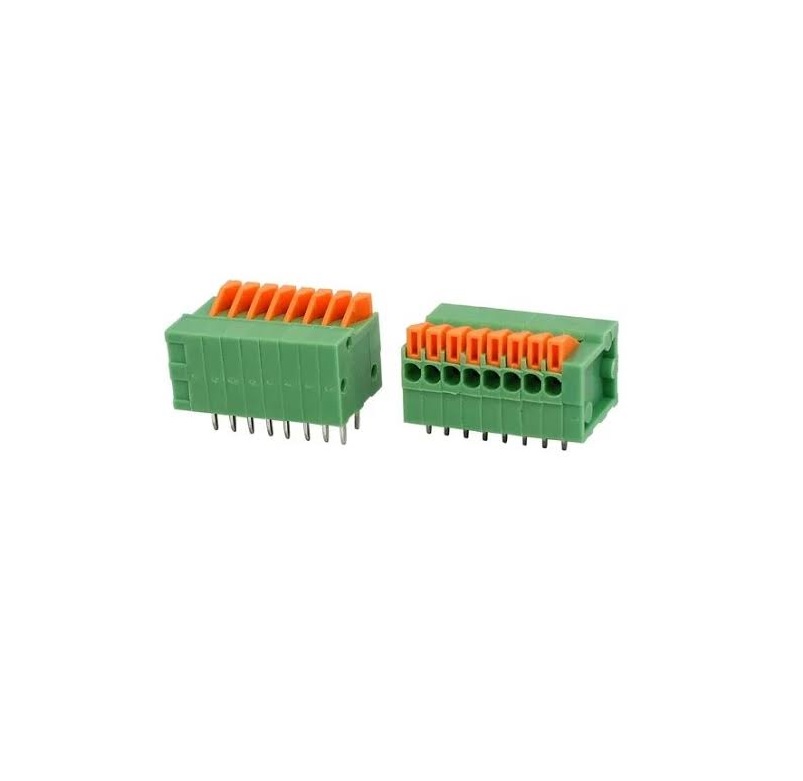

JIEKE-141R 8 Way mini screwless fast spring terminal block 2.54mm pitch

Description

The JIEKE-141R 2.54mm 8 Way is a spring-loaded, screwless terminal block designed for quick, tool-free wire connections on PCBs.

Key Specifications

Design Notes

• Spring-Clamp Mechanism: This terminal block uses a push-button or spring lever to clamp the wire, eliminating the need for screws and speeding up assembly .

• PCB Footprint: As a through-hole component with a 2.54mm pitch, it requires a compatible PCB footprint. EasyEDA has a reference footprint available under the name SPRING_TERMINAL_8_WAY .

• Wire Stripping: The recommended strip length for insertion is approximately 11mm
