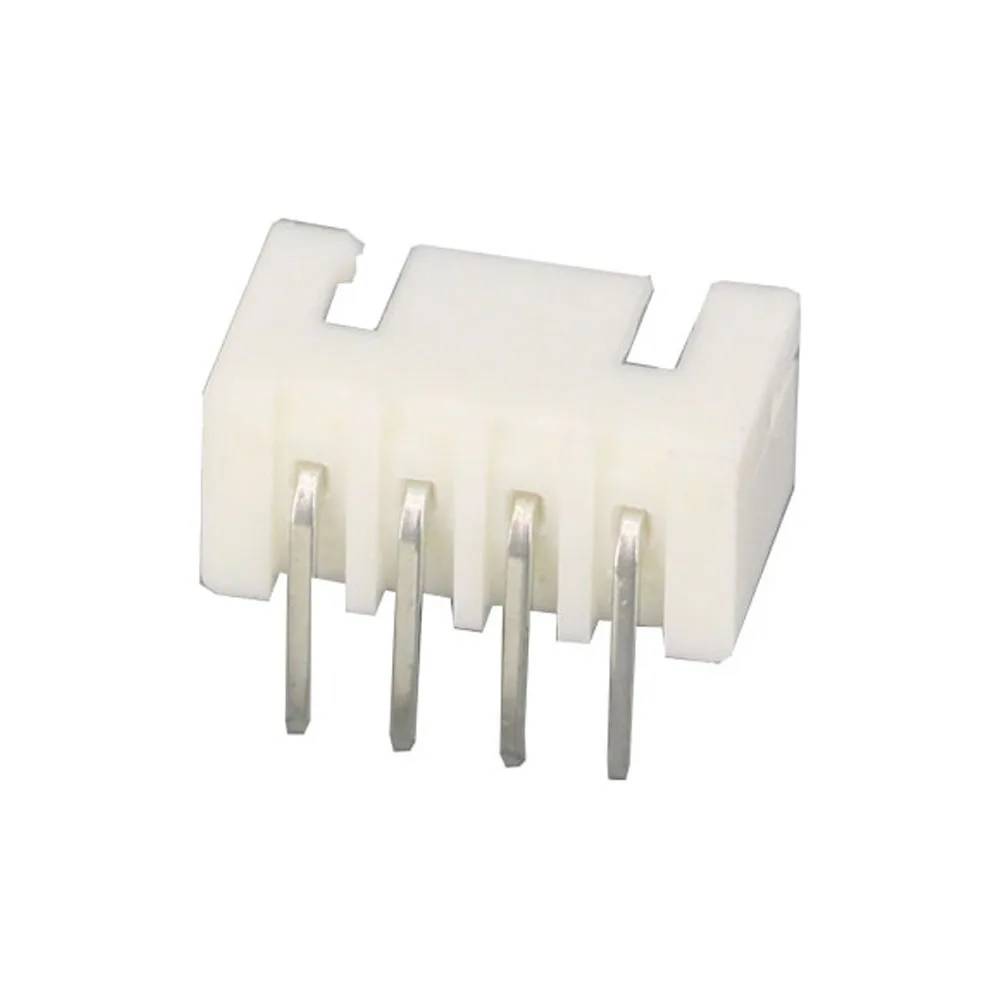

JST Connector Male Polarized XH2.54 4P Right Angle

Description

XH2.54 4-Pin Right Angle Connector Specifications:

The XH2.54 4-pin right-angle connector is a common type of wire-to-board connector. These connectors are widely used in consumer electronics, industrial applications, and various other electronic devices.

General Specifications:

• Series: XH
• Type: Wire-to-Board Connector
• Orientation: Right Angle
• Number of Pins: 4
• Pitch: 2.54 mm (0.1 inches)
• Mounting Type: Through-Hole

Electrical Characteristics:

• Current Rating: 3A (maximum)
• Voltage Rating: 250V AC/DC
• Contact Resistance: ≤ 20 mΩ
• Insulation Resistance: ≥ 1000 MΩ at 500V DC
• Dielectric Withstanding Voltage: 1000V AC for 1 minute

Mechanical Characteristics:

• Contact Material: Phosphor Bronze
• Contact Plating: Tin-plated
• Housing Material: Nylon 66, UL94V-0 (flame retardant)
• Insertion Force: ≤ 3.92 N
• Withdrawal Force: ≥ 0.98 N
• Durability: 50 cycles (mating and unmating)

Environmental Characteristics:

• Operating Temperature Range: -25°C to +85°C

Features:

• Right-Angle Design: Suitable for applications where space-saving and horizontal connections are required.
• High Current and Voltage Rating: Supports up to 3A and 250V, making it suitable for a variety of applications.
• Durable Materials: Made with phosphor bronze contacts and nylon housing for reliability and longevity.
• Flame Retardant: The housing material meets UL94V-0 standards for flame resistance.
• Standard Pitch: 2.54 mm pitch makes it compatible with a wide range of standard PCB layouts.

Applications:

• Consumer Electronics
• Industrial Control Systems
• Telecommunications Equipment
• Home Appliances
• Automotive Electronics
• Robotics and Automation

Usage Guide:

1. PCB Layout: Design the PCB with a 2.54 mm pitch to match the connector pin spacing.
2. Mounting: Insert the right-angle connector through the PCB holes and solder the pins to ensure a secure connection.
3. Wiring: Use compatible XH series wire housings and crimp terminals to connect wires to the connector.
4. Mating: Ensure correct orientation and alignment when mating the wire housing to the board connector.
5. Testing: Verify electrical continuity and mechanical stability after assembly to ensure proper installation.

For detailed instructions and best practices, refer to the manufacturer’s datasheet and application notes when using the XH2.54 4-pin right-angle connector.
