JY02A Brushless DC Motor Driver IC SSOP-20

Description

JY02A Brushless DC Motor Driver IC SSOP-20

Key Specifications

1. General Features

• Motor Type: 3-phase Sensorless BLDC Motor Driver
• Control Method: Hall-less (Sensorless) commutation using back-EMF detection
• Package: SSOP-20 (Compact Surface-Mount)
• Operating Voltage: Typically 5V – 24V (check datasheet for exact range)
• Output Current: Up to 1.5A – 2A (peak, depends on cooling)
• PWM Frequency: Adjustable (typically 15kHz – 25kHz)

2. Protection Features

• Over-Current Protection (OCP)
• Over-Temperature Protection (OTP)
• Under-Voltage Lockout (UVLO)
• Short-Circuit Protection

3. Control & Interface

• Speed Control: PWM input for variable speed
• Forward/Reverse: Supported via control pin
• Braking Function: Supported
• Standby Mode: Low-power mode when idle

4. Electrical Characteristics

• Logic Voltage: 3.3V/5V compatible control signals

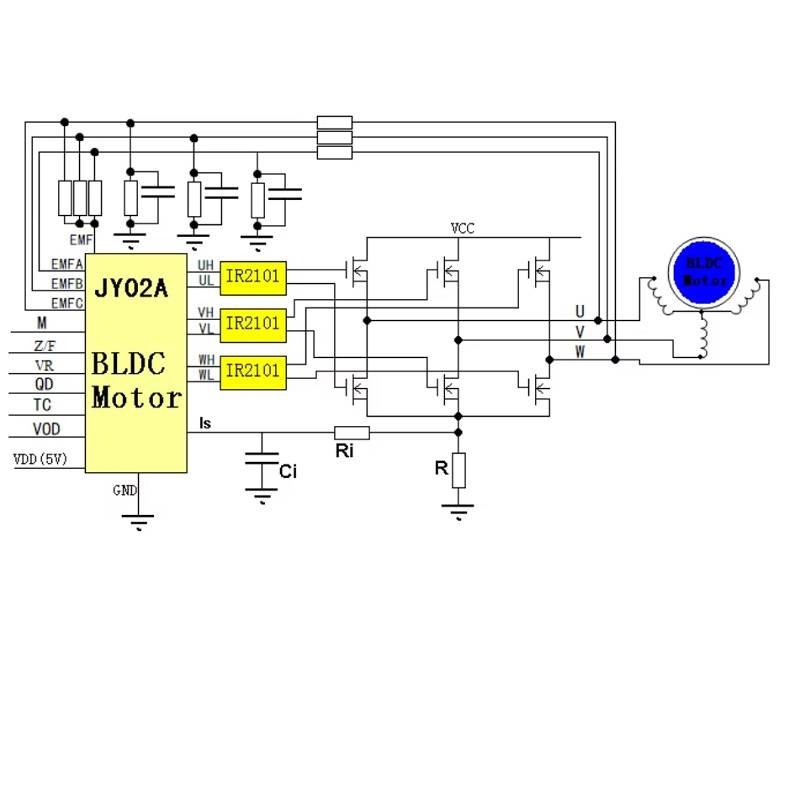

• Output Configuration: 3 Half-Bridge MOSFET drivers (supports external N-channel MOSFETs)
• Efficiency: Up to 90%+ (with proper MOSFET selection)

5. Pinout Highlights (SSOP-20)

1. VCC – Logic supply (3.3V/5V)
2. GND – Ground
3. PWM – Speed control input
4. FG – Tachometer output
5. U/V/W – Motor phase outputs
6. F/R – Forward/Reverse control
7. Brake – Brake control

6. Thermal Specifications

• Operating Temp: -20°C to +85°C
• Storage Temp: -40°C to +125°C
• Thermal Resistance: θJA ≈ 50°C/W (needs PCB heatsinking)

7. Typical Applications

• Cooling fans (PC/industrial)
• Small appliances
• Automotive blowers
• DIY robotics projects

8. Manufacturer References

• Often marketed as JY02A or JY02A-SSOP20
• Compatible alternatives: DRV10983 (TI), LV8811 (ON Semi)

Key Advantages

• Sensorless Operation – Eliminates need for Hall sensors
• Compact Size – SSOP-20 saves board space
• Integrated Protections – Makes design more robust

Design Notes

1. Requires external MOSFETs for higher current applications
2. Decoupling capacitors (100nF + 10µF) recommended near VCC
3. PCB Layout critical for thermal management
