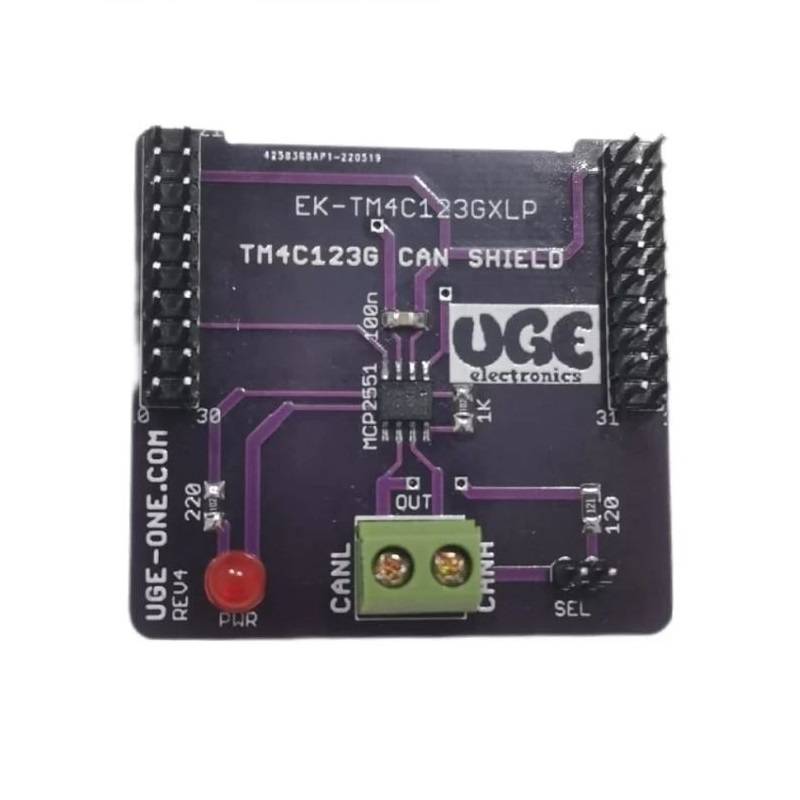

MCP2551 CAN-BUS Shield For TIVA-C TM4C123 ARM Board

Description

MCP2551 CAN-BUS Shield For TIVA-C TM4C123 ARM Board

Description: This shield made for Tiva C to connect more than one board on CAN bus for automotive CAN application.. It uses the Microchip MCP2551 CAN transceiver. CAN connection is via a standard 2-way Terminal Block

Features

• CAN v2.0B upto 1 Mb/s with 16MHZ crystal Oscillator
• 120 ohm bus resistance Selector
• Power LED indicator

Documents:

• Datasheet (MCP2551)
• TM4C123 CAN-BUS Demo Tutorial
• GitHub
