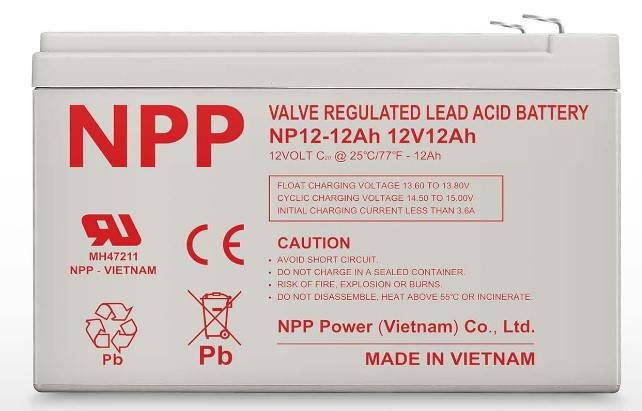

NPP Lead Acid Battery 12V 12Ah

Description

The NPP NP12-12Ah is a 12-volt, 12-ampere-hour (Ah) sealed lead-acid (SLA) battery

commonly used in applications such as uninterruptible power supplies (UPS), alarm systems, and emergency lighting.

 specifications:

• Nominal Voltage: 12V
• Nominal Capacity (20-hour rate): 12Ah
• Dimensions:
  • Length: 151 mm (5.94 inches)
  • Width: 98 mm (3.86 inches)
  • Height: 95 mm (3.74 inches)
  • Total Height (with terminals): 101 mm (3.98 inches)
• Weight: Approximately 3.40 kg (7.51 lbs)
• Terminal Type: T1/T2
• Internal Resistance: Approximately 19 mΩ (at 25°C)
• Maximum Discharge Current (5 seconds): 180A
• Operating Temperature Range:
  • Discharge: -15°C to 50°C (5°F to 122°F)
  • Charge: -10°C to 50°C (14°F to 122°F)
  • Storage: -20°C to 50°C (-4°F to 122°F)

FOR DATASHEET PLEASE CLICKHERE
