PCB For GD32F103C8T6 Microcontroller Development Board

Description

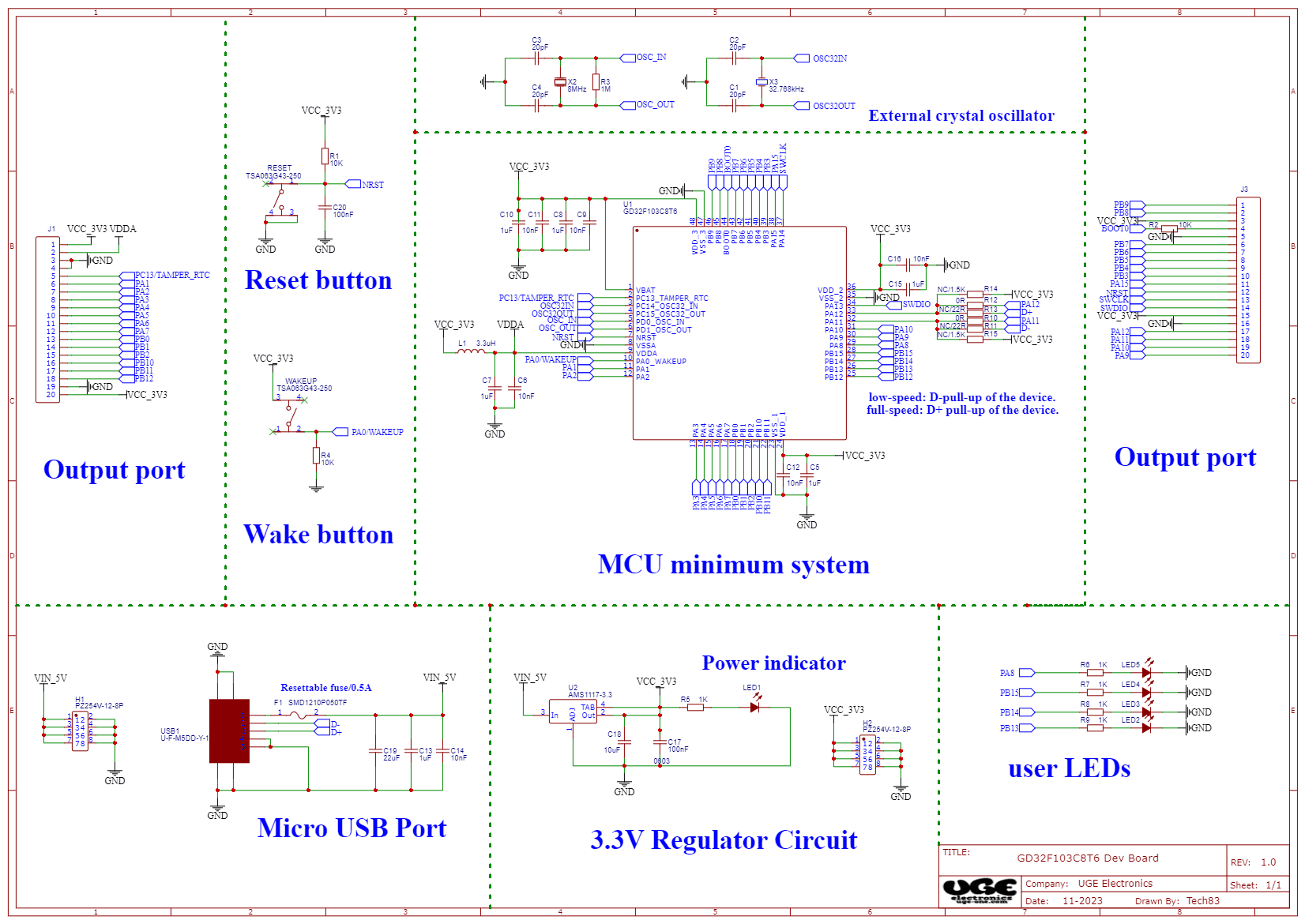

An Empty PCB designed for the GD32F103C8T6 chip model of GigaDevice as DIY Advance soldering training and practice. The entire board is powered by micro USB and regulates the output of 3.3V through the 1117 voltage regulator IC. It is equipped with a wake-up button and a reset button in the middle, and IOs lead from the chip pins on both sides. Also the SWD debugging pins brought out, including 3.3V and 5V voltage selection, BOOT0 mode selection,  power indicator light and 4 LED lights for examples programming. Note: This board is also compatible with some other ARM chip models packaged as LQFP-48.use this link as soldering guide and bill of materials also included
