Description
Overview

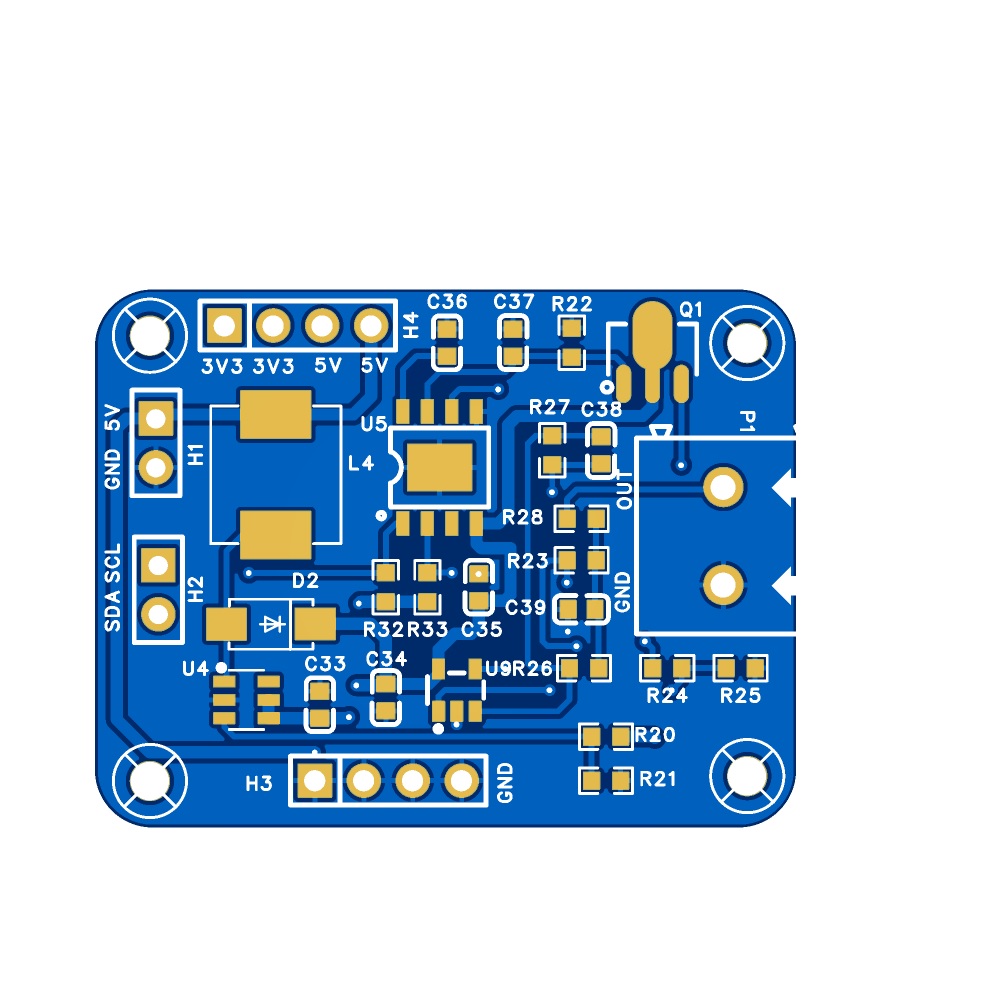

The GP8212S-TC50-EW 4–20mA Current Generator Module is a compact, I2C-controlled analog output board designed for applications requiring a standard 4–20mA industrial current loop signal. The module operates from a 5V supply and includes an onboard MT3608 boost converter to generate the higher voltage required by the GP8212S-TC50-EW.
The PCB module can be controlled directly through an I2C interface, making it suitable for use with microcontrollers, PLCs, Arduino boards, ESP32, STM32, and other embedded systems.
Key Features
- GP8212S-TC50-EW current output controller
- 4–20mA analog current output
- 5V DC power input
- Onboard MT3608 boost converter generates approximately 12V for the GP8212S-TC50-EW
- I2C-controlled output
- Onboard 4.7kΩ I2C pull-up resistors
- Dedicated screw terminal for the 4–20mA output
- Separate connectors for 5V, 3.3V, GND, SDA and SCL
- Compact PCB design suitable for integration into control and automation equipment
- Suitable for connecting digital controllers to equipment using standard industrial current-loop signals
- the Interactive BOM file can be viewed from this Link

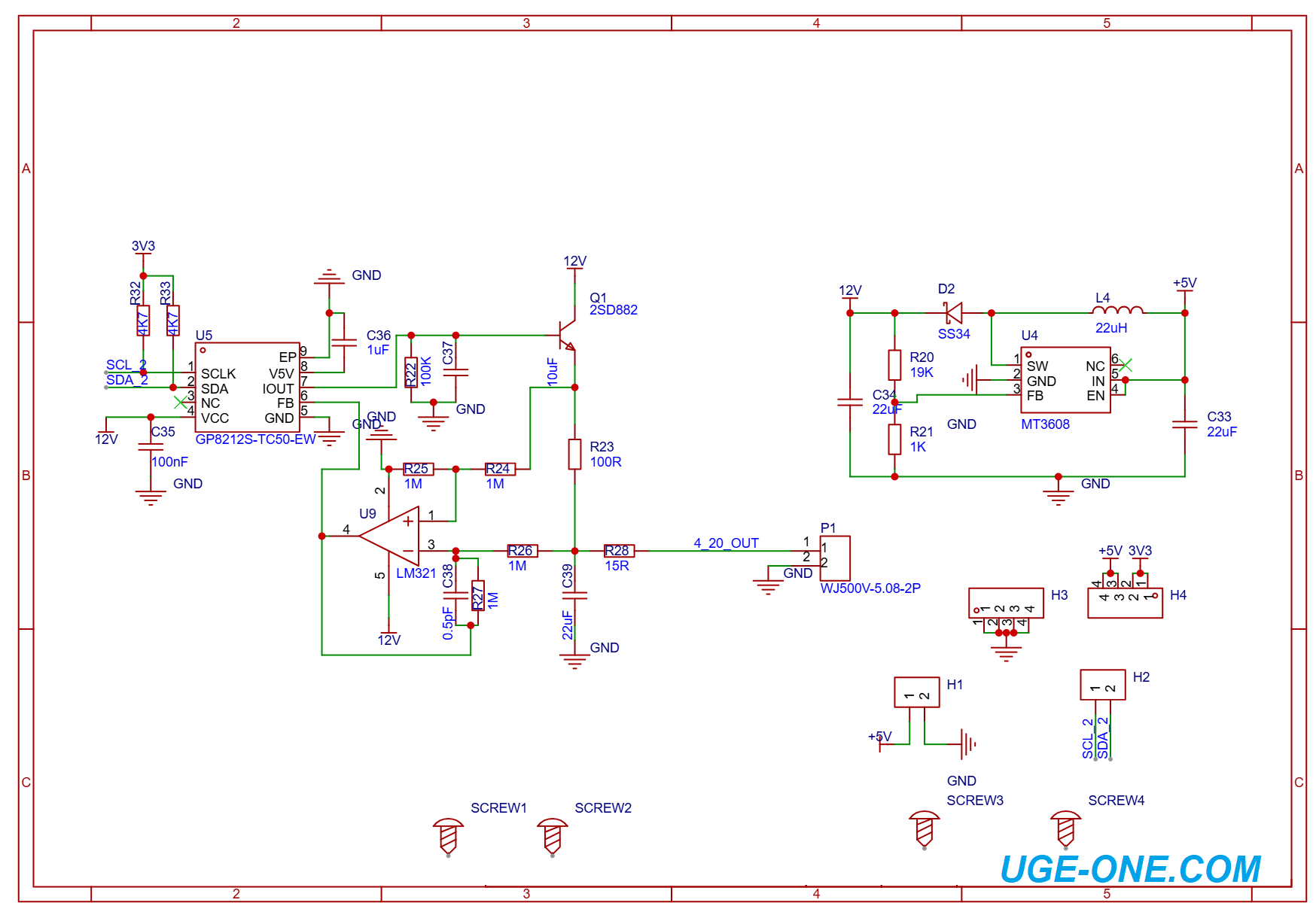

- GitHub link for Arduino Examples , Schematic and BOM file
Technical Specifications
- Controller IC: GP8212S-TC50-EW
- Output: 4–20mA current signal
- Control Interface: I2C
- Supply Voltage: 5V DC
- Onboard Boost Converter: MT3608
- Boost Output: Approximately 12V
- I2C Pull-Ups: 4.7kΩ
- Output Connector: 2-pin screw terminal
- I2C Connector: SDA / SCL
- Power Connections: 5V / 3.3V / GND
I2C Interface
The module provides an easy-to-use I2C interface for digital control of the current output. 4.7kΩ pull-up resistors are provided onboard for SDA and SCL, simplifying connection to a host controller.
It can be connected to common development platforms such as:
- ESP32
- STM32
- Arduino
- Raspberry Pi
- Other I2C-compatible microcontrollers and control systems
Power Supply
The module is designed to operate from a 5V DC supply. An onboard MT3608 boost converter increases the supply voltage to approximately 12V, providing the required higher-voltage rail for the GP8212S-TC50-EW current-output circuitry.
Applications
- Industrial automation
- PLC analog output expansion
- Process control
- Sensor and transmitter interfaces
- Industrial instrumentation
- 4–20mA test equipment
- IoT and remote-control systems
- Microcontroller-to-industrial-equipment interfaces
- Laboratory and development projects
What’s Included

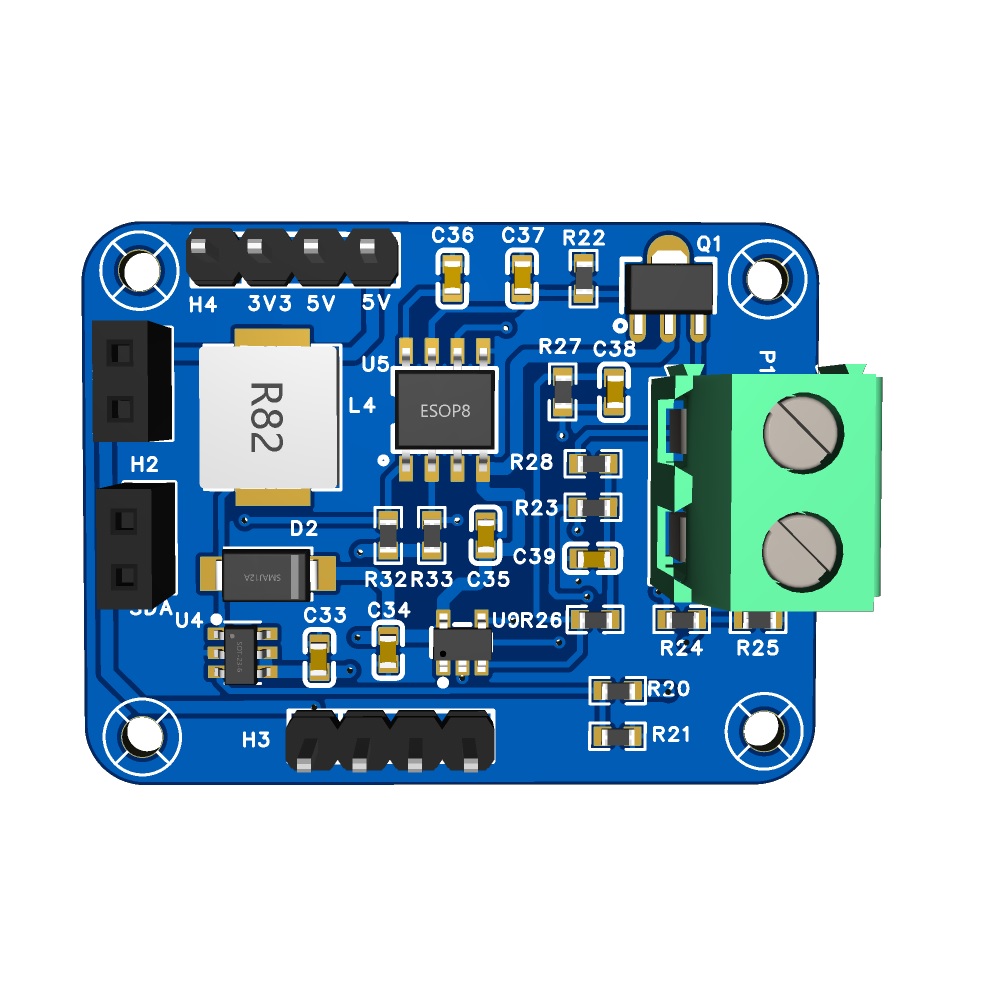

- 1 × GP8212S-TC50-EW 4–20mA Current Generator Empty Bare PCB Board (all Components Sold separately )
Notes
- 5V DC power is required for module operation.
- The 4–20mA output is controlled through the I2C interface.
- The module includes onboard I2C pull-up resistors.
- Actual output performance, compliance voltage, accuracy, and load capability depend on the GP8212S-TC50-EW device specifications and the connected current-loop load.
