Description

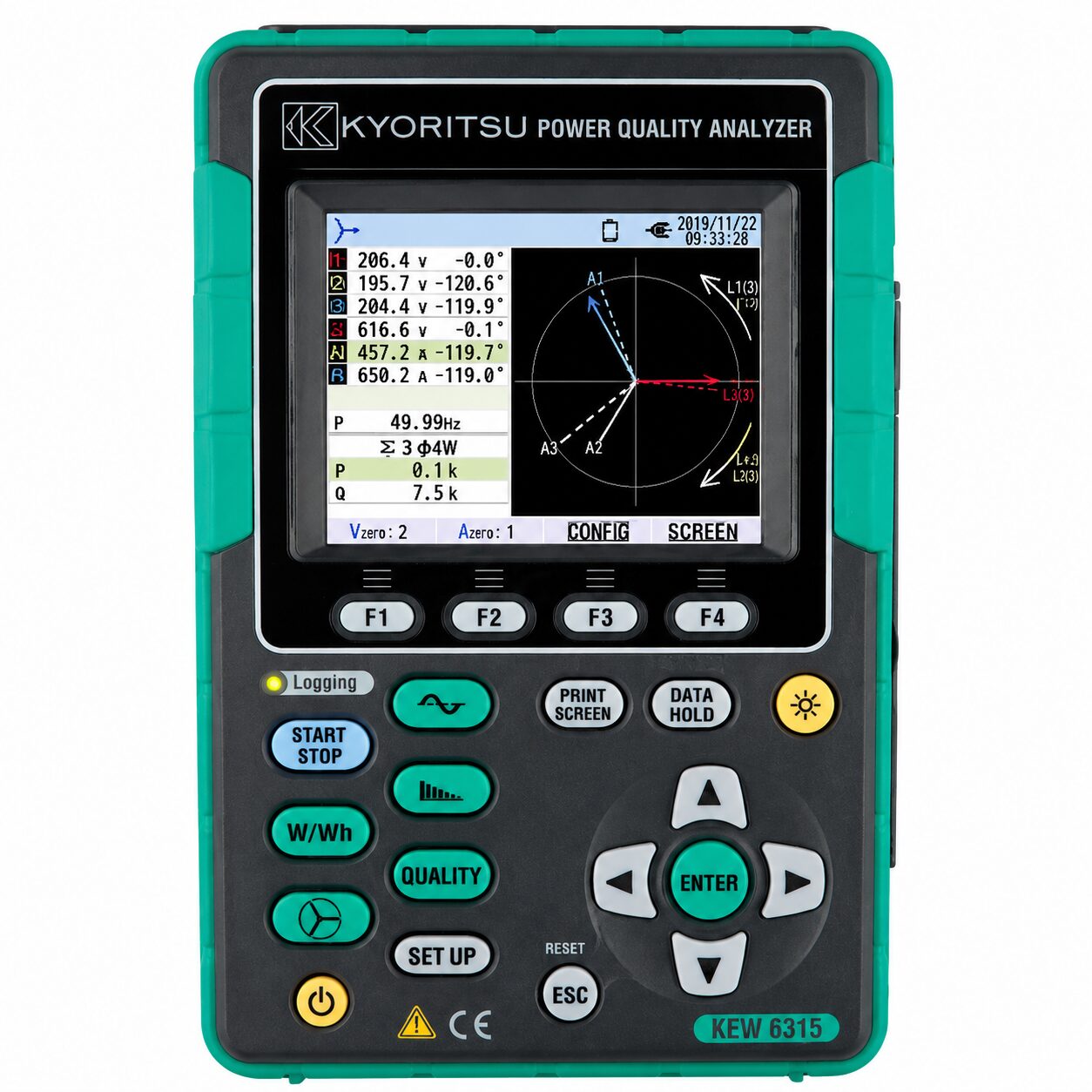

POWER QUALITY ANALYZER KEW 6315
The KEW 6315 Power Quality Analyzer is a high-precision power monitoring instrument designed for comprehensive analysis of electrical power systems in industrial, commercial, and utility applications. It simultaneously records power consumption and power quality parameters, enabling engineers to identify electrical disturbances, optimize energy usage, and ensure compliance with international power quality standards. With advanced harmonic analysis, event recording, Bluetooth connectivity, and support for a wide range of current sensors, the KEW 6315 is an ideal solution for preventive maintenance, energy audits, and troubleshooting of electrical installations
POWER QUALITY ANALYZER KEW 6315
| Specification |
Details |
| Product Type |
Power Quality Analyzer |
| Measurement System |
1P2W, 1P3W, 3P3W, 3P4W |
| Voltage Channels |
3 Channels |
| Current Channels |
4 Channels |
| Voltage Range |
600 V / 1000 V AC |
| Current Range |
Depends on clamp sensor (10 A to 3000 A) |
| Frequency |
40–70 Hz |
| Power Measurements |
Active, Reactive, Apparent Power |
| Energy Measurements |
Active, Reactive, Apparent Energy |
| Power Factor |
Yes |
| Demand Measurement |
Yes |
| Harmonics |
Up to 50th Order |
| Waveform Capture |
Yes |
| Power Quality Events |
Voltage Dip, Swell, Interruption, Transient, Inrush Current |
| Flicker Measurement |
Yes |
| Unbalance Measurement |
Yes |
| True RMS |
Yes |
| Communication |
USB, Bluetooth® 5.0 |
| Storage |
Internal Flash Memory + SD Card (2 GB included) |
| Display |
3.5″ Color TFT LCD (320 × 240 pixels) |
| Power Supply |
AC 100–240 V or 6 × AA batteries |
| Battery Life |
Approx. 3 hours |
| Safety Rating |
IEC 61010 CAT IV 300 V / CAT III 600 V / CAT II 1000 V |
| Compliance |
IEC 61000-4-30 Class S, EN 50160, IEC 61000-4-7, IEC 61000-4-15 |
| Dimensions |
175 × 120 × 68 mm |
| Weight |
Approx. 900 g |
Key Features
- Simultaneous power and power quality recording
- High-accuracy measurements (Voltage/Current ±0.2% rdg, Energy ±0.3% rdg)
- Harmonics analysis up to the 50th order
- Voltage waveform recording
- Detection of dips, swells, interruptions, transients, and inrush current
- Flicker and unbalance analysis
- Real-time Bluetooth monitoring via Android devices
- USB data transfer to PC
- SD card data storage
- Trend and demand graph display
- Supports a wide range of clamp sensors (10 A to 3000 A)
Brand
KYORITSU
Kyoritsu Electrical Instrument
KYORITSU brand
