Description

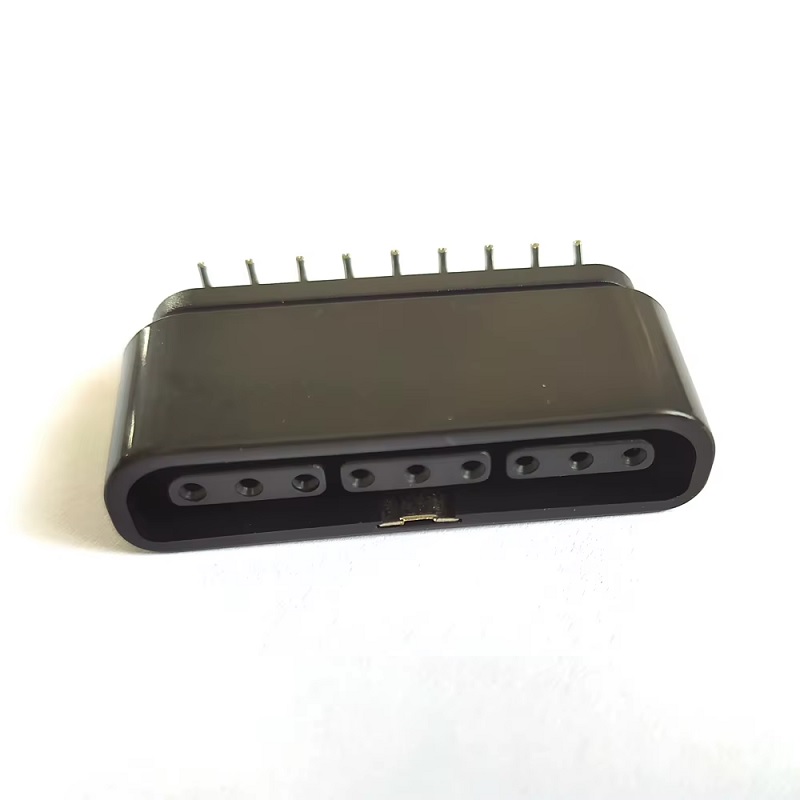

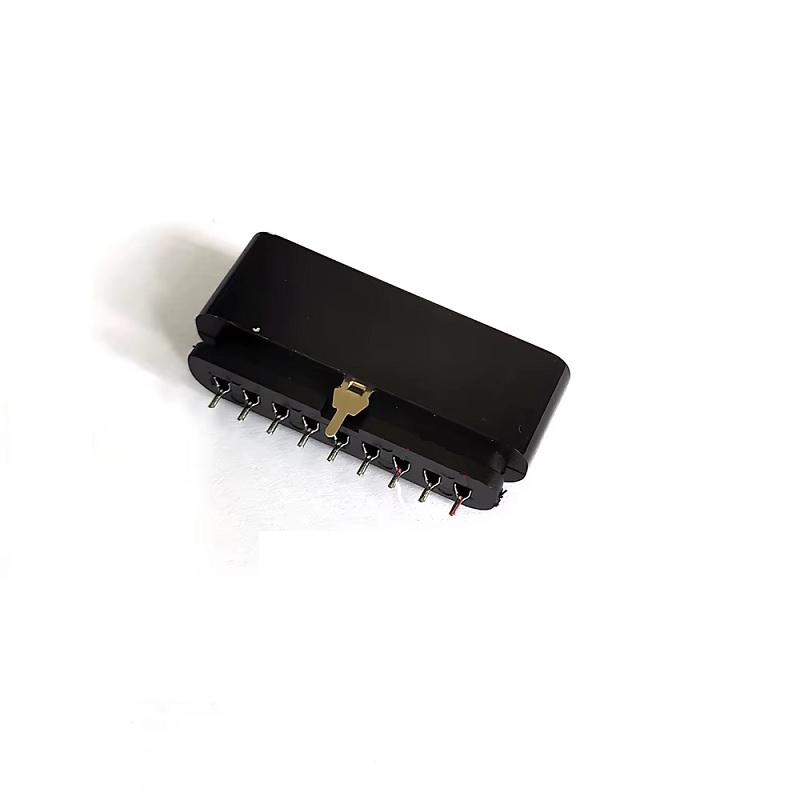

This is a 9-pin, 180-degree female connector socket for the Sony PlayStation 2 console, designed to be mounted directly onto a PCB. It’s a proprietary part used for the controller ports on the console itself . For PCB mounting, it’s a more robust solution compared to using a generic D-sub connector, as the pinout and physical keying are specific to the PS2 standard .
For your product listing, you can use the following specs and information:
Technical Specifications
PS2 Controller Port Pinout
The port uses a specific 9-pin configuration for communication with the controller .
Product Features
-
Direct PCB Integration: Designed for direct mounting onto a circuit board. Can be integrated into custom projects, repair jobs, or as a replacement part .
-
Durable Connection: Sturdy construction ensures a secure fit for the controller plug .
-
180-Degree Orientation: Vertical mounting saves space on the PCB and aligns with the console’s design.
Design Notes
-
Proprietary Design: This is not a standard DB9 connector . It is a proprietary Sony part, and the pinout listed above is specific to the PS2 communication protocol .
-
Breadboard Friendly: The 2.54mm pin pitch makes this socket compatible with standard breadboards and prototyping boards, simplifying the development of custom projects
