PWM DC motor speed controller Driver 30A

Description

Technical Parameters

■ Operating voltage: 12V-60V                                         ■ Output voltage: Load Linear

■ Maximum current:. 35A                             ■ Continuous current: 30A

■ Speed ​​range: 0% – 100%                 ■ Overload protection: current limiting

■ Speed ​​mode: potentiometer (otherwise support Hall control)          ■ Speed ​​Type: adjusting flow

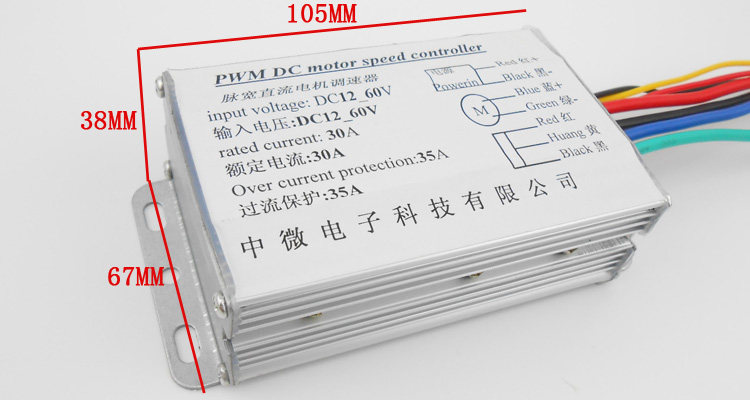

■ Motherboard dimensions: length 105 the MM * 67 the MM * 38 the MM           ■ Product Weight: 250 grams

Wiring

Red wire: positive power supply +　　　black to: negative power supply –

Blue Line connection: the motor is +　　　Green Line:Negative Motor –
