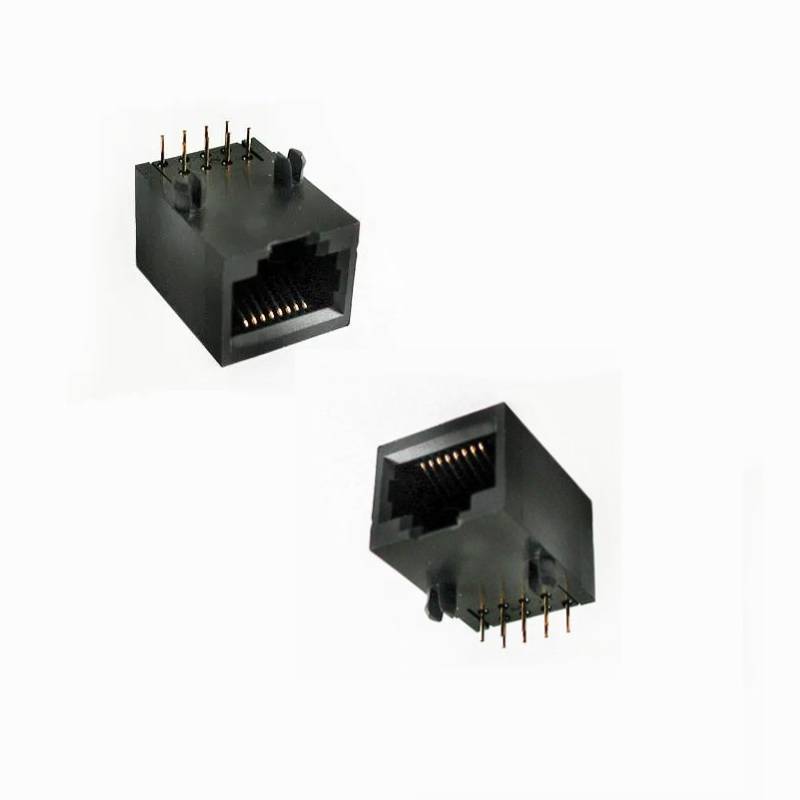

RJ45 8-Pin Ethernet Connector PCB Mount

RJ45 8-Pin Ethernet Connector PCB Mount

Model: RJ45 8-Pin

SKU: k5-9-RJ45-8-Pin

In Stock

EGP 10.000

In Stock

SKU: k5-9-RJ45-8-Pin Categories: Components, Connectors, Newly Arrived Tags: 8-pin, connector, ethernet, mount, pcb, rj45, rj45-8pin

Description

RJ45 Pin Identification

No:	Pin Number	Pair	Wire Color
1	1	Pair 1	White with Orange
2	8	Pair 1	Brown with White
3	2	Pair 2	Orange with White
4	7	Pair 2	White with Brown
5	3	Pair 3	White with Green
6	6	Pair 3	Green with White
7	4	Pair 4	Blue with White
8	5	Pair 4	White with Blue

RJ45 Connector Specifications

8P8C RJ-45 Connector (8-pin connector)
Through Hole PCB mount socket
Compatible with all CAT and UDP cable

Additional information

Weight	0.01 kg

Brand

Chinese

Chinese

Chinese
