Description

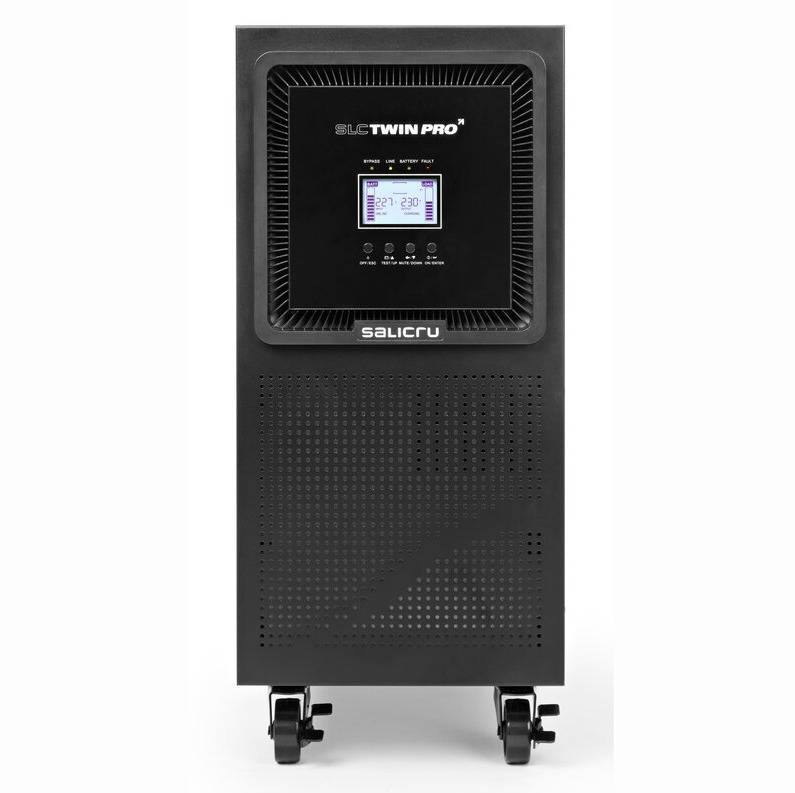

6000 VA Uninterruptible Power Systems (UPS) On-line double conversion and DSP control
Enhanced protection for mid-range systems with single-phase power supply.
Specifications :
Technical specifications :
TECHNOLOGY : On-line double conversion
FORMAT : Tower
INPUT / OUTPUT :
Input / Output : I / I
INPUT :
Voltage : 220 / 230 / 240 V
Voltage range : 110 ÷ 276 V (2)
Rated frequency : 50 / 60 Hz
Frequency range : ±10%
Total harmonic distortion (THDi) : <4%
Power factor : ≥0.99
OUTPUT :
Power factor : 1
Voltage : 208 / 220 / 230 / 240 V
Static accuracy : ±1%
Power (VA/W) : 6000 / 6000
Total harmonic distortion (THDv) Linerar load : ≤1%
Total harmonic distortion (THDv) Non~linear load : ≤4%
Synchronised frequency : ±4 Hz
Frequency accuracy (battery mode) : ±0.1 Hz
Total performance in On-line mode : 93% ÷ 94%
Admissible overloads : Up to 110% for 10 min; 130% for 1 min
Crest factor : 3 a 1
Parallel : Yes, up to 3 units(3)
MANUAL BYPASS :
Type : No breaks
STATIC BYPASS :
Type and activation criteria : Hybrid
Transfer time : Nil
BATTERY :
Protection : Against power surges, undervoltages and alternating current components
Battery type : Pb-Ca sealed, AGM, maintenance-free
Charge type : I/U (constant current/constant voltage)
Recharge time : 7 ÷ 9 hours to 90%
CHARGER :
Temperature voltage compensation : Yes
COMMUNICATION :
Ports : USB, RS-232 and relay
Intelligent slot : Yes, ready for SNMP / AS400 / RS485-Modbus
Monitoring software : Downloadable for Windows, Unix, Linux and Mac
OTHER FUNCTIONS :
Cold start (start-up from batteries) : Yes
OPERATING MODES :
Eco-mode : Yes
Frequency converter (CVCF) : Yes (4)
GENERAL :
Operating temperature : 0º C ÷ 40º C
Relative humidity : Up to 95%, non-condensing
Maxium operating altitude : 2,400 masl (power degradation up to 5,000 m)
Acoustic noise at 1 metre : < 58 dB
STANDARDS :
Safety : EN-IEC 62040-1
Electromagnetic compatibility (EMC) : EN 62040-2 (C3)
Operation : VFI-SS-11 (EN-62040-3)
Corporate cerification : ISO 9001, ISO 14001, ISO 45001
DIMENSIONS :
Depth (mm) : 592
Width (mm) : 250
Height (mm) : 576
WEIGHT :
Weight (kg) : 83
(1) Power reduction to 90% for 208 V input
(2) With 50% load
(3) Power reduction to 90%
(4) Power reduction to 60%
(5) Power reduction to 40%
Spain Brand – 2 YEARS WARRANTY
