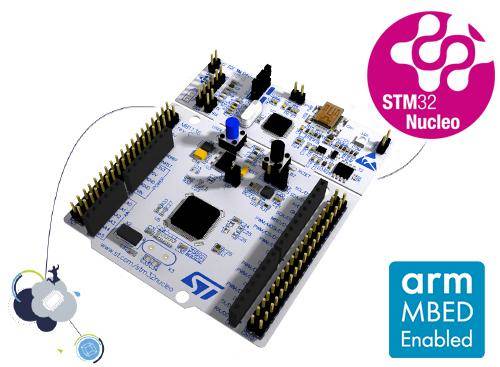

STM32 Nucleo-64 development board with STM32F401RE MCU

SKU: NUCLEO F401RE
Out of stock
EGP 3,000.000 exc. vat
Out of stock
Brand:Chinese
SKU: NUCLEO F401RE Category: Tags: , , , , , , , ,

Description

The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features. The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.

The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.
Key Features
•STM32 microcontroller with LQFP64 package
•Two types of extension resources
   Arduino Uno Revision 3 connectivity
   STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
•mbed-enabled (mbed.org)
•On-board ST-LINK/V2-1 debugger/programmer with SWD connector
   selection-mode switch to use the kit as a standalone ST-LINK/V2-1
•Flexible board power supply
   USB VBUS or external source(3.3 V, 5 V, 7 – 12 V)
   Power management access point
•Three LEDs
   USB communication (LD1), user LED (LD2), power LED (LD3)
•Two push buttons: USER and RESET
•USB re-enumeration capability: three different interfaces supported on USB
   Virtual Com port
   Mass storage
   Debug port
•Comprehensive free software HAL library including a variety of software examples
•Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs

Document
Product specifications DB2196: STM32 Nucleo boards
User manual UM1724: STM32 Nucleo boards
User manual UM1727: Getting started with STM32 Nucleo board software development tools

Additional information

Weight 0.014 kg

Brand

Chinese

Chinese
Chinese
