TDA2004

Description

Description:

The TDA2004 is a class B dual audio power amplifier in MULTIWATT(R) package specifically designed for car radio applications stereo amplifiers are easily designed using this device that provides a high current capability (up to 3.5A) and that can drive very low impedance loads (down to 1.6W )

Features:

• Low distortion.
• Low noise.
• High reliability of the chip and of the package with additional safety during operation thanks to protections against:
  • OUTPUT AC SHORT CIRCUIT TO GROUND
  • VERY INDUCTIVE LOADS
  • OVER RATING CHIP TEMPERATURE
  • LOAD DUMP VOLTAGE SURGE
  • FORTUITOUS OPEN GROUND
• Space and cost saving : very low number of external components,very simple mounting system with no electrical isolation between the package and the heatsinkide

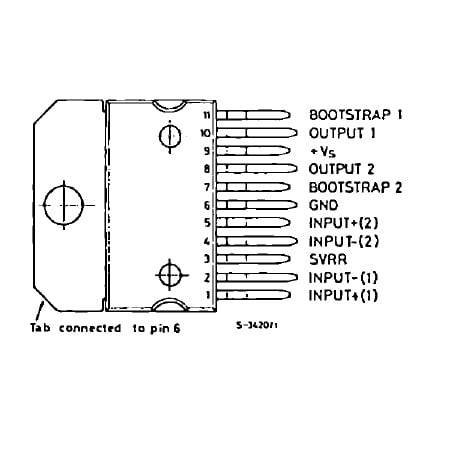

PIN CONNECTION (top view): See Datasheet   Pin No. Pin Name 1 Input + (1) 2 Input – (1) 3 SVRR 4 Input – (2) 5 Input + (2) 6 GND 7 Bootstrap 2 8 Output 2 9 +Vs 10 Output 2 11 Bootstrap 1
