Description

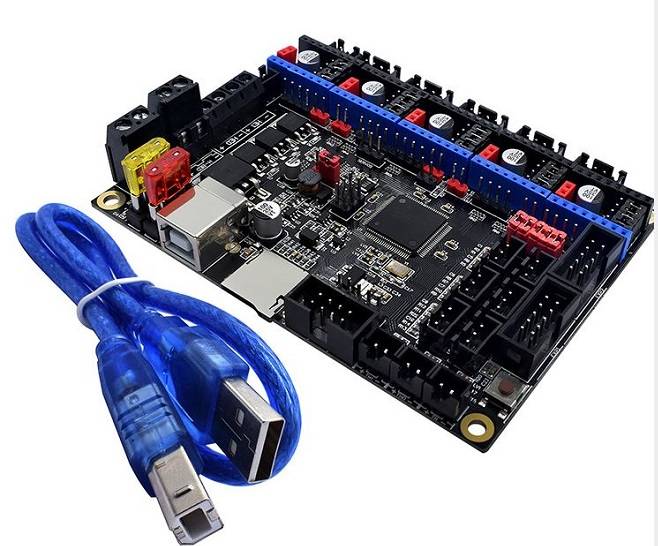

3D Printer Motherboard SKR V1.3 Open Source Firmware 32-Bit Processor Marlin Open Source
Information
Motor driver: support TMC2208, TMC2130, ST820, LV8729, DRV8825, A4988, can be independently external motor drive
Driver working mode support: TMC2130-SPI, TMC2208-UART
Motor drive interface: X, Y, Z, E0, E1, five (each has a reextendable interface), Up to 256 subdivisions
Temperature sensor interface: TH0, TH1, TB, 3 channel 100K NTC (thermal resistance)
Display: 2.8 “TFT, 3.5” TFT, LCD2004, LCD12864
PC communication interface: square USB, easy to plug, communication baud rate of 115200
Expand the interface function support: Resume Printing While Power Off, Filament Break Detection, Automatic Shutdown After Printing, Automatic leveling, BL Touch.
SKR V1.3 instruction, please refer to this link ClickHere
Only Marlin firmware can demonstrate the full functionality of SKR V1.3. ClickHere
More Info
Material: 4-layer PCB
Microprocessor: ARM cortex-M3 CPU
Input Voltage: DC12V-DC24V, 5A-15A
Appearance Size: 110*85mm
Mounting Size: 102*76mm
Support Display: TFT3.5, TFT2.8, 2004LCD, 12864LCD
Support Driver: TMC2208/TMC2130/TMC2100/ST820/A4988/DRV8825/LV8729
Driver Working Mode: STEP/DIR, TMC2208-UART, TMC2130-SPI
Temperature Sensor Interface: TH0, TH1, TB, 3 channel 100K NTC (thermal resistance)
Support File Format: G-code
Support Machine Type: XYZ, Delta, Kossel, Ultimaker, Corexy
Use for: 3D Printer
