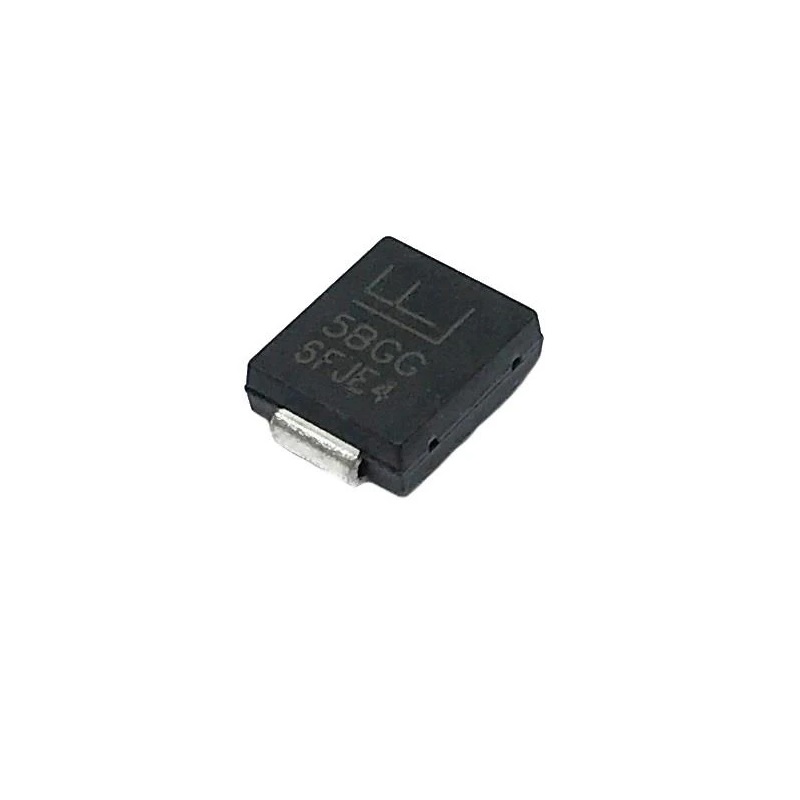

Name: 5.0SMDJ60CA 60V 5000W Single Bidirectional TVS Diode
SKU: 5.0SMDJ60CA
Price: 10.000 EGP
Availability: OutOfStock

Description

The 5.0SMDJ60CA is a high-power, bidirectional Transient Voltage Suppression (TVS) diode designed to protect sensitive electronics from voltage spikes caused by lightning and other transient events .

Key Specifications

Parameter	Value
Reverse Standoff Voltage (V<sub>RWM</sub>)	60V
Minimum Breakdown Voltage (V<sub>BR</sub>)	66.7V
Maximum Breakdown Voltage (V<sub>BR</sub>)	73.7V
Clamping Voltage (V<sub>C</sub>) @ I<sub>PP</sub>	96.8V
Peak Pulse Current (I<sub>PP</sub>) @ 10/1000µs	51.7A
Peak Pulse Power (P<sub>PP</sub>) @ 10/1000µs	5000W (5kW)
Reverse Leakage Current (I<sub>R</sub>)	< 5µA
Operating Junction Temperature (T<sub>J</sub>)	-55°C to +150°C

Physical & Compliance

Package: DO-214AB (SMC) surface-mount
Polarity: Bidirectional (one device protects both positive and negative transients)
ESD Protection: IEC 61000-4-2 (30kV Air/Contact)
Compliance: RoHS compliant, Halogen-free

Key Notes

Bidirectional: Unlike a unidirectional TVS, this device can clamp both positive and negative voltage spikes, making it ideal for protecting AC signals or data lines where the voltage can swing both ways .
High Power: The 5kW rating is for a specific 10/1000µs pulse waveform with a low duty cycle (0.01%), meaning it can absorb a massive amount of energy in a very short time without damage
