Description

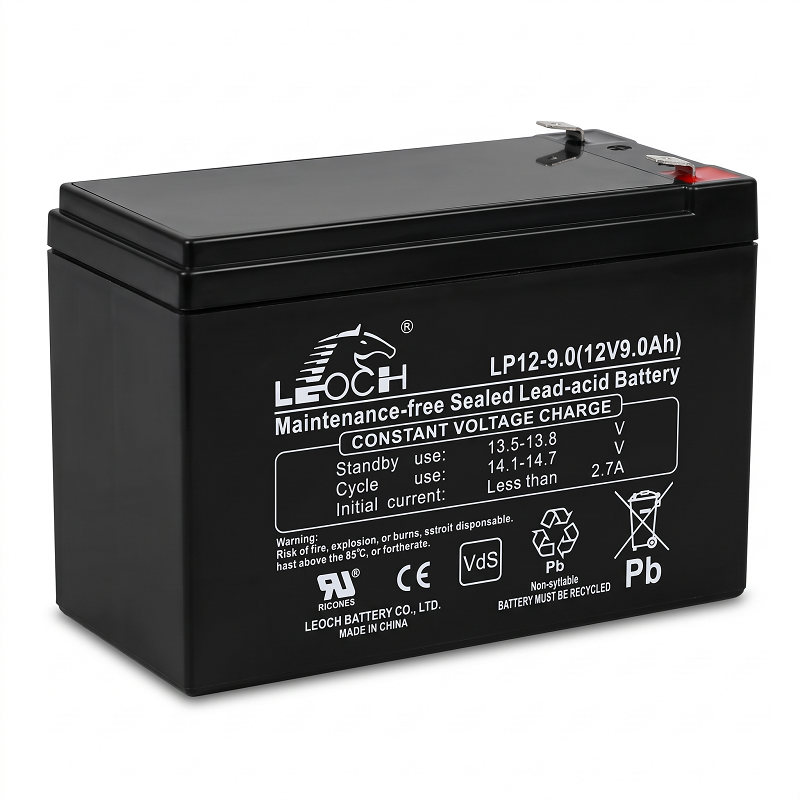

Reliable & Long-Lasting Backup Power: Leoch LP12-9.0 (12V 9.0Ah)
Keep your critical equipment running without interruption using the Leoch LP12-9.0 rechargeable battery. Part of Leoch’s proven LP Series, this 12-volt, 9-amp-hour battery is specifically designed for general-purpose standby power applications where steady reliability and leak-proof safety are paramount.
For DataSheet ClickHere
Key Features & Benefits
- 5-Year Design Life: Manufactured with high-purity lead-calcium grid alloys to achieve an extended design life of up to 5 years under standby float conditions at 25°C.
- Maintenance-Free & Non-Spillable: Completely sealed Valve Regulated Lead-Acid (VRLA) construction eliminates acid leakage and routine maintenance.
- Advanced AGM Technology: Puncture-resistant micro-porous glass mat separators maximize ion conductivity, lower internal resistance (~17 mΩ), and enhance shock resistance.
- Exceptional Storage Shelf-Life: Features a low self-discharge rate of less than 3% per month at 25°C, allowing up to 6 months of storage before a refresh charge is needed.
- Rugged ABS Casing: Impact-resistant ABS case (UL94-HB standard, optional flame-retardant V-0) ensures maximum safety and durability.
- High Discharge Performance: Supports high discharge currents with a short-circuit rating of up to 252A.
Recommended Applications
- Uninterruptible Power Supplies (UPS) & Emergency Power Systems (EPS)
- Security alarms, fire alarm systems, and CCTV backup power
- Telecommunications and DC power systems
- Emergency lighting and automated control equipment]
- Electronic test instruments and medical equipment backup
Technical Specifications
| Brand |
Leoch Battery |
| Model |
LP12-9.0 |
| Nominal Voltage |
12 V |
| Nominal Capacity (25°C) |
9.0 Ah (20hr rate to 1.75V/cell) |
| Battery Chemistry |
Sealed Lead Acid (VRLA / AGM) |
| Dimensions (L × W × H) |
151 mm × 65 mm × 93.5 mm (5.94″ × 2.56″ × 3.68″) |
| Total Height (with Terminals) |
99.5 mm (3.92″) |
| Approximate Weight |
2.52 kg (5.56 lbs) |
| Terminal Type |
T1 / T2 |
| Internal Resistance |
Approx. 17 mΩ (fully charged at 25°C) |
| Max. Charging Current |
0.3C (2.7A at 25°C) |
| Standby Float Charge Voltage |
2.25 V – 2.30 V/cell (13.5V – 13.8V at 25°C) |
| Cycle Charge Voltage |
2.35 V – 2.45 V/cell (14.1V – 14.7V at 25°C) |
| Operating Temperature Range |
Discharge: -15°C to 50°C | Charge: -20°C to 40°C | Storage: -15°C to 40°C |
| Container Material |
ABS (UL94-HB standard, UL94 V-0 optional) |
| Certifications & Standards |
UL, CE, IEC 60896, EU Battery Directive, ISO 9001 / 14001 / 45001 |
