8 Axis Steppers Driver Ramps Shield for Arduino Mega

Description

8 Axis Steppers Driver Ramps Shield for Arduino Mega

• Control up to 8 stepper motors simultaneously
• Connection for up to 8 end stops for motors homing
• 1 Output PWM signal for tool controlling
• 12V Aux pins
• 5V Aux pins

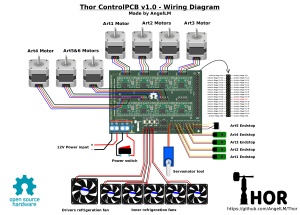

This board is an Arduino shield, being connected to the Arduino via the digital pins. The complete wiring diagram is as follows:

⚠️ Note that the PDIG1 connector is not connected to pin 41 of the Arduino Mega, but to pin 7. This connection is made by unsoldering the male pin of the Control PCB and soldering a jumper wire in its place ⚠️

For more information about the project Visit this Link
