Description
Overview
The UGE Electronics AVR USBasp Programmer is a compact, dual-function development tool designed for AVR microcontrollers. It works as a USBasp-compatible AVR programmer while simultaneously providing a USB-to-UART converter, allowing both functions to be used at the same time.
The board is optimized for a small footprint, with clearly labeled signal pins for easy connection using standard jumper wires. The ICSP/programming pins are accessible from the top side, while the UART pins are clearly marked on the opposite side, making it easy to identify and connect to a target circuit.
Key Features
- USBasp-compatible AVR programmer
- USB-to-UART converter in the same compact board
- Both programming and UART functions can operate simultaneously
- Designed for programming and development of AVR microcontrollers
- Clearly labeled ICSP/SPI programming signals
- Clearly labeled UART signals
- Easy connection to target circuits using standard jumper wires
- Compact design suitable for development benches and embedded projects
- USB-powered operation
- Status indicators for power, USB/UART activity, and programmer operation

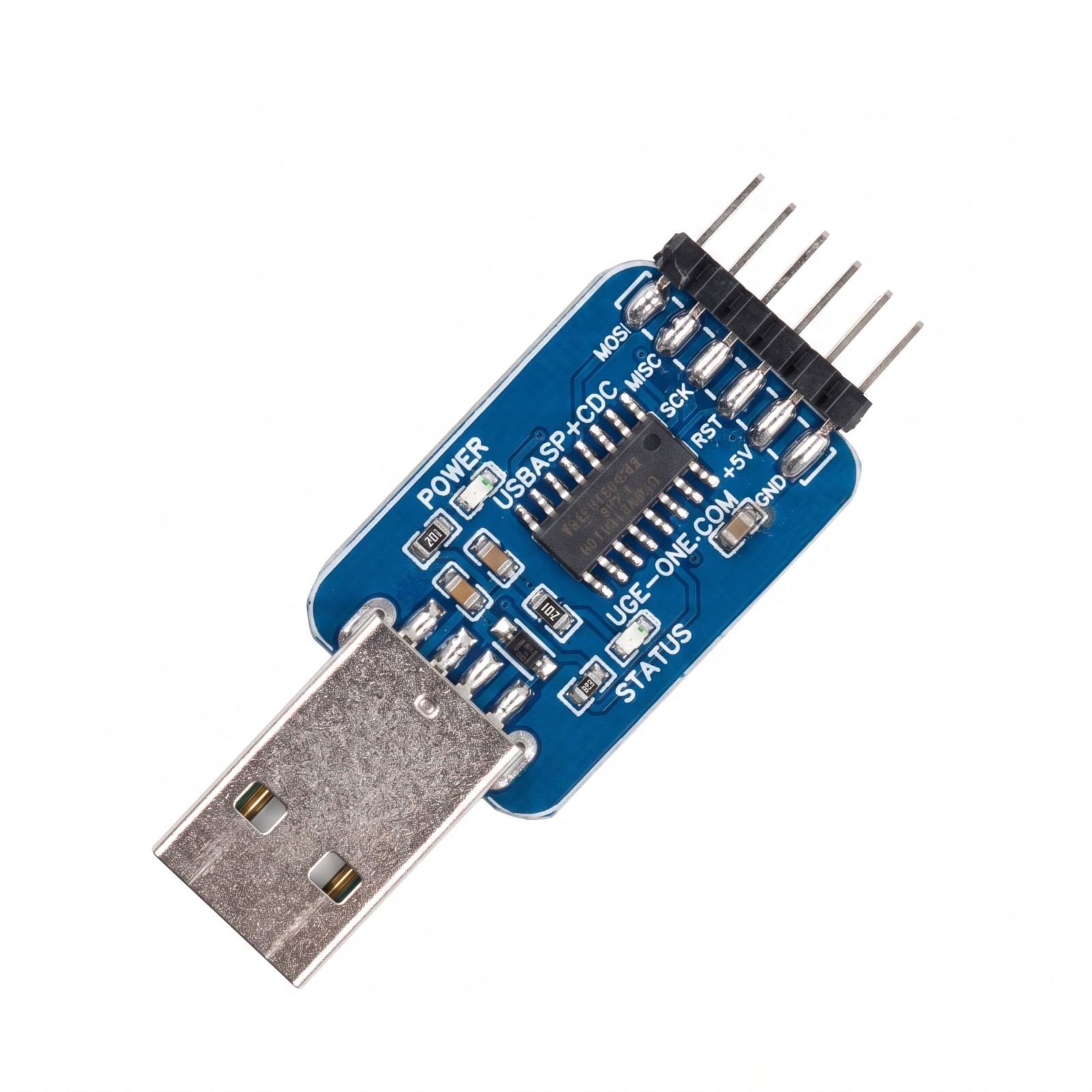

Programming Interface
The USBasp function provides the standard AVR ICSP programming signals:
- MOSI
- MISO
- SCK
- RST
- +5V
- GND
The clearly marked header allows the programmer to be connected directly to an AVR target board without requiring a dedicated programming cable.

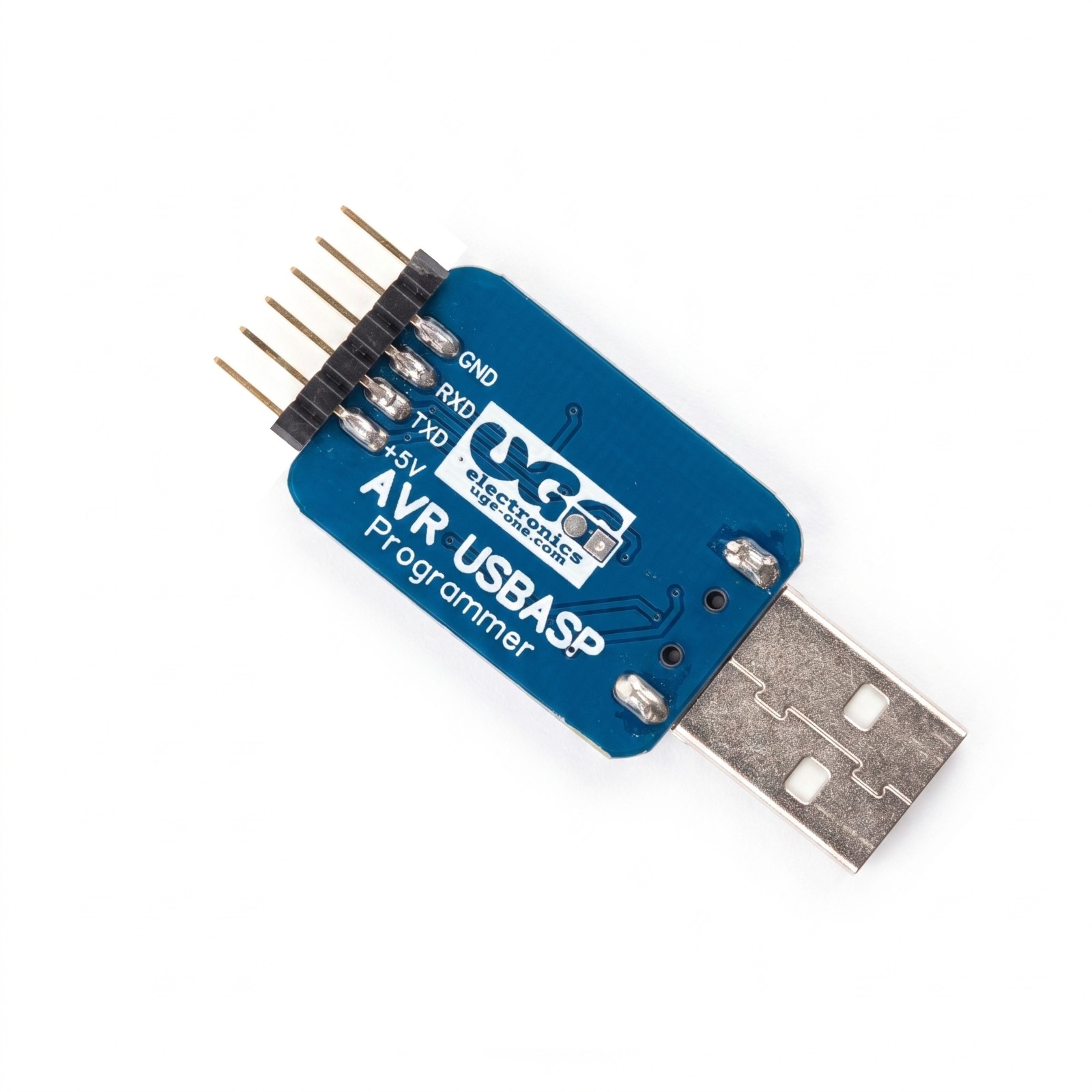

USB-to-UART Interface
In addition to AVR programming, the board provides a USB-to-UART interface with clearly labeled:
This makes the board useful for serial communication, debugging, bootloader programming, and connecting AVR-based projects to a PC.
Dual-Function Operation
A key feature of this programmer is that the USBasp programmer and USB-to-UART converter are available on the same board and can operate at the same time. This makes it convenient when developing AVR applications that require both firmware programming and serial communication.
Applications
- AVR microcontroller programming
- AVR firmware development
- Bootloader programming
- Embedded-system development
- UART debugging and serial communication
- AVR development boards
- DIY electronics projects
- Production and prototyping environments
