Type-C Female USB 2-in-1 Double-Layer USB Connector Module
Product Overview

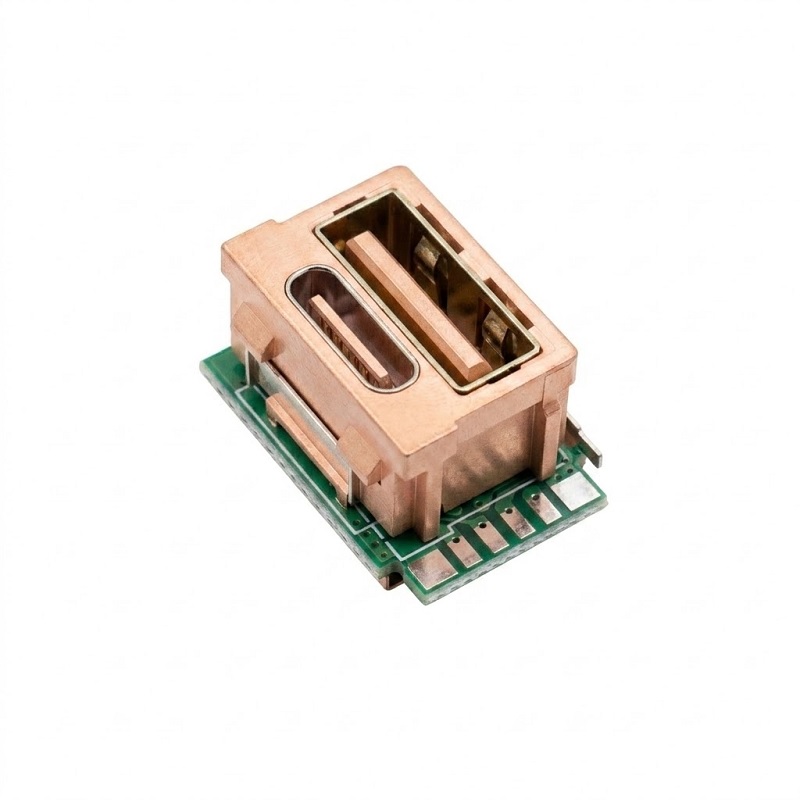

This USB 2-in-1 Double-Layer Connector Module combines a USB Type-C female port and a USB Type-A female port into a compact dual-interface design. The connector is pre-mounted on a PCB board with side edge solder pins for easy installation and secure mechanical mounting, making it ideal for DIY electronics, embedded systems, charging devices, and custom USB interface projects.
Key Features
- Dual USB interface design
- USB Type-C female connector
- USB Type-A female connector
- Double-layer compact structure
- 14P Type-C connector

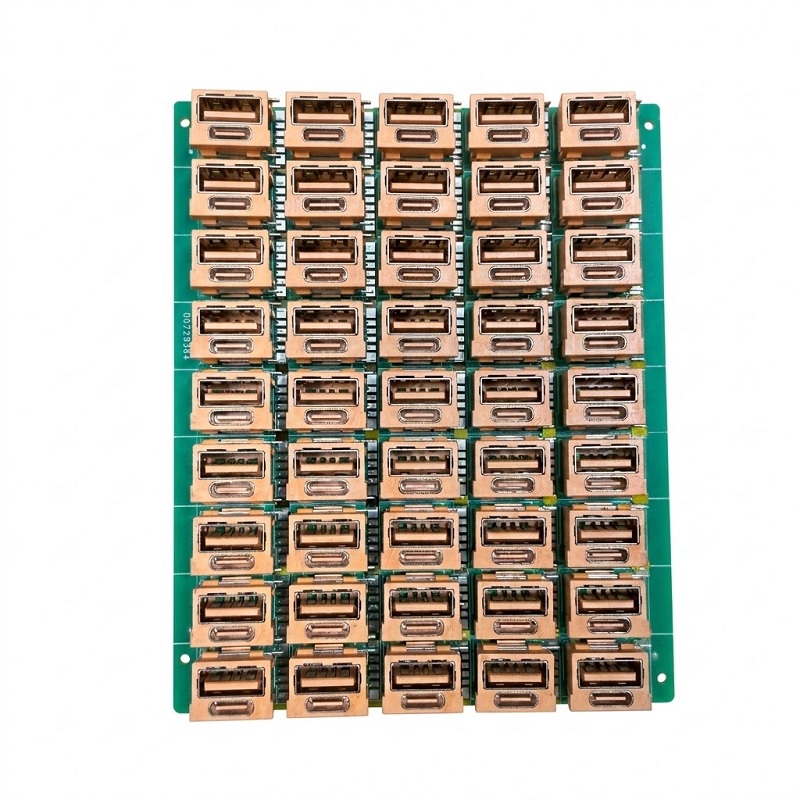

- Pre-soldered on PCB board
- Side edge mounting pins for easy soldering
- Durable metal shield construction
- Compact and space-saving design
- Suitable for charging and data transfer applications
Technical Specifications
| Specification |
Details |
| Product Type |
USB 2-in-1 Connector Module |
| Connector 1 |
USB Type-C Female |
| Connector 2 |
USB Type-A Female |
| Type-C Pin Count |
14P |
| USB Standard |
USB 2.0 |
| Mounting Type |
PCB Mount / Solder Type |
| Board Type |
Pre-mounted PCB Module |
| Connector Orientation |
Vertical / Double Layer |
| Contact Material |
Copper Alloy |
| Shielding |
Metal Shielded |
| Current Rating |
Up to 3A (Type-C) |
| Operating Voltage |
5V |
| Data Support |
USB Data + Charging |
| Mounting Support |
Side Edge Solder Pins |
Applications
- DIY electronics projects
- Embedded systems
- USB charging devices
- Development boards
- Power supply interfaces
- Industrial USB connections
- Custom USB hubs
- Arduino and Raspberry Pi projects
- Portable electronic devices
Advantages
- Easy installation with PCB-mounted design
- Combines USB-A and USB-C in one compact module
- Strong mechanical stability
- Space-saving double-layer construction
- Suitable for prototyping and production use
Package Includes
- 1 × Type-C Female + USB-A Female Double-Layer USB Connector Module
Notes
- Designed mainly for USB 2.0 data and charging applications.
- Verify PCB dimensions and pin spacing before installation.
- Suitable for solder mounting using side support pins for enhanced stability.
