Description

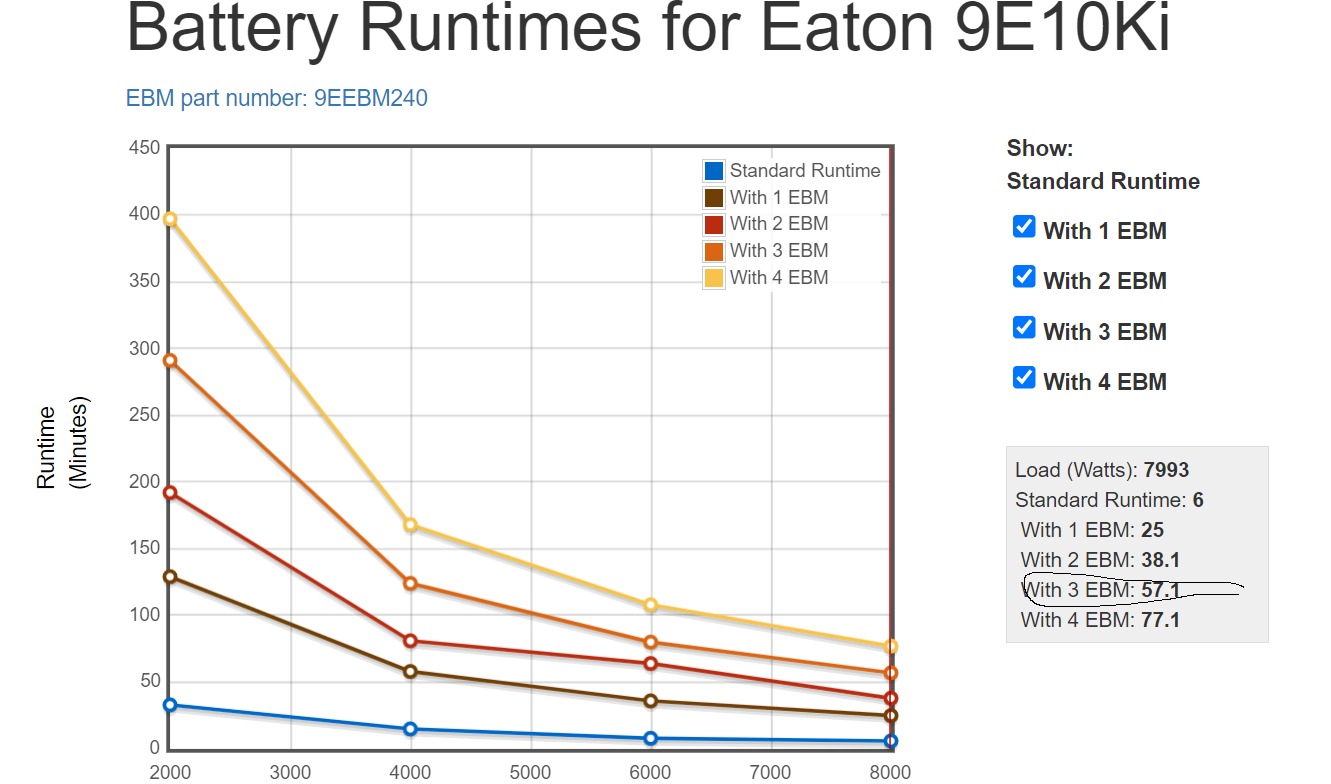

Eaton 9E10Ki Runtime Graph for 9EEBM240 Battery Module
Eaton 9E10Ki Runtime Graph for 9EEBM240 Battery Module
Eaton 9E10KI General specifications
| Product Name |
Eaton 9E UPS
|
| Catalog Number |
9E10KI
|
| UPC |
743172067678
|
| Product Length/Depth |
61.29 cm
|
| Product Height |
70.85 cm
|
| Product Width |
26.24 cm
|
| Product Weight |
85.39 kg
|
| Compliances |
CE Marked
TUV
|
| Certifications |
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
|
Additional information
| Auto shutdown function |
Yes
|
| Color |
Black
|
| Construction type |
Free standing model
|
| Efficiency at max. load |
92
|
| Hot swap power |
No
|
| Internal bypass |
Yes
|
| Package contents |
- UPS
- USB cable
- Serial cable
- User manual
|
| Phase (input) |
1
|
| Phase (output) |
1
|
| Rack mounting kit |
No
|
Battery specifications
| Battery management |
- Automatic battery test
- Deep discharge protection
|
| Battery quantity |
20
|
| Battery rating |
12 V / 9 Ah
|
| Battery replacement |
Replacable batteries
|
| Battery type |
Sealed, lead-acid
|
| Extended battery capability |
Yes
|
| Runtime graph |
|
Communication
| Communication |
- USB port (HID compliant)
- Serial port (RS232)
- Mini-terminal block for remote power off
- Communication slot
|
| Ethernet interface |
No
|
| Expansion slots |
One slot for optional communication card
|
| Includes network card |
No
|
| Potential free switch contact |
Yes
|
| Software compatibility |
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
|
| Type of interface |
Other
|
| User interface |
LCD Display
|
Electrical input
| Input connection |
Hardwired/fixed connection
|
| Input frequency range |
45-66Hz
|
| Input nominal voltage |
400V/230V
|
| Input power factor |
>.99
|
| Input voltage range |
176-276 V (110-276 V with derating) for 1ph input
|
| Nominal frequency |
50/60 Hz
|
Electrical output
| Feed type |
1
|
| Output nominal voltage |
230V default (220/230/240V)
|
| Output power factor |
0.8
|
| Output voltage range |
220/230/240 V +/- 2%
|
| Output waveform |
Sine wave
|
| Topology |
Online/Double-conversion
|
| VA rating |
10 kVA
|
| Voltage |
230V
|
| Voltage distortion output (linear load) – max |
3
|
| Wattage |
8 kW
|
Environmental
| Altitude |
3000 m
|
| Noise level |
<55 dB at 1 meter
|
| Relative humidity |
0-95% non-condensing
|
| Temperature range |
0° to 40°C (32° to 104°F)
|
