EG2131 300V 1.5A half bridge IGBT and MOSFET Gate Driver IC SMD SOP8
In Stock
EGP 20.000 exc. vat
In Stock
Brand:Chinese
Description
EG2131 300V 1.5A half bridge IGBT and MOSFET Gate Driver IC SMD SOP8

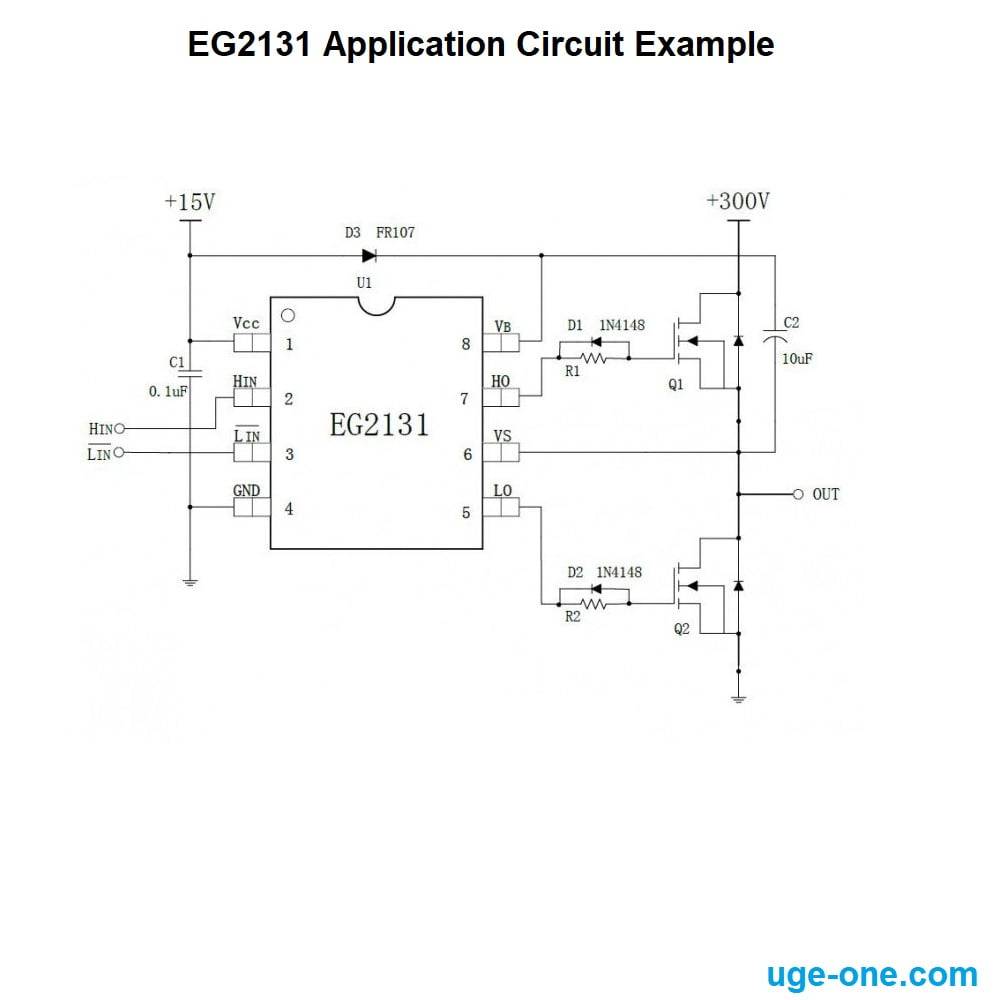

Chip description
EG2131 is a cost-effective high-power MOS tube and IGBT tube gate drive chip. It integrates a logic signal input processing circuit, a dead-time control circuit, an under voltage shutdown circuit, a latch circuit, a level shift circuit, and a pulse circuit. Filter circuit and output drive circuit, dedicated to the drive circuit in brushless motor controllers. The high-end operating voltage of EG2131 can reach 300V, the low-end Vcc power supply voltage range is wide from 11V to 20V, and the static power consumption is less than 100uA. The chip has a latch function to prevent the output power tubes from being turned on at the same time. The input channel HIN has a built-in 200K pull-down resistor. LIN It has a built-in pull-up 5V high potential, which keeps the upper and lower power MOS tubes in a closed state when the input is left floating. The output current capacity is IO+/-1/1.5A, and it is packaged in SOP8.
Features
-
- High-end suspended bootstrap power supply design, withstand voltage up to 300V
- Adapt to 5V, 3.3V input voltage
- The highest frequency supports 500KHZ
- Low-side VCC under voltage shutdown output
- Output current capability I O +/- 1A/1.5A
- Built-in dead zone control circuit
- It has a built-in latch function to completely prevent the upper and lower tube outputs from being turned on at the same time.
- HIN The input channel is active at high level and controls the high-end HO output .
- LIN The input channel is active at low level and controls the low-end LO output.
- Few peripheral components
- Package form: SOP-8
Application areas
-
- Mobile power high voltage fast charging switching power supply
- Electric vehicle controller
- Variable frequency water pump controller
- 300VStep-down switching power supply
- Brushless motor driver
- High voltage Class-D amplifier
please review datasheet here
Additional information
| Weight | 0.002 kg |
|---|
