Description

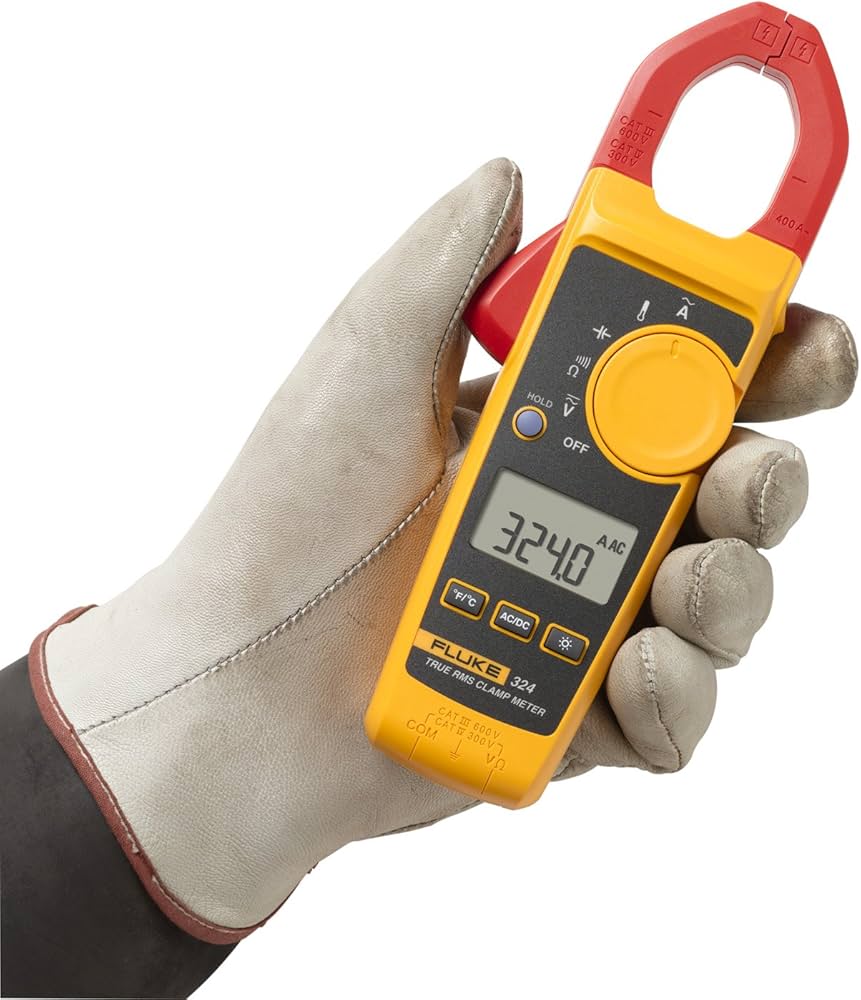

Fluke 324 True-RMS Clamp Meter
The Fluke 324 True-RMS Clamp Meter is a rugged and reliable electrical test instrument designed for professional electricians, HVAC technicians, and maintenance engineers. Featuring True RMS technology, it provides highly accurate AC current and voltage measurements on both linear and non-linear loads. With added temperature and capacitance measurement, a large backlit display, and a compact ergonomic design, the Fluke 324 is ideal for troubleshooting, installation, and preventive maintenance in commercial and industrial electrical systems
Fluke 324 True-RMS Clamp Meter
- CAT III 600 V, CAT IV 300 V safety rating
- Provides True RMS AC voltage and current for accurate measurements on non-linear signals
- Measures AC current up to 400 A
- Measures AC/DC voltage to 600V
- Measures resistance to 4kΩ with continuity detection ≤ 30Ω
- Measures temperature from -10C to 400C
- Measures capacitance to 1000μF
- Backlight and hold function captures a reading on the display
- Comes with a two-year warranty and soft carrying case
| Specifications |
| AC current |
Range |
40.00 A / 400.0 A |
| Accuracy |
1.5% ± 5 digits (45 Hz to 400 Hz)
Note: Add 2% for position sensitivity |
| DC current |
Range |
– |
| Accuracy |
– |
| AC voltage |
Range |
600.0 V |
| Accuracy |
1.5% ± 5 digits |
| DC voltage |
Range |
600.0 V |
| Accuracy |
1.0% ± 5 digits |
| Resistance |
Range |
400.0 Ω/ 4000 Ω |
| Accuracy |
1.0% ± 5 digits |
| Continuity |
≤ 30 Ω |
| Capacitance |
0 to 100.0 μF / 100μF to 1000 μF |
| Frequency |
– |
| AC response |
True-RMS |
| Backlight |
Yes |
| Data hold |
Yes |
| Contact temperature |
-10.0°C to 400.0°C (14.0°F to 752.0°F) |
| Min/Max |
– |
| Size |
H x W x D (mm) |
207 x 75 x 34 |
| Max wire diameter |
30 mm (600 MCM) |
| Weight |
208 g |
| Category rating |
CAT III 600 V
CAT IV 300 V |
| Warranty |
one-year |
