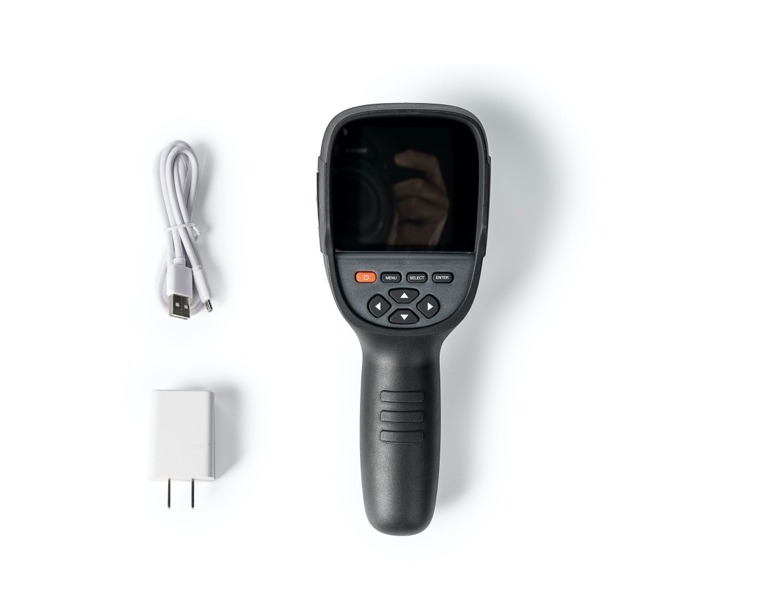

HTI HT 18+ Handheld Infrared Thermal Imager

Name: HTI HT 18+ Handheld Infrared Thermal Imager
SKU: TAR-ST-HTI HT 18+
Price: 65700.000 EGP
Availability: InStock

SKU: TAR-ST-HTI HT 18+

In Stock

EGP 65,700.000

In Stock

SKU: TAR-ST-HTI HT 18+ Categories: Test Equipment, Thermal Camera Tags: Handheld Infrared Thermal Imager, HTI HT 18+, HTI HT 18+ Handheld, HTI HT 18+ Handheld Infrared Thermal Imager, Infrared Thermal

Brand:HTI

HTI HT 18+ Handheld Infrared Thermal Imager

High Resolution & Fusion: Combines a $256 \times 192$ infrared thermal detector with a $640 \times 480$ visible-light camera for dual-spectrum image fusion.
Wide Temperature Range: Measures temperatures from $-20^\circ\text{C to }+550^\circ\text{C}$ ( $-4^\circ\text{F to }1022^\circ\text{F}$ ) with high thermal sensitivity ( $\le50\text{ mK}$ ).
Smooth & Dynamic Display: Features a fast $25\text{ Hz}$ frame rate and a 3.2-inch TFT full-angle color LCD screen.
Photo & Video Recording: Captures both JPG photos and MP4 videos stored directly on 8GB of internal memory.
Field-Ready Power: Equipped with 5 color palettes, USB Type-C connectivity, and a rechargeable 18650 Li-ion battery.

Description

HTI HT 18+ Handheld Infrared Thermal Imager

The HTI HT 18+ is an advanced handheld thermal imaging camera designed for non-contact temperature measurement, predictive maintenance, electrical inspection, and building diagnostics. Combining an upgraded $256 \times 192$ infrared detector with a $640 \times 480$ visible light camera, it offers dual-spectrum image fusion, onboard photo/video recording, and professional PC analysis software support.

HTI HT 18+ Handheld Infrared Thermal Imager

Key Features & Design Highlights

Dual-Spectrum Image Fusion: Merges high-resolution $256 \times 192$ thermal images with $640 \times 480$ HD visible-light images for enhanced detail and target identification.
Wide Temperature Range: Measures temperatures from $-20^\circ\text{C to }+550^\circ\text{C}$ ( $-4^\circ\text{F to }1022^\circ\text{F}$ ) with high thermal sensitivity ( $\le50\text{ mK}$ ).
5 Professional Color Palettes: Offers Rainbow, Iron Oxide Red, Cold Color, White Hot, and Black Hot display modes to suit varied field environments.
Fast 25Hz Refresh Rate: Delivers smooth real-time imaging without lag during dynamic inspections.
Video & Photo Capture: Records both static photos (JPG) and video clips (MP4) stored directly on the 8GB internal memory.
Ergonomic Handheld Build: Equipped with a 3.2-inch full-angle TFT color display, rechargeable 18650 Li-ion battery, and a modern USB Type-C interface.

Technical Specifications

Parameter	Specification
Infrared Resolution	$256 \times 192$ pixels ( $49,152$ measurement points)
Visible Image Resolution	$640 \times 480$ pixels ( $0.3\text{ MP}$ )
Thermal Sensitivity (NETD)	$\le50\text{ mK}$ ( $0.05^\circ\text{C}$ ) @ $25^\circ\text{C}$ , $\text{F}/1.0$
Field of View (FOV) / IFOV	$56^\circ \times 42^\circ$ / $3.75\text{ mrad}$
Temperature Measuring Range	$-20^\circ\text{C to }+550^\circ\text{C}$ ( $-4^\circ\text{F to }1022^\circ\text{F}$ )
Measurement Accuracy	$\pm2^\circ\text{C}$ or $\pm2\%$ of reading ( $-15^\circ\text{C to }+550^\circ\text{C}$ )
Image Frame Rate	$25\text{ Hz}$
Wavelength Coverage	$8\text{ }\mu\text{m to }14\text{ }\mu\text{m}$
Emissivity Adjustment	$0.01\text{ to }1.00$ (adjustable)
Display Screen	$3.2" \text{ TFT}$ full-angle color LCD screen
Storage & File Formats	Built-in $8\text{ GB}$ storage; JPG (Photos) / MP4 (Video)
Connectivity & Power	USB Type-C; $2000\text{ mAh}$ rechargeable $18650\text{ battery}$ ( $2\text{--}3\text{ hours}$ operating time)
Dimensions & Weight	$94.8 \times 89.2 \times 222.8\text{ mm}$ / $389\text{ g}$

Practical Applications

Electrical Inspection: Locating loose connections, overloaded circuits, hot spots, and breaker box faults.
Building & HVAC Diagnostics: Identifying insulation deficiencies, air leaks, floor heating pipe blockages, and moisture penetration.
Mechanical & Industrial Maintenance: Monitoring motor bearings, pumps, mechanical friction, and heat exchangers.
PCB & Electronics Troubleshooting: Detecting short circuits and overheating components on printed circuit boards.
