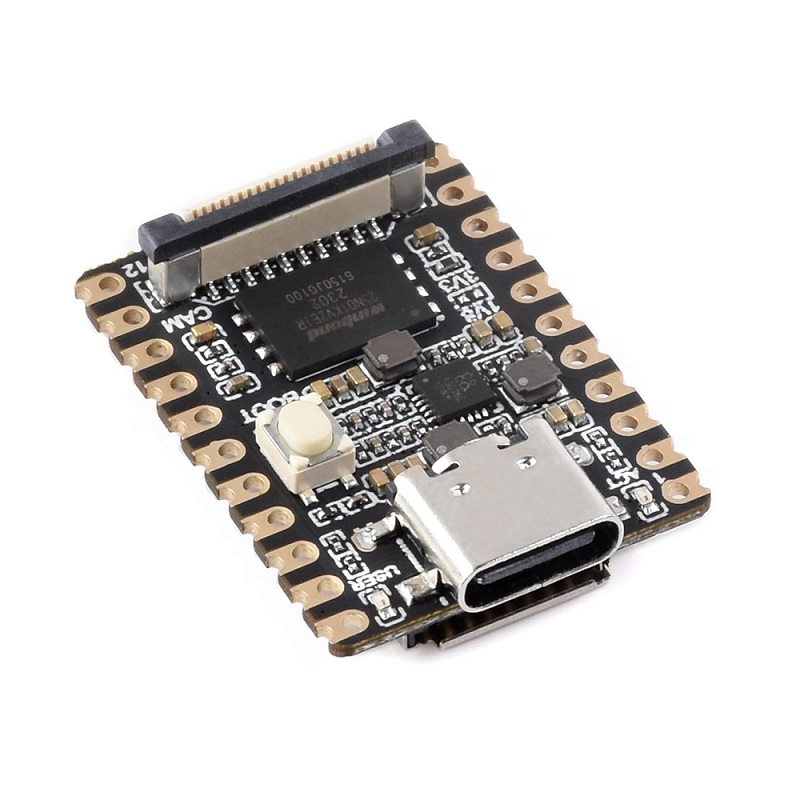

Luckfox Pico Mini B RV1103 Linux Micro Development Board

Description

The Luckfox Pico Mini B is a compact Linux development board built around the Rockchip RV1103 SoC . It’s specifically designed for AI vision applications, packing a surprising amount of processing power into a tiny footprint .

Here are the key specifications for the Luckfox Pico Mini B:

The RV1103 chip is designed for high integration and performance in AI and vision applications . Key features include:

• Integrated Processors: The chip combines a Cortex-A7 CPU for general processing, a 4th-generation NPU for AI acceleration (up to 1.0 TOPS with INT4), a powerful ISP for image processing, and a RISC-V MCU for low-power, fast-startup tasks .

• High Integration: The board integrates 64MB of DDR2 RAM, audio codec, and MAC PHY, minimizing the need for external components .

A key difference between the Mini A and Mini B variants is storage; the Mini A boots from a MicroSD card, while the Mini B has 128MB of onboard SPI NAND Flash
