PCB FOR ESP32-C6 USB Development Board

Description

PCB FOR ESP32-C6 USB Development Board

Product Description

This is a high-quality empty bare PCB designed specifically for the ESP32-C6 module, ideal for DIY electronics enthusiasts, makers, and embedded developers who prefer to assemble and customize their own hardware.

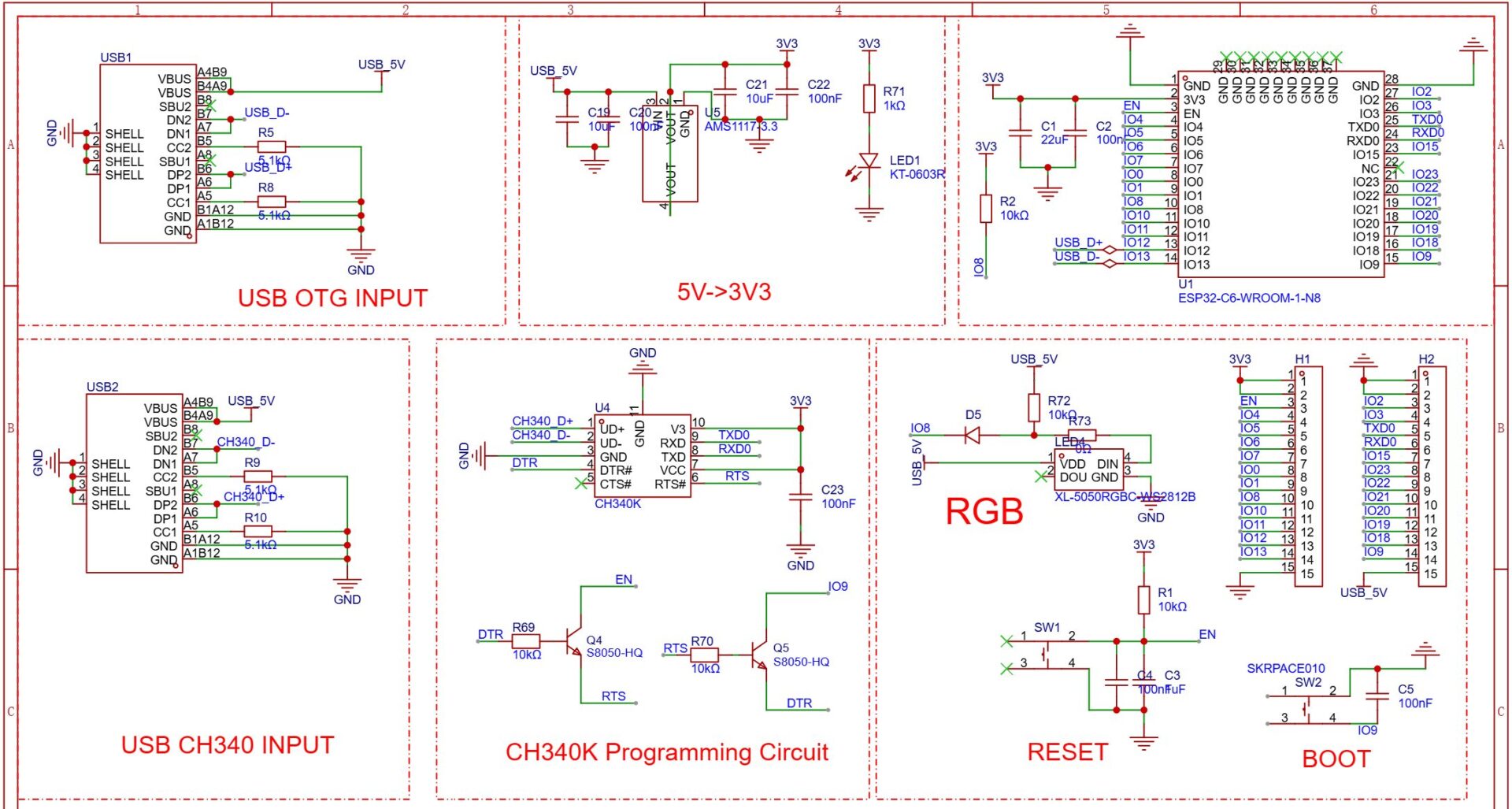

The board features a CH340K USB-to-UART interface with a fully automatic programming circuit, allowing easy firmware upload directly from a USB Type-C connector without manual boot or reset button combinations.

The PCB layout is optimized for easy hand-soldering, and the product is supplied with a clear assembly / soldering diagram to simplify the build process.

Key Features

• Designed for ESP32-C6 module

• Empty bare PCB – components not pre-assembled

• CH340K USB-to-UART converter

• Automatic boot & reset programming circuit

• USB Type-C connector for power and programming

• Onboard RGB LED (user programmable)

• All GPIOs clearly labeled on silkscreen

• Compact and breadboard-friendly layout

• Ideal for custom firmware development & prototyping

What’s Included

• ✔ ESP32-C6 empty bare PCB

• ✔ Soldering / assembly manual diagram

• ✔ Clear silkscreen component labels

❌ ESP32-C6 module, CH340K IC, and other components not included

Applications

• ESP32-C6 learning & experimentation

• Wi-Fi 6 / Bluetooth LE / Thread / Zigbee projects

• Custom IoT devices

• Educational and training projects

• Low-cost development board alternative

Power & Programming

• Powered directly via USB Type-C

• CH340K ensures wide OS compatibility (Windows / Linux / macOS)

• Automatic download mode—no button pressing required

Notes

• This product is intended for DIY soldering

• Requires basic SMD soldering skills

• Assembly documentation is provided for guidance
