SMA Female PCB Mount Right Angle

SKU: D3-27
In Stock
EGP 65.000 exc. vat
In Stock

SKU: D3-27 Category: Tags: , , , , , ,

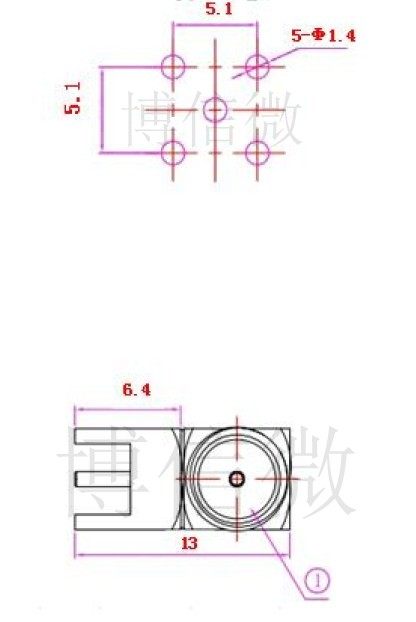

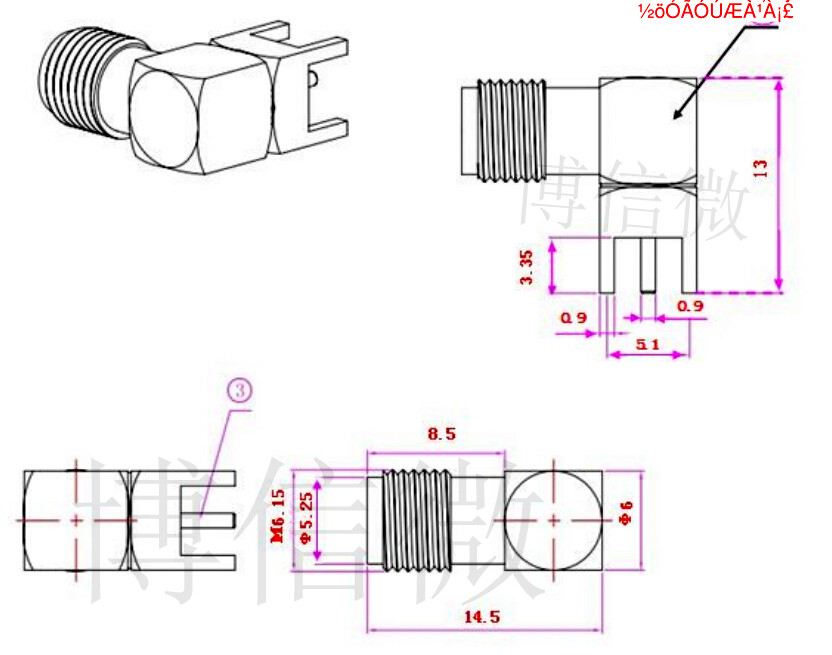

Description: SMA connectors are ideal for quick connects to high-frequency signal lines. This is a right-angle PCB mount connector and comes with a lock washer and nut.

Temperature range -65 ~ + 165 ° C (PE Cable -40 ~ + 85 ° C)
Vibration MIL-STD-202, Method 213
characteristic impedance of 50Ω
Frequency Range DC ~ 12.4GHz (semi-rigid cable 0 ~ 18GHz)
Working voltage 335V max (rms)
voltage 1000V rms (minimum sea level)
Contact resistance
inner conductor ≤ between milliohms 3
≤ between the outer conductor 2 mΩ
insulation resistance ≥ 5000 MΩ
insertion loss ≤0.15 dB / 6GHz
VSWR straight flexible cables ≤1.10 + 0.002f
semi-rigid cable ≤1.05 + 0.001f
curved flexible cables ≤1.20 + 0.003f
semi-rigid cable ≤1.10 + 0.001f
durability ≥500 times (cycles)

Hard gold-plated brass housing
pin brass gold plated
socket beryllium gold plated
elastic contact beryllium gold plated
insulator PTFE
crimping suite copper alloy nickel or gold plated
o-ring sealing 6146 silicone rubber

Additional information

Weight 0.005 kg
