Description
Overview
This 50-pin FPC/FFC connector is a compact, surface-mount connector designed for direct connection of flexible flat cables to PCBs.
It features a 0.5 mm contact pitch, upper-contact configuration, and a drawer/slide-lock mechanism for secure cable retention.
The horizontal, right-angle construction is suitable for space-constrained electronic designs and high-density board-to-display or board-to-board interconnections.

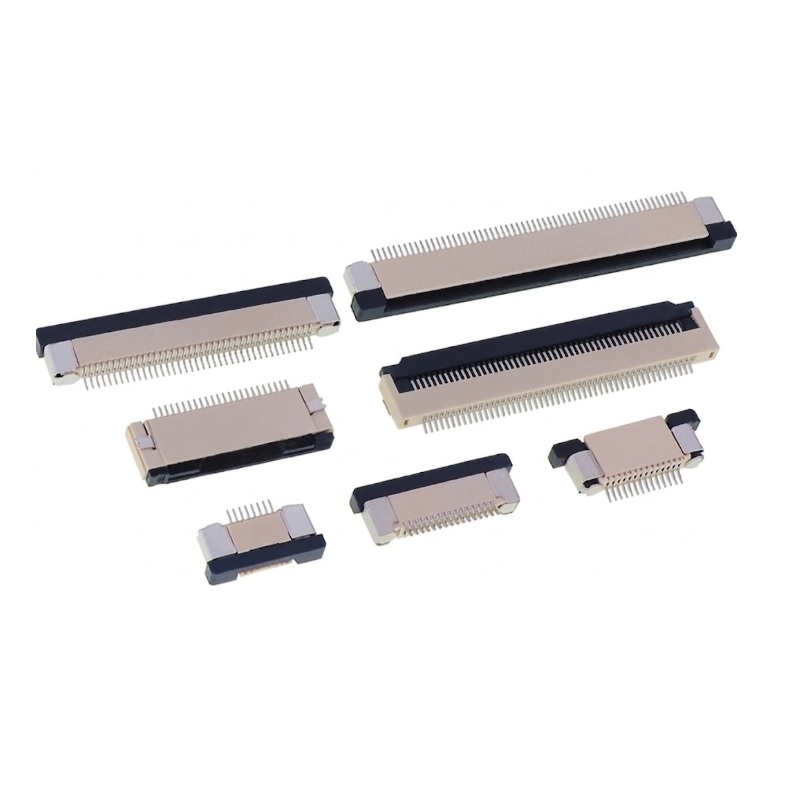

The connector style shown is commonly used for displays, cameras, embedded controllers, and other compact electronic assemblies.
Key Features
- 50-pin / 50-contact FPC/FFC connector
- 0.5 mm contact pitch
- Upper-contact configuration
- Drawer-type / slide-lock mechanism
- Horizontal, right-angle PCB mounting
- Surface Mount Technology (SMT/SMD)
- Compact low-profile design
- Designed for flexible FPC/FFC cable connections
- Suitable for high-density signal connections
- Commonly used with displays, cameras, embedded systems, and other compact electronics
Technical Specifications
| Specification |
Details |
| Connector Type |
FPC / FFC Female Connector |
| Number of Contacts |
50 Pins |
| Contact Pitch |
0.5 mm |
| Contact Type |
Upper Contact |
| Locking Mechanism |
Drawer / Slide Lock |
| Cable Insertion |
Horizontal |
| Mounting Type |
SMD / SMT |
| Orientation |
Right Angle / Horizontal |
| Application |
FPC / FFC Flexible Flat Cable |
| Connector Style |
ZIF-style locking connector |
| PCB Mounting |
Surface Mount |
Similar 50-pin, 0.5 mm-pitch upper-contact slide-lock connectors are commonly specified for 50 V / 0.5 A, with operating temperature ranges depending on the exact manufacturer and series.
Note: Electrical ratings, supported FPC thickness, connector height, and exact dimensions should be confirmed against the specific part number before publishing them as guaranteed specifications.
Power & Programming
Not applicable. This is a passive FPC/FFC connector and does not contain any active electronic components.
Applications
- TFT and LCD display connections
- Camera modules
- Touchscreen interfaces
- Embedded development boards
- Portable electronics
- Consumer electronics
- Industrial control equipment
- Compact PCB-to-FPC interconnections
- High-density signal and data connections
What’s Included
- 1 × 50-Pin 0.5 mm Pitch SMD FPC Female Connector
Notes
- This connector uses a fine 0.5 mm pitch, so careful PCB assembly is recommended.
- Make sure the FPC cable has the correct contact orientation and thickness for an upper-contact connector.
