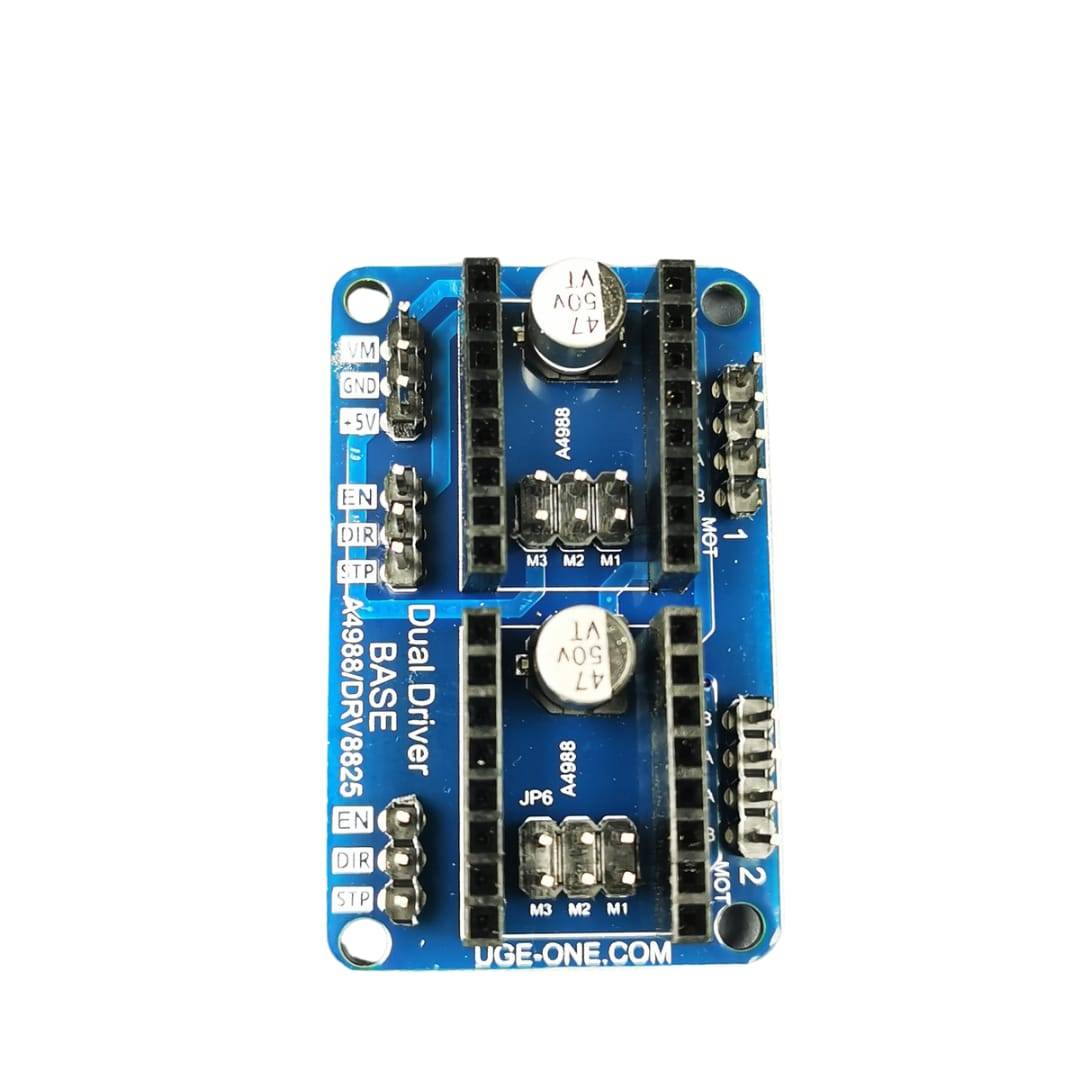

Tiny A4988 DRV8825 Extension Dual Driver Board for Stepper Motor Nema17

Description

Tiny A4988 DRV8825 Extension Dual Driver Board for Stepper Motor Nema17

product description

          1. A4988/DRV8825 can be used, pay attention to the direction when inserting, otherwise the driver may be burned.

          2.  pin header 2x3P for selection the 16 subdivision (A4988) or 32 subdivision (DRV8825).

          3.  pin header 1x4P connected to the motor cable .

          4.  pin header 1x3P to connect GND/5V/Vm .

          5. signal pin header for DIR/STP/EN.

Special Reminder
     Pay Attention to the direction when installing, otherwise it may burn the driver or even the motherboard.
