Description

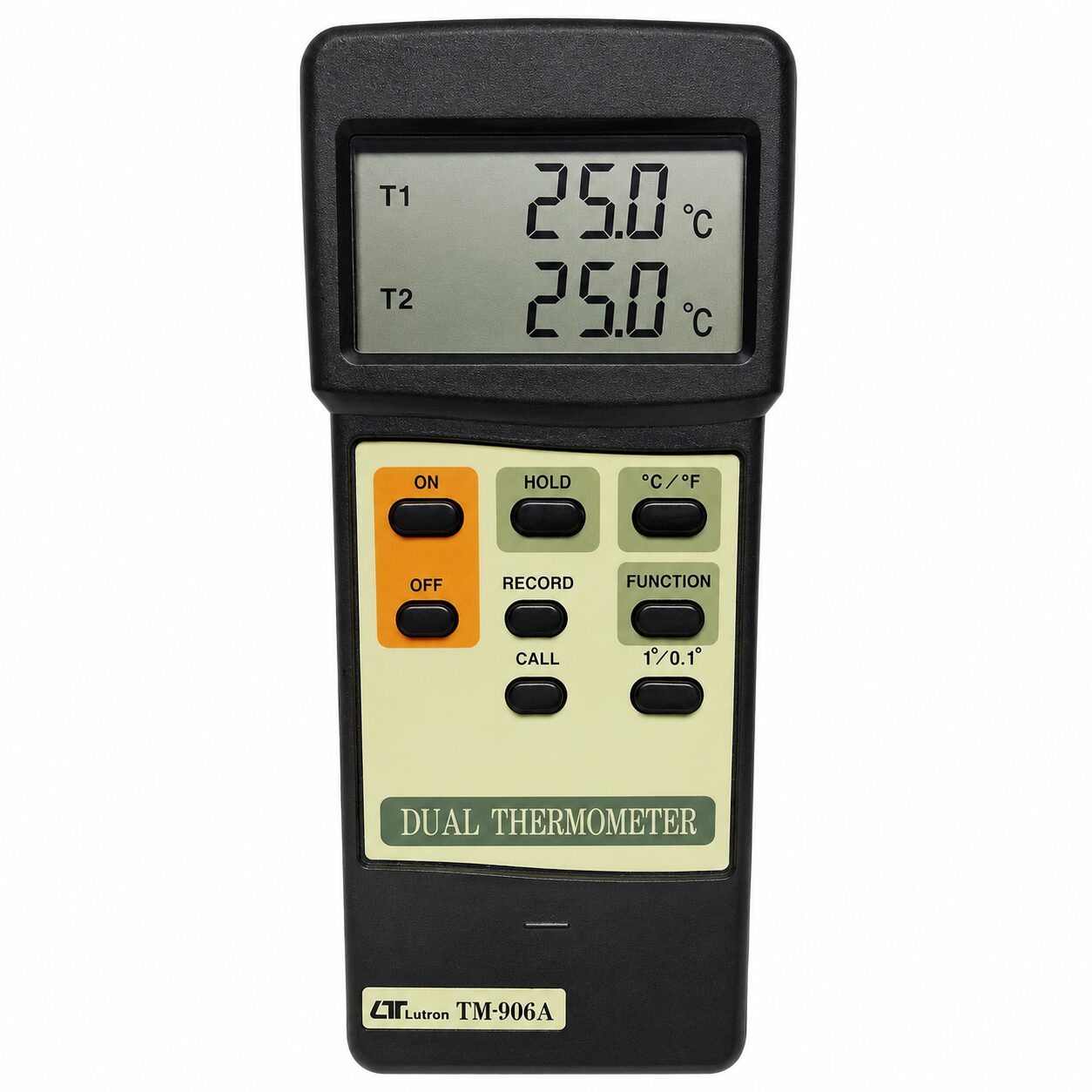

TM-906A Dual Thermometer
The TM-906A Dual Thermometer is a professional dual-channel digital thermometer designed for accurate temperature measurement using Type-K thermocouples. It supports simultaneous dual-input monitoring (T1/T2), differential temperature measurement (T1-T2), data hold, max/min memory recall, and RS-232 PC connectivity, making it ideal for industrial, laboratory, HVAC, and maintenance applications
TM-906A Dual Thermometer
Key Features
- Dual temperature input channels (T1 / T2)
- Differential temperature measurement (T1-T2)
- Wide measuring range: -50°C to 1230°C
- Supports Type-K thermocouple probes
- Large dual LCD display
- High accuracy microprocessor design
- Data Hold function
- Max / Min memory recall
- °C / °F selectable
- RS-232 PC interface
- Auto power off
- Low battery indicator
- Compact handheld design
Technical Specifications
| Parameter |
Specification |
| Model |
TM-906A |
| Sensor Type |
Type-K Thermocouple |
| Temperature Range |
-50°C to 1230°C |
| Fahrenheit Range |
-58°F to 1999°F |
| Resolution |
0.1°C / 1°C |
| Accuracy |
±(0.75% + 1°C) |
| Display |
Dual LCD Display |
| Functions |
T1, T2, T1-T2 |
| Sampling Time |
Approx. 0.8 – 1 sec |
| Data Output |
RS-232 Interface |
| Power Supply |
9V Battery |
| Power Consumption |
Approx. 6.2 mA |
| Operating Temperature |
0°C to 50°C |
| Dimensions |
180 × 72 × 32 mm |
| Weight |
Approx. 275 g |
Applications
- HVAC systems
- Industrial maintenance
- Laboratory testing
- Electronic troubleshooting
- Thermal monitoring
- Process control systems
Brand
Lutron Electronic Enterprise Co., Ltd.
Lutron Electronic Enterprise Co., Ltd. was established in 1976 and has been the Taiwan's leading manufacturer in the fields of Test & Measurement Instruments for more than 40 years. Nowadays, there are about 120 employees in our company, and the factory's building size is around 6,410 square meters / 69,000 feet.
Lutron Electronic Enterprise Co., Ltd.
