Description

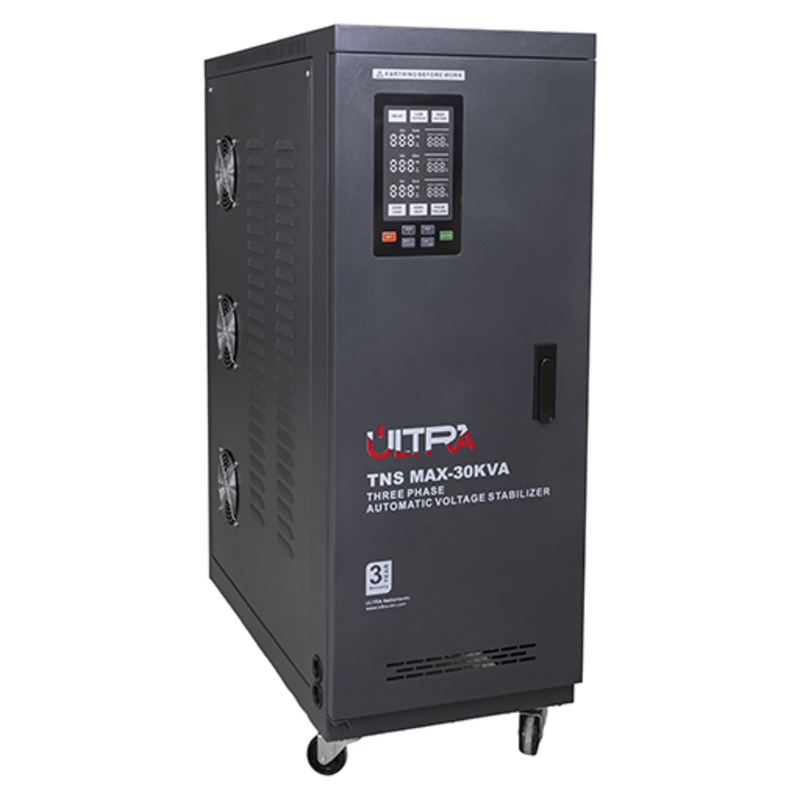

ULTRA TNS MAX 30kVA Three Phase Automatic Voltage Stabilizer
The ULTRA TNS MAX 30kVA Three Phase Automatic Voltage Stabilizer is a premium servo-controlled voltage regulation solution engineered to deliver stable and reliable three-phase power for industrial, commercial, and large residential applications. Designed to automatically compensate for voltage fluctuations, it maintains a constant 380V output, protecting valuable equipment from under-voltage, over-voltage, phase failure, overload, and unstable power conditions. Its intelligent digital control system, high efficiency, and rugged construction ensure continuous, long-term operation in demanding environments.
ULTRA TNS MAX 30kVA Three Phase Automatic Voltage Stabilizer
Key Features
- 30kVA (24kW) Three-Phase Capacity
- Wide Input Voltage Range: 260–450V AC
- Stable Output Voltage: 380V ±3%
- Advanced Servo Motor Voltage Regulation
- Digital LCD Display for real-time monitoring
- High Efficiency: >96%
- Fast Voltage Correction Speed
- Over Voltage & Under Voltage Protection
- Overcurrent Protection
- Phase Failure Protection
- Neutral Failure Protection
- Over Temperature Protection
- Built-in Delay Function
- Continuous Duty Operation
- Industrial-Grade Metal Cabinet with Forced Air Cooling
Applications
Ideal for protecting sensitive and high-value electrical equipment, including:
- Industrial Machinery
- Manufacturing Plants
- CNC Machines
- Medical Equipment
- Commercial Buildings
- Data Centers & Server Rooms
- Elevators & HVAC Systems
- Water Pumps
- Laboratories
- Large Villas & Commercial Facilities
Technical Specifications
| Specification |
Value |
| Model |
TNS MAX-30kVA |
| Rated Capacity |
30kVA (24kW) |
| Phase |
Three Phase |
| Input Voltage |
260–450V AC |
| Output Voltage |
380V AC |
| Output Accuracy |
±3% |
| Frequency |
50Hz / 60Hz |
| Efficiency |
>96% |
| Cooling |
Fan Cooling |
| Protection Rating |
IP21 |
| Operating Temperature |
-25°C to +45°C |
| Installation |
Indoor |
Why Choose ULTRA TNS MAX 30kVA?
The ULTRA TNS MAX 30kVA combines high-precision voltage stabilization with comprehensive electrical protection to ensure uninterrupted operation of critical equipment. Its wide input range, intelligent protection system, and durable industrial design make it the ideal solution for environments where stable power and equipment reliability are essential. Built for continuous operation, it helps extend equipment lifespan, minimize downtime, and improve overall system performance.
