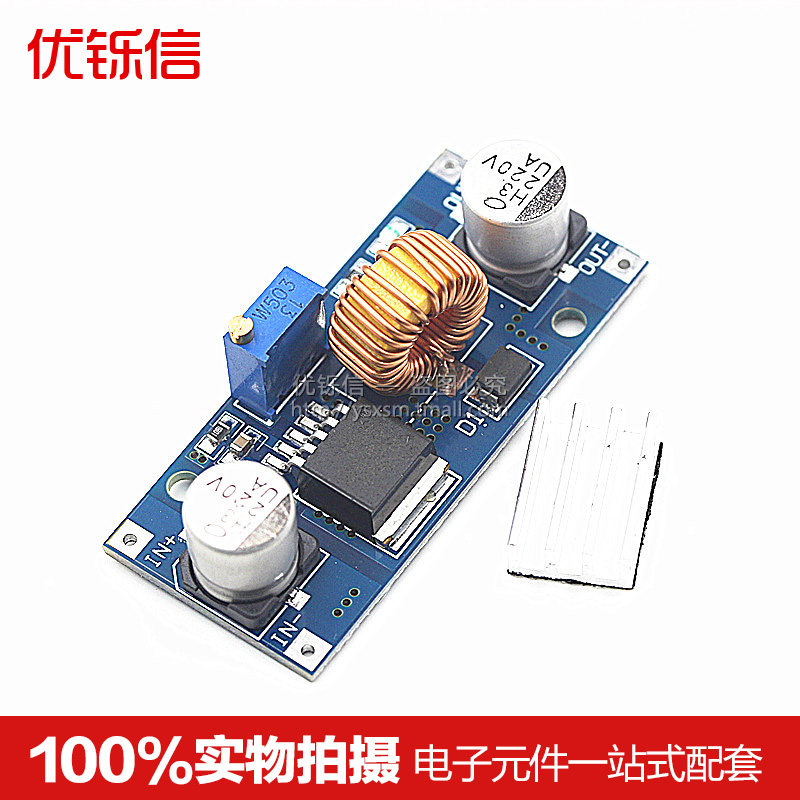

XL4005 5A 5-32V 75W Adjustable DC-DC Step Down Converter Module

Description

Module Highlights: 5A  High Power High Efficiency Low Ripple Power Indicator with Heat Sink!

Module performance and features:

Modular nature: Non-isolated buck module ( BUCK )

Input voltage : 4-38V ( input should try not to exceed 38V )

Output voltage: 1.25-36V continuously adjustable

Output current: 0-5A , recommended for use within 4.5A .

Output power: recommended in the use of 75W , more than 50W please add heat sink.

Operating temperature: -40 ~ +85 degrees

Operating frequency: 180KHz

Conversion efficiency: up to 96% (efficiency and input, output voltage, current, pressure related)

Load regulation: S ( I ) ≤ 0.8%

Voltage regulation: S ( u ) ≤ 0.8%

Power indicator: Yes

Short circuit protection: Yes (limit current 8A)

Over-temperature protection: Yes (over-temperature automatically turn off the output)

Input Reverse Protection: None, (if required, enter the high-current diode in the input string)

Installation: 2 Ke 3mm screws

Wiring method: welding, V-IN for the input, V-OUT for the output

Module size: length 54mm wide and 23mm high 18mm
