Description
3S Lithium LiFePO4 Battery Charger Protection Module BMS 100A 12.6V

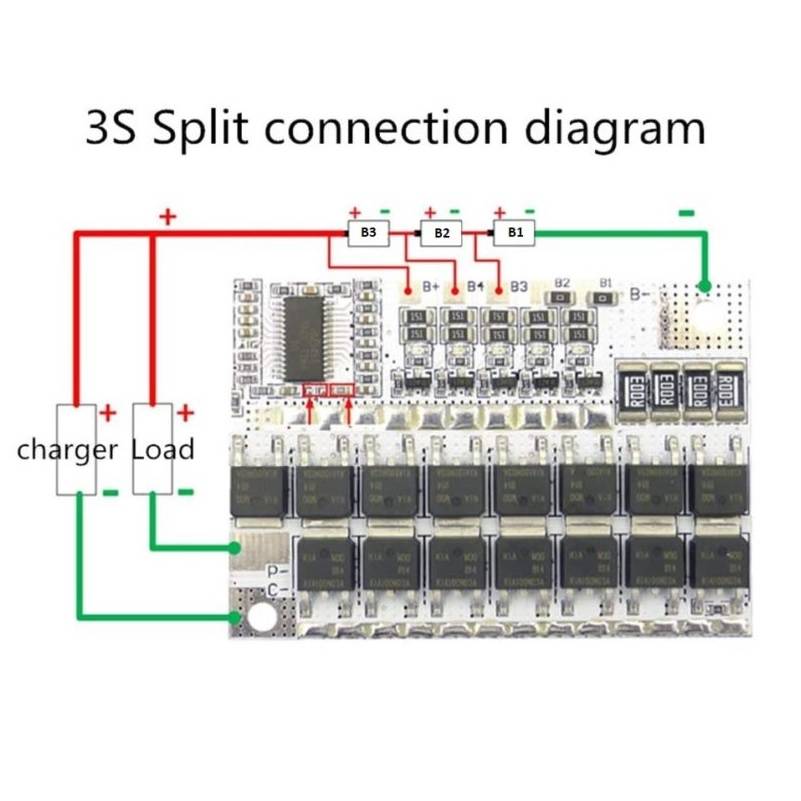

This protection board is 3s in common use lithium battery protection board (you can adjust for how many strings to be used) Specified chip, stable performance, support disconnection protection, over-current protection, over-discharge protection, overcharge protection, with balance, etc. A common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tubes (discharge of 8, charging 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharges current 80A, charging current 60A.
Features:
- Temperature protect: Yes
- Disconnect protect: Yes
- Shortage protection: Yes
- Shortage delay: 100-600 uS
- Shortage protect recovery: YES
- Charging Current: 60A
- Current Balance: Yes
| Single-cell battery overcharge protect voltage: |
4.21-4.29 V |
| Single-cell battery overcharge protect recover voltage: |
4.14-4.24V |
| Overcharge protect delay |
1.5-2.5S |
| Single-cell battery over-discharge protect voltage: |
2.72-2.88 V |
| Overcharge protect Current |
100A |
| Over-discharge protect Current |
100A |
| Over-discharge protect delay |
0.5-1.5S |
| Temperature protect |
Yes |
| Disconnect protect |
Yes |
| Shortage delay |
100-600 uS |
| Charging Current |
60A |
| Ampere balance (Current) |
60MA |
| Voltage balance accuracy |
4.14-4.24V |
| Shipping Weight |
0.015 kg |
| Shipping Dimensions |
8 × 7 × 1 cm |
