Description
4‑in‑1 USB Breakout Board – Tap Into Any USB Type with Ease!
Need to access USB lines quickly for testing, prototyping, or power delivery? This neat little breakout board from PMD Way gives you four popular USB connectors in one compact PCB, plus convenient solder pads for voltage and data lines.
Whether you’re working with USB‑A, micro‑USB, USB‑C, or need a USB‑A plug for direct connections, this board has you covered. It’s the perfect tool for any electronics workbench.
Key Features
-

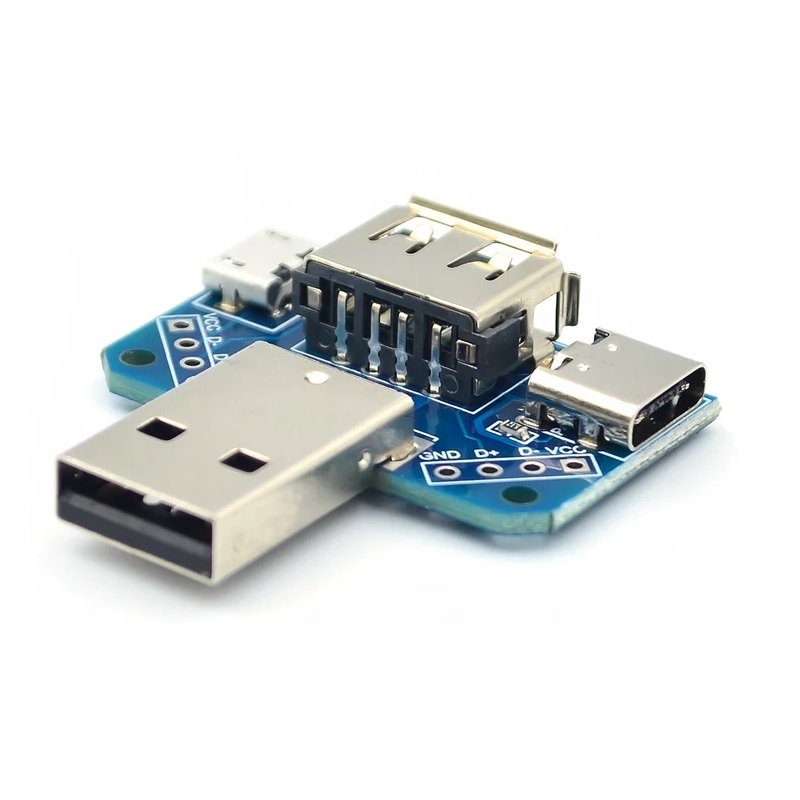

4 USB connectors in 1 board – USB‑A plug, USB‑A socket, micro‑USB socket, USB‑C socket
-

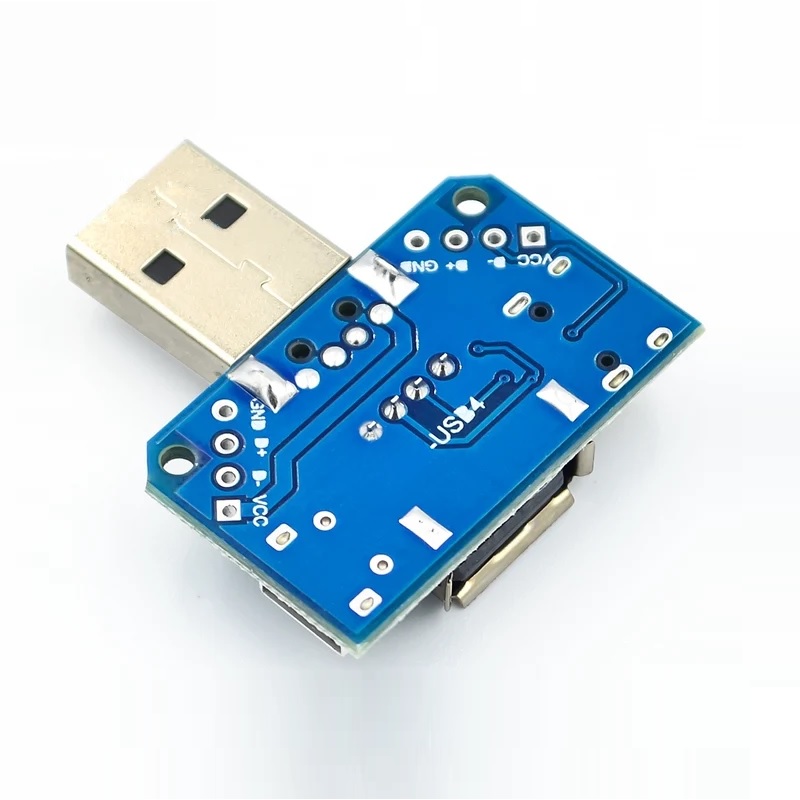

Pre‑routed PCB pads – easily solder to voltage (VCC, GND) and data (D+, D‑) lines
-
Compact and breadboard‑friendly – fits neatly on your workbench or in a project box
-
Ideal for – USB power monitoring, signal tapping, device prototyping, and cable testing

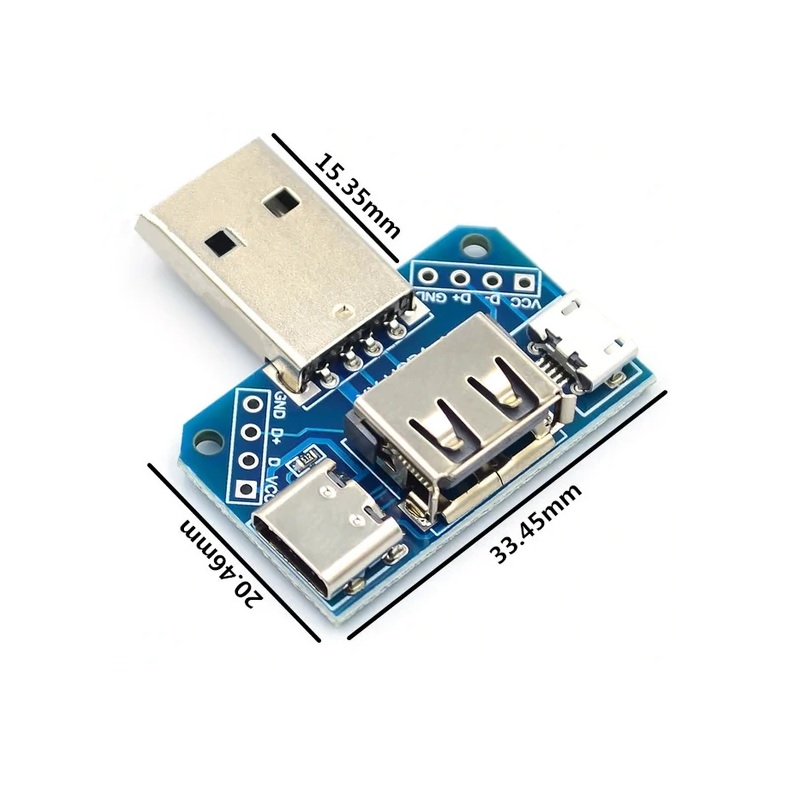

Board Dimensions (from actual PCB footprint)
(Actual product may vary slightly – dimensions for reference)
What’s Included
Perfect For
-
USB power and data tapping
-
Prototyping USB devices
-
Testing USB cables and connectors
-
DIY USB hubs or adapters
-
Embedded systems and Arduino projects
-
Debugging USB communication
Quick Usage Guide
-
Choose the USB connector you need (plug or socket)
-
Solder wires to the labelled pads: VCC, GND, D+, D‑
-
Plug in your USB device or cable – and you’re ready to go!
Note
Use within USB voltage and current specifications. Always double‑check your wiring before powering up to avoid damage to your devices.
Available in Bulk
Need more than one? Contact us for wholesale pricing and bulk orders.
