Description
This is a Network Management Card 3 (NMC3) with Environmental Monitoring, secure remote UPS monitoring and management.
Key Specifications :
| Parameter |
Specification |
| Model |
AP9641 |
| Product |
UPS Network Management Card 3 (NMC3) |
| Function |
Remote UPS monitoring and management |
| Environmental Monitoring |
Yes |
| Network Interface |
Gigabit Ethernet |
| Protocols |
HTTPS, SSH, SNMP v1/v2c/v3, Modbus TCP/IP, Modbus RTU, BACnet/IP, FTP, SCP, Syslog |
| USB Ports |
2 |
| Universal I/O Ports |
2 |
| Temperature Sensor |
Included |
| Optional Sensors |
AP9335T / AP9335TH |
| Authentication |
RADIUS and other security protocols |
| IPv4 / IPv6 |
Supported |
| Height |
3.8 cm |
| Width |
12.1 cm |
| Depth |
11.4 cm |
| Weight |
0.09 kg |
| Operating Temperature |
0–45 °C |
| Operating Humidity |
0–95% RH |
| Operating Altitude |
Up to 10,000 ft |
The AP9641 allows an APC UPS to be monitored and managed remotely over the network, including real-time status, event logs, notifications, UPS control, and environmental monitoring.
Environmental Monitoring :
The AP9641 supports temperature and temperature/humidity sensors through its Universal I/O ports. It can also work with the AP9810 Dry Contact I/O Accessory for contact inputs and relay output.
Important: Compatibility depends on the exact UPS model. Schneider Electric provides an official compatibility chart for AP9640/AP9641/AP9643 and other NMC cards.
If you tell me your UPS model (for example SRT3000XLI, SRTG, SMX, etc.), I can check whether AP9641 is compatible with it.

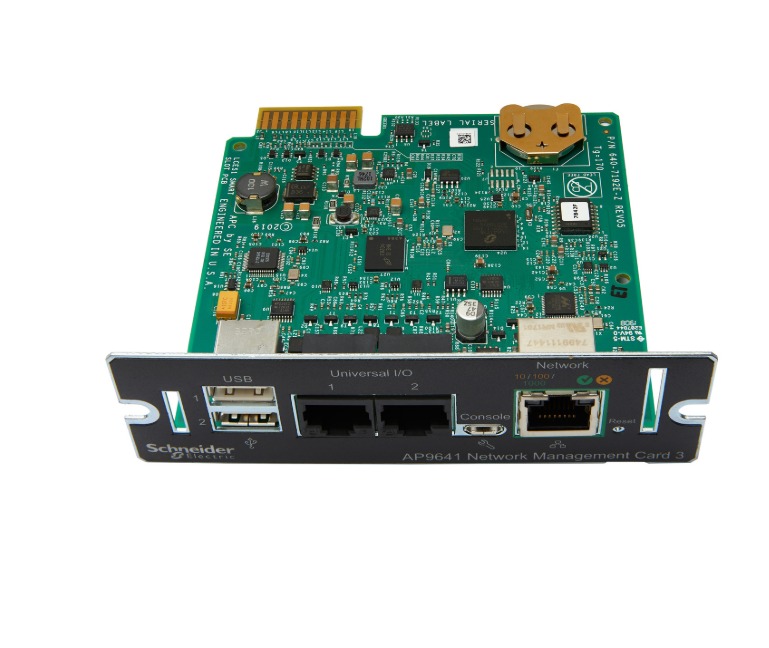

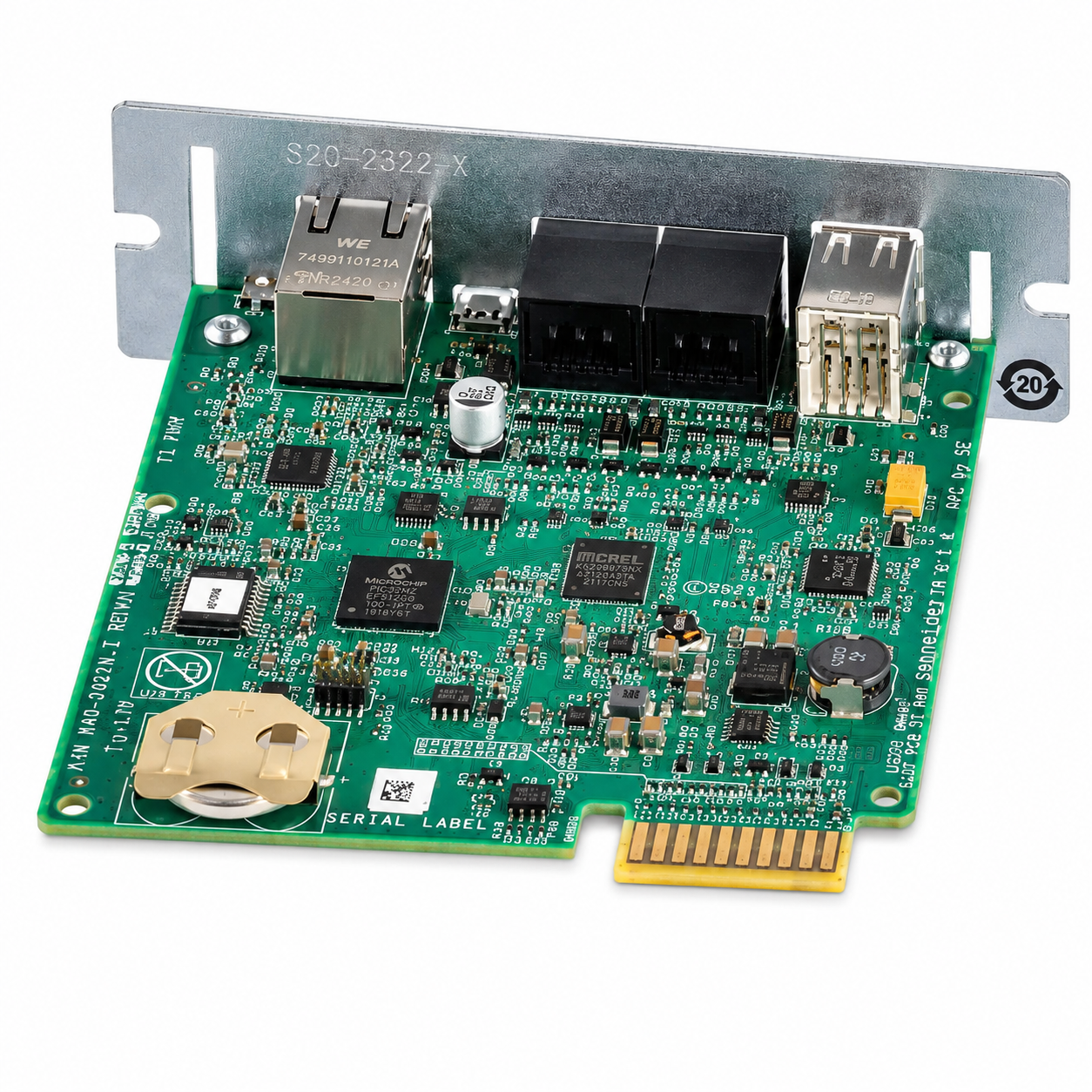

APC AP9641 Network Management Card 3
-provides secure remote monitoring and management of compatible UPS systems over a network.
-with real-time event notifications, detailed data and event logging, and environmental monitoring capabilities.
-It is designed to support reliable operation and maximize UPS system uptime.
