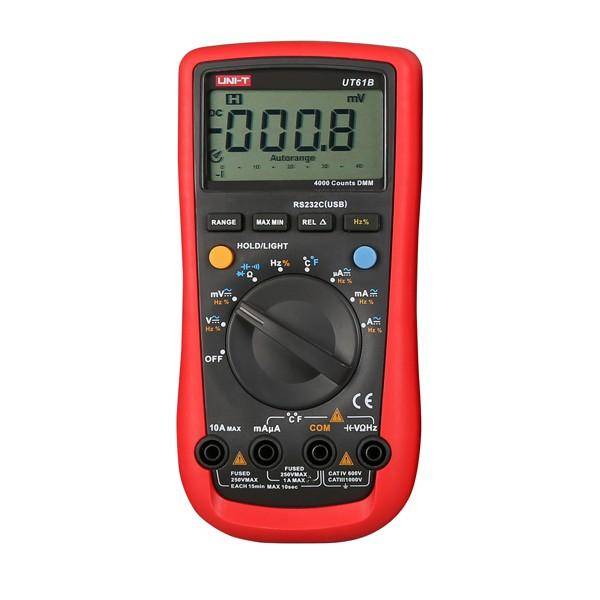

Digital Multimeter UNI-T UT-61B (UT61B)

Description

Features:
Display Count: 4000
Auto Range: √
Manual Range: √
Bandwidth (Hz): 45Hz ～400Hz
Duty Cycle: 0.1% ～ 99.9%
Diode: √
Auto Power Off: Around 15 Minutes
Continuity Buzzer: √
Low Battery Indication: ≤7.5V √
Data Hold: √
Relative Mode: √
MAX/MIN: √
RS-232: √
LCD Backlight: √
Analogue Bar Graph: 41
Input Protection: √
Input Impedance for DCV: Around 10MΩ

Specifications:
Model: UT61B
DC Voltage (V): 40mV/400mV/4V/40V/400V/1000V ±(0.5%+1)
AC Voltage (V): 40mV/400mV/4V/40V/400V/750V ±(1%+3)
DC Current (A): 400μA/4000μA/40mA/400mA/4A/10A ±(1%+2)
AC Current (A): 400μA/4000μA/40mA/400mA/4A/10A ±(1.2%+5)
Resistance (Ω): 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1%+2)
Capacitance (F): 40nF/400nF/4μF/40μF/400μF/4000μF ±(3%+5)
Frequency (Hz): 10Hz-10MHz ±(0.1%+4)
Temperature (°C): -40 °C ～ 1000°C ±(1.2%+3)
Temperature (°F): -40°F～1832°F ±(1.2%+4)

General Characteristic:
Power: 9V Battery（6F22) （not included)
LCD Size: 65mm * 43 mm
