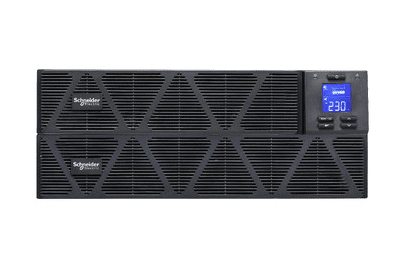

Easy UPS 1 Ph On-Line, 6kVA/6kW, Rackmount 4U, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, W/ rail kit

Description

• Specifications

  Overview

  Presentation	For small to medium businesses, Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
  Lead time	Usually in Stock

  Main

  Run time for load W information_stroke Min-max: 600-6000 W	4min 1s
  Max. Capacity Used information_stroke	100 %
  Main Input Voltage	230 V
  Product or component type	Uninterruptible power supply (UPS)
  Other Input Voltage	220 V 240 V
  Main Output Voltage	230 V
  Other Output Voltage	220 V 240 V
  Rated power in W	6000 W
  Rated power in VA	6000 VA
  Output connector type	Hard wire 3-wire (1P + N + E) 1
  number of rack unit	4U
  Provided equipment	1 USB cable 1 RS-232 configuration cable 2 rack mounting brackets 2 rack mounting support rails 1 external battery pack 1 battery cable user manual
  Range of product	Easy UPS 1Ph On-Line

  Batteries & Runtime

  Run Time	View Runtime Graph
  Efficiency	View Efficiency Graph
  Battery type	Lead-acid battery
  Battery voltage	192 V
  Number of battery filled slots	0
  Number of battery free slots	0
  Battery recharge time	4 h
  Battery life	3…5 year(s)
  Battery charger power	235 W rated

  General

  Number of power module filled slots	0
  Number of power module free slots	0
  Redundant	No

  Physical

  Colour	Black (RAL 7010)
  Height	17.3 cm
  Width	43.8 cm
  Depth	71.0 cm
  Net weight	61 kg
  mounting location	Front
  Mounting preference	Lower
  mounting mode	Rack-mounted
  USB compatible	Yes
  mounting position	Horizontal

  Input

  Input voltage limits	110…300 V half load 176…300 V full load
  Number of input connectors	1 hard wire 3-wire (1P + N + E)
  Network frequency	40…70 Hz auto sensing

  Output

  Maximum configurable power in VA	6000 VA
  Maximum configurable power in W	6000 W
  Output frequency	50/60 Hz +/- 3 Hz sync to mains
  Harmonic distortion	1 %
  UPS type	Double conversion online
  Wave type	Sine wave
  Efficiency	94 % (full load)
  Additional information	Configurable for 220 : 230 or 240 nominal output voltage
  Bypass type	Internal bypass (automatic and manual)
  Crest factor	3 : 1

  Conformance

  product certifications	CE UKCA
  Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

  Environmental

  Ambient air temperature for operation	0…40 °C
  Relative humidity	0…95 % non-condensing
  Operating altitude	0…3000 m
  Ambient air temperature for storage	-15…60 °C
  Storage Relative Humidity	0…95 % non-condensing
  Storage altitude	0…15000 m
  acoustic level	55 dBA
  Heat dissipation	1172 Btu/h
  IP degree of protection	IP20

  Communications & Management

  Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  Emergency power off	Yes
  Free slots	1
  Control panel	Multifunction LCD status and control console

  Surge Protection and Filtering

  Surge energy rate	600 J

  Packing Units

  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	48.5 cm
  Package 1 Width	60 cm
  Package 1 Length	83.6 cm
  Package 1 Weight	71 kg

  Contractual warranty

  Warranty	2 years repair or replace
