Description

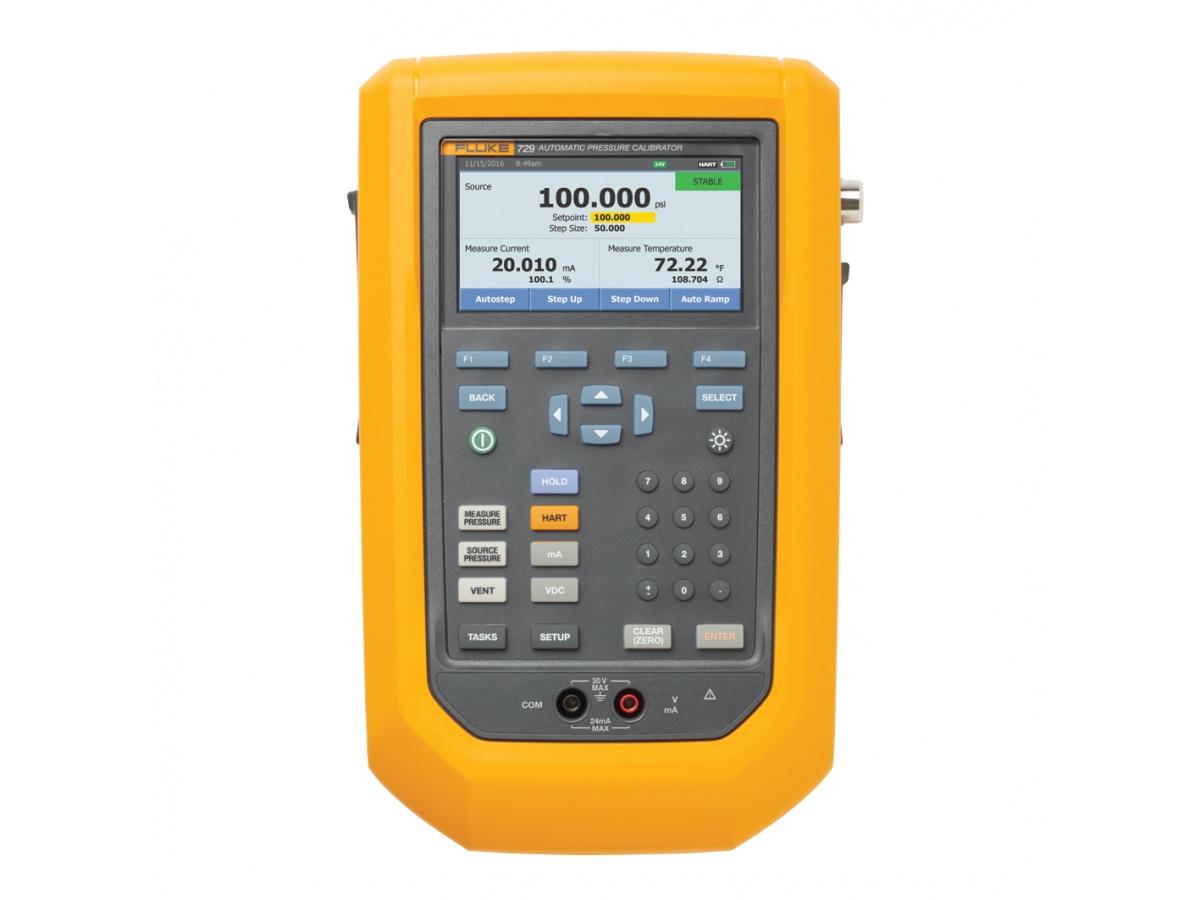

The Fluke 729 300G Automatic Pressure Calibrator is a portable automatic pressure calibration tool designed to simplify the calibration of pressure transmitters, pressure switches, and process instrumentation. Its built-in electric pump automatically generates and regulates pressure, eliminating the need for manual pumping and fine adjustment.
The 729 300G provides automatic pressure generation up to 300 psi (20 bar), built-in HART communication, 4–20 mA measurement, sourcing and simulation, and automatic documentation of calibration results.
Key Features:
- Automatic pressure generation and regulation
- Built-in electric pressure pump
- Pressure Range: -12 to 300 psi
- Pressure Range: -0.8273 to 20.6843 bar
- Pressure Range: -82.73 to 2068.43 kPa
- Pressure Specification: 0.02% of full scale
- Pressure Control Specification: 0.005% of full scale minimum
- Automatic fine pressure adjustment and stabilization
- Built-in HART communication
- Automatic pressure transmitter calibration
- Automatic pressure switch testing
- Automatic multi-point calibration testing
- Automatic documentation of test results
- Measures, sources and simulates 4–20 mA signals
- mA Range: 0 to 24 mA
- mA Resolution: 1 µA
- DC Voltage Measurement: 0 to 30 V DC
- Voltage Resolution: 1 mV
- Electrical Accuracy: 0.01% ±2 LSD
- 24 V loop power supply
- RTD temperature measurement support
- Compatible with DPCTrack2™ Calibration Management Software
- Rugged portable design
- Protection Rating: IP54
- Operating Temperature: -10°C to 50°C for measurement
- Weight: 2.95 kg
- Model: FLK-729 300G
- Fluke Part Number: 4856976
- Wireless Communication: No
Applications:
- Pressure Transmitter Calibration
- Pressure Switch Testing
- Process Instrument Calibration
- HART Transmitter Calibration and Troubleshooting
- 4–20 mA Loop Testing
- Preventive Maintenance
- Industrial Process Control and Maintenance
What’s Included:
- Fluke 729 Automatic Pressure Calibrator
- Li-Ion Battery Charger and Adapters
- Quick-Connect Pressure Fitting, Hose and Adapter Starter Kit
- Stackable Test Leads
- AC280 SureGrip™ Hook Clips
- AC175 Alligator Clips
- TP220 Test Probes
- USB Communication Cable
- TPAK ToolPak™ Magnetic Meter Hanger
- Carrying Case with Shoulder Strap and Accessories Pouch
- DPCTrack2™ Trial Calibration Management Software
- Traceable Certificate of Calibration
- Quick Reference Guide
